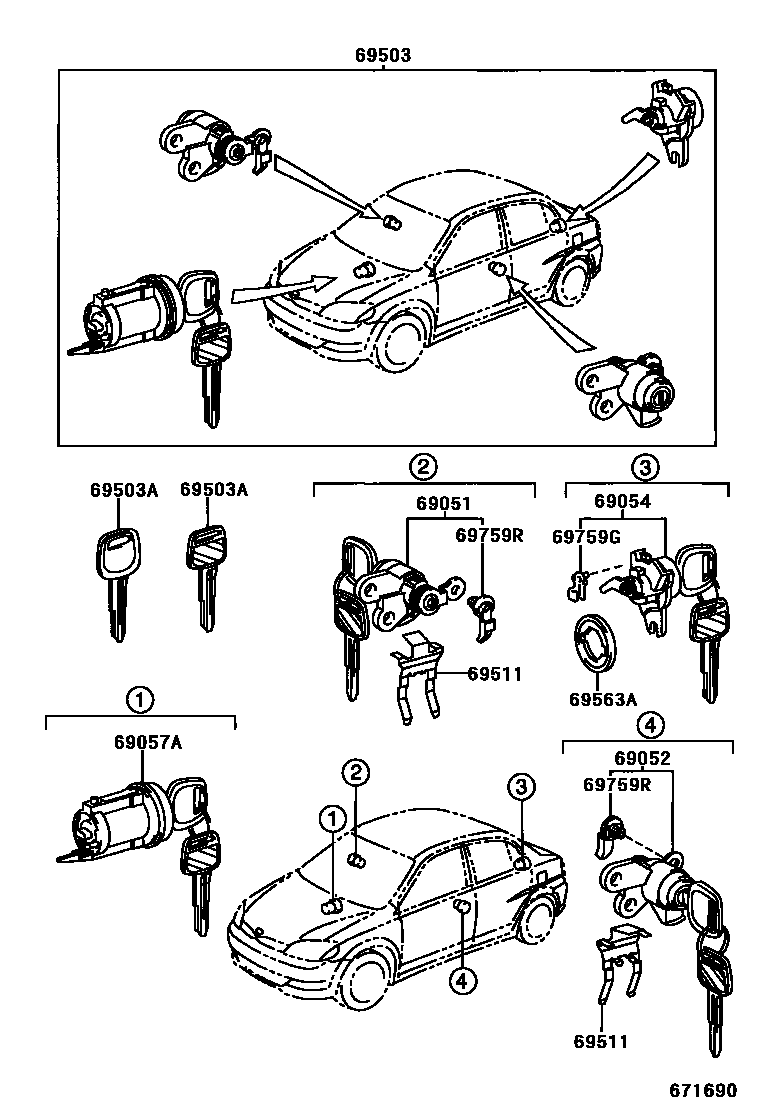

Toyota ECHO — LOCK CYLINDER SET

69051CYLINDER & KEY SET, DOOR LOCK, RH

main69051-52110iNCP12199908-200208

main69051-52210iNCP12200208-200602

69052CYLINDER & KEY SET, DOOR LOCK, LH

main69052-52040iNCP12199908-200208

sub69052-52140

main69052-52260iNCP12200208-200602

69054CYLINDER & KEY SET, BACK DOOR LOCK

main69055-52080iNCP12..CND199908-200208

W/O(LUGGAGE COMPARTMENT DOOR OPENER=W/CANCEL)

sub69055-52090

main69055-52100iNCP12199908-200208

W(LUGGAGE COMPARTMENT DOOR OPENER=W/CANCEL)

main69055-52250iNCP12200208-200602

W(LUGGAGE COMPARTMENT DOOR OPENER=W/CANCEL)

main69055-52260iNCP12..CND200208-200602

W/O(LUGGAGE COMPARTMENT DOOR OPENER=W/CANCEL)

69057ACYLINDER & KEY SET, IGNITION SWITCH LOCK

main69057-20480iNCP12200208-200602

main69057-52030iNCP12199908-200208

sub69057-52090

69503CYLINDER SET, LOCK

main69005-52130iNCP12..CND199908-200208

W/O(LUGGAGE COMPARTMENT DOOR OPENER=W/CANCEL)

main69005-52140iNCP12199908-200208

W(LUGGAGE COMPARTMENT DOOR OPENER=W/CANCEL)

main69005-52490iNCP12200208

W(LUGGAGE COMPARTMENT DOOR OPENER=W/CANCEL)

main69005-52500iNCP12..CND200208

W/O(LUGGAGE COMPARTMENT DOOR OPENER=W/CANCEL)

69503AKEY, BLANK

main90999-00149iNCP12199908-200208

MASTER KEY,W(*68)

sub90999-00175

main90999-00163iNCP12199908-200208

MASTER KEY

sub90999-00174

main90999-00165iNCP12199908-200208

SUB KEY

main90999-00186iNCP12200208

MASTER KEY,W/O(LUGGAGE COMPARTMENT DOOR OPENER=W/CANCEL)

main90999-00188iNCP12200208

SUB KEY

main90999-00199iNCP12200208

MASTER KEY,W(*68)

69511RETAINER, FRONT DOOR LOCK CYLINDER

main69511-16030iNCP12199908-200208

69563APAD, LUGGAGE COMPARTMENT DOOR LOCK CYLINDER

main69563-10020iNCP12199908-200208

main69563-52030iNCP12200208

69759GSNAP, LUGGAGE DOOR LOCK CYLINDER

main69759-20080iNCP12199908-200208

69759RSNAP, FRONT DOOR LOCK CYLINDER

main69759-32090iNCP12199908-200208

RH

main69759-32100iNCP12199908-200208

LH

10 parts on this diagram · 1 diagram in section
