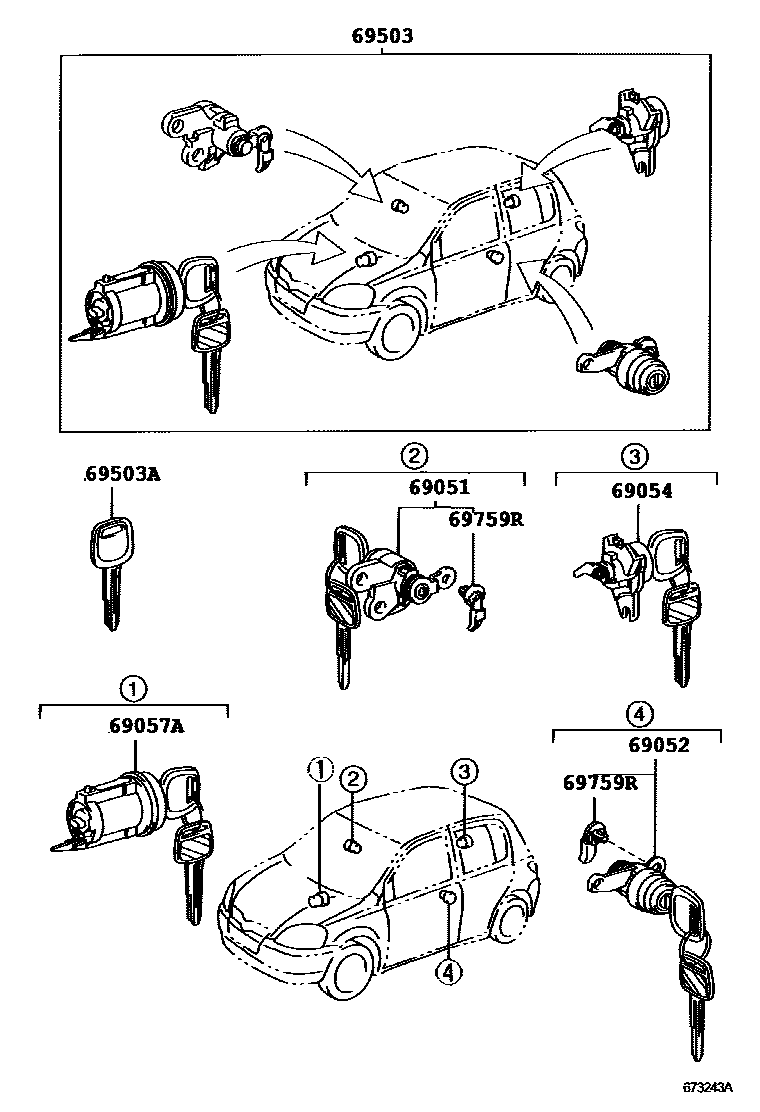

Toyota ECHO — LOCK CYLINDER SET

69051CYLINDER & KEY SET, DOOR LOCK, RH

main69051-52230iNCP13200306-200508

sub69051-52210

69052CYLINDER & KEY SET, DOOR LOCK, LH

main69052-52260iNCP13200306-200508

69054CYLINDER & KEY SET, BACK DOOR LOCK

main69055-52350iNCP13200306-200508

69057ACYLINDER & KEY SET, IGNITION SWITCH LOCK

main69057-52260iNCP13200306-200508

sub69057-20480

69503CYLINDER SET, LOCK

main69005-52A30iNCP13200306-200508

69503AKEY, BLANK

main90999-00199×3iNCP13200306-200508

MASTER KEY,W(*68)

69759RSNAP, FRONT DOOR LOCK CYLINDER

main69759-32090iNCP13200306

RH

main69759-32100iNCP13200306

LH

7 parts on this diagram · 1 diagram in section
