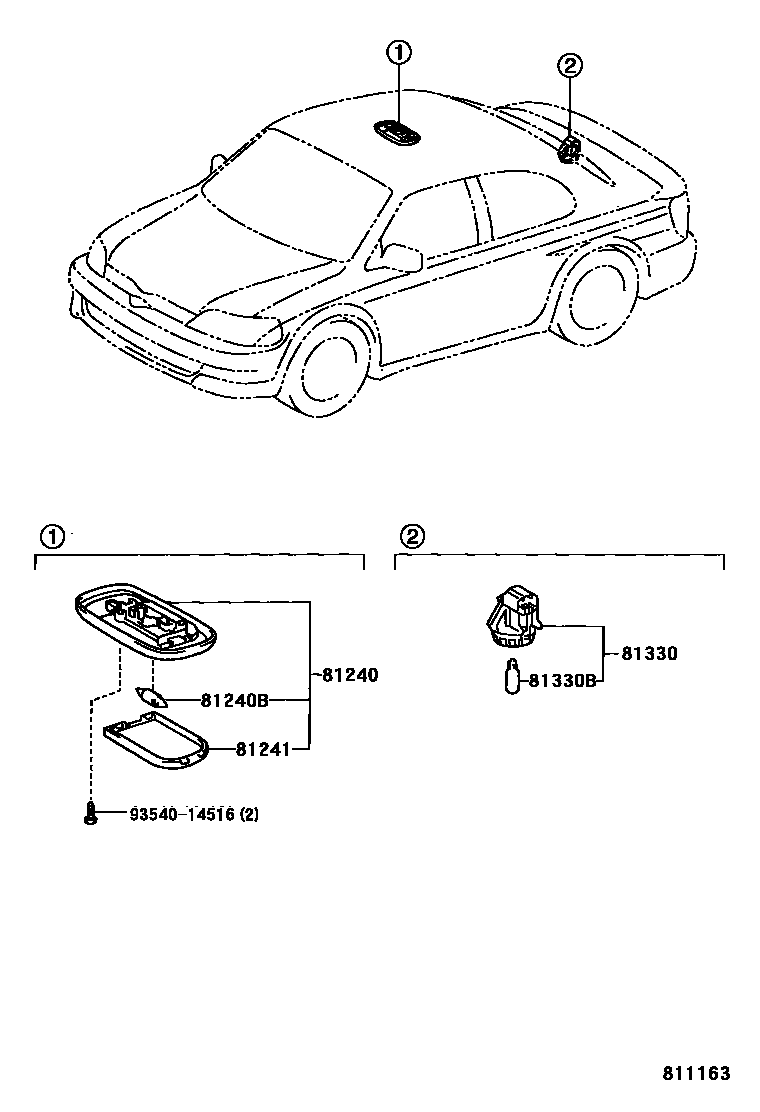

Toyota ECHO — INTERIOR LAMP

81240LAMP ASSY, ROOM, NO.1

main81240-12060-A2iNCP12200208-200511

IVORY,TRIM4#

main81240-12060-P0iNCP12199908-200208

LT.GRAY,TRIM1#,9#

81240BBULB, ROOM LAMP, NO.1

main90981-14011iNCP12199908-200208

12V 8W

81241LENS, ROOM LAMP, NO.1

main81241-12020iNCP12199908-200208

81330LAMP ASSY, LUGGAGE COMPARTMENT, NO.1

main81330-12020iNCP12199908-200208

81330BBULB, LUGGAGE COMPARTMENT LAMP

main90981-11020iNCP12199908-200208

12V 3.8W

9354014516

main93540-14516

6 parts on this diagram · 1 diagram in section
