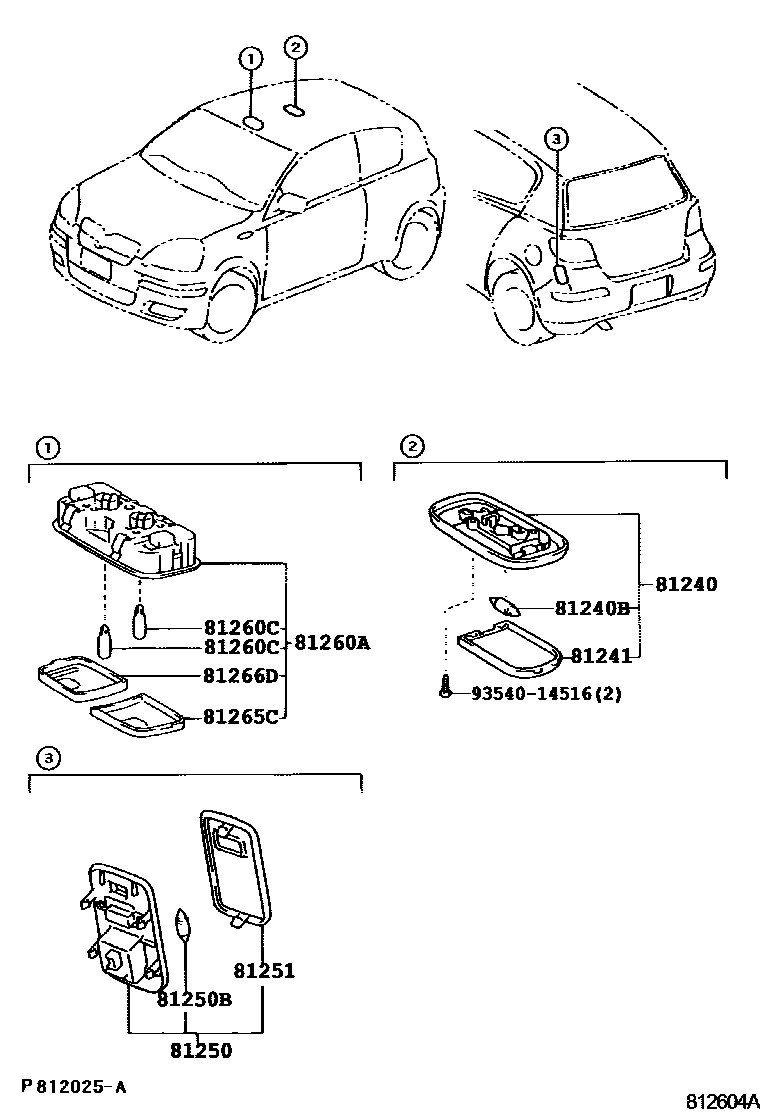

Toyota ECHO — INTERIOR LAMP

81240LAMP ASSY, ROOM, NO.1

main81240-12060-P0iNCP13200306-200508

LT.GRAY,TRIM9#

81240BBULB, ROOM LAMP, NO.1

main90981-14011iNCP13200306

12V 8W

81241LENS, ROOM LAMP, NO.1

main81241-12020iNCP13200306

81250LAMP ASSY, ROOM, NO.2

main81250-12030-B5iNCP13200306-200508

DK.GRAY,TRIM9#

sub81250-95J05

81250BBULB, ROOM LAMP, NO.2

main99132-13050iNCP13200306

12V 5W

81251LENS, ROOM LAMP, NO.2

main81251-12030iNCP13200306

81260ALAMP ASSY, MAP

main81260-52020-B0iNCP13200306-200508

LT.GRAY,TRIM9#

81260CBULB(FOR MAP LAMP)

main90981-11062×2iNCP13200306

12V 8W

81265CLENS, MAP LAMP, NO.1

main81265-52020iNCP13200306

81266DLENS, MAP LAMP, NO.2

main81266-52020iNCP13200306

9354014516

main93540-14516

11 parts on this diagram · 1 diagram in section
