Toyota ECHO — INSTRUMENT PANEL & GLOVE COMPARTMENT

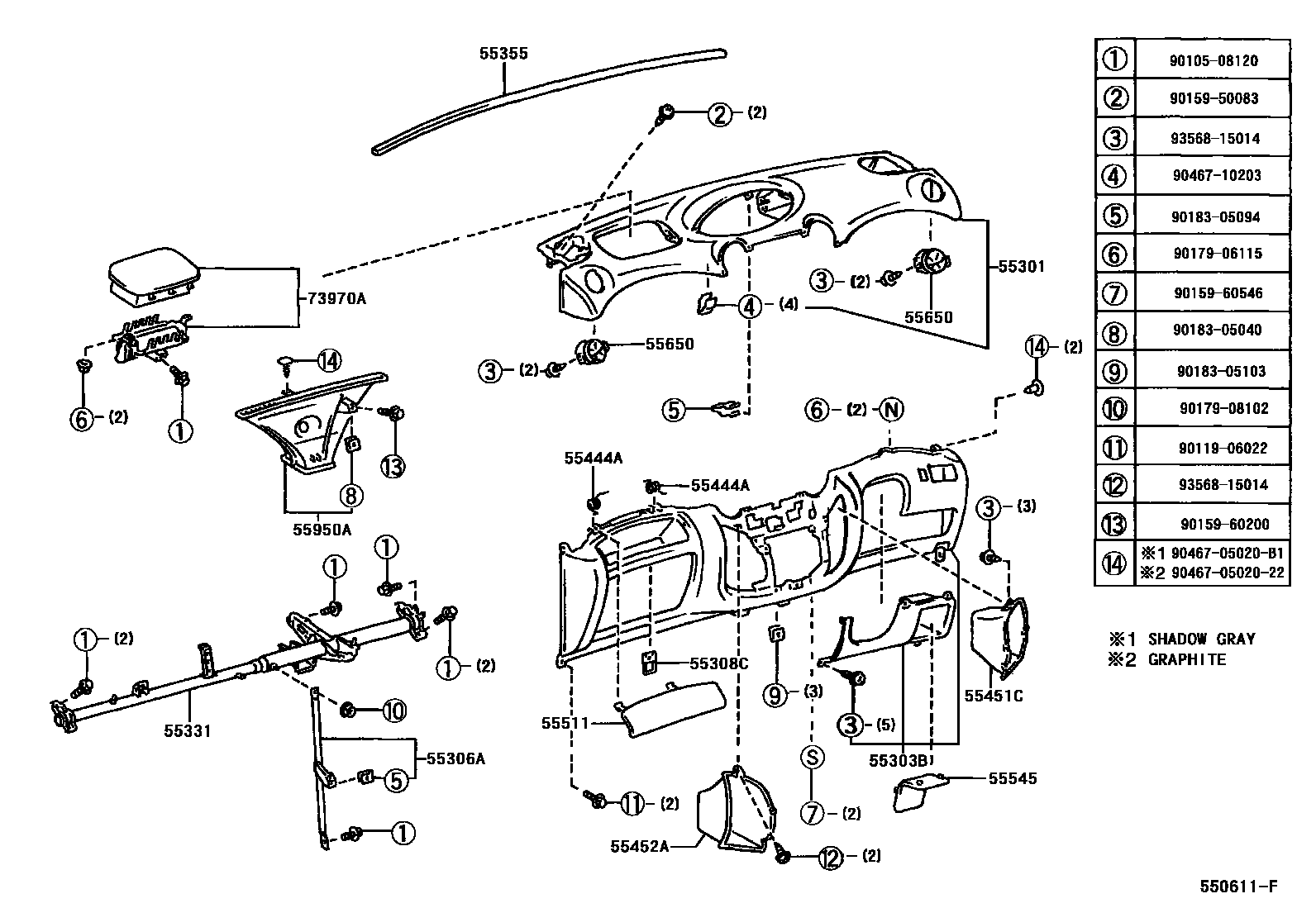

Parts diagram
55301PANEL SUB-ASSY, INSTRUMENT
main55301-52010-B0i199908-200212
SHADOW GRAY,TRIM1#
main55301-52010-B1i199908-200208
AMETHYST,TRIM9#
main55301-52010-B2i200212-200511
DK.GRAY,TRIM1#
main55301-52010-E0i200208-200511
SANDAL WOOD,TRIM4#
55303BPANEL SUB-ASSY, INSTRUMENT, LOWER
main55303-52902-B0i199908-200208
SHADOW GRAY,TRIM1#
main55303-52902-B1i199908-200208
AMETHYST,TRIM9#
main55303-52902-B4i200208
MD. GRAY,TRIM1#
main55303-52902-E0i200208-200602
M. NEUTRAL BONE,TRIM4#
55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1
main55306-52050i199908-200208
55308CBRACKET SUB-ASSY, INSTRUMENT PANEL, CENTER
main55308-52010i199908-200204
main55308-52080i200204-200208
55331REINFORCEMENT, INSTRUMENT PANEL
main55330-52110i199908-200208
55355CUSHION, INSTRUMENT PANEL, NO.1
main55355-52011i199908-199909
main55355-52012i199909-200412
main55355-52150i200501
55444ASPRING, INSTRUMENT PANEL BOX
main55444-52020i199908-200208
55451CBOX, INSTRUMENT PANEL, NO.1
main55451-52010-B0i199908-200208
SHADOW GRAY,TRIM1#
main55451-52010-B1i199908-200208
AMETHYST,TRIM9#
main55451-52080-B0i200212-200511
DK.GRAY,TRIM1#
main55451-52080-B1i200208-200212
SHADOW GRAY,TRIM1#
main55451-52080-E0i200208-200511
SANDAL WOOD,TRIM4#
55452ABOX, INSTRUMENT PANEL, NO.2
main55452-52010-B0i199908-200208
SHADOW GRAY,TRIM1#
main55452-52010-B1i199908-200208
AMETHYST,TRIM9#
main55452-52080-B0i200212-200511
DK.GRAY,TRIM1#
main55452-52080-B1i200208-200212
SHADOW GRAY,TRIM1#
main55452-52080-E0i200208-200511
SANDAL WOOD,TRIM4#
55511DOOR, GLOVE COMPARTMENT
main55501-52010-B0i199908-200212
MD.GRAY,TRIM1#
main55501-52010-B1i199908-200208
LT.AMETHYST,TRIM9#
main55501-52010-E0i200208-200212
MD.NEUTRAL BONE,TRIM4#
main55501-52060-B1i200212-200511
MD.GRAY,TRIM1#
main55501-52060-E0i200212-200511
MD.NEUTRAL BONE,TRIM4#
55545COVER, FUSE BOX OPENING
main55545-52010-B0i199908-200212
MD.GRAY,TRIM1#
main55545-52010-B1i199908-200208
LT.AMETHYST,TRIM9#
main55545-52010-B5i200212-200511
MD.GRAY,TRIM1#
main55545-52010-E0i200208-200511
MD.NEUTRAL BONE,TRIM4#
55650REGISTER ASSY, INSTRUMENT PANEL, NO.1
main55650-52010-B0i199908-200212
SHADOW GRAY,TRIM1#
main55650-52010-B1i199908-200208
AMETHYST,TRIM9#
main55650-52010-B2i200212-200511
DK.GRAY,TRIM1#
main55650-52010-E0i200208-200511
SANDAL WOOD,TRIM4#
55950ANOZZLE ASSY, DEFROSTER
main55950-52010i199908-200208
73970AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER
main73970-52010-B0i199908-200212
SHADOW GRAY,TRIM1#
main73970-52010-B1i199908-200208
AMETHYST,TRIM9#
main73970-52010-B2i200212-200511
DK.GRAY,TRIM1#
main73970-52010-E0i200208-200511
SANDAL WOOD,TRIM4#
9010508120
main90105-08120
9011906022
main90119-06022
9015950083
main90159-50083
9015960200
main90159-60200
9015960546
main90159-60546
9017906115
main90179-06115
9017908102
main90179-08102
9018305040
main90183-05040
9018305094
main90183-05094
9018305103
main90183-05103
904670502022
main90467-0502022
9046705020B1
main90467-05020B1
9046710203
main90467-10203
9356815014
main93568-15014

28 parts on this diagram · 4 diagrams in section

INSTRUMENT PANEL & GLOVE COMPARTMENT for Toyota ECHO

This section contains 57 genuine Toyota parts for the INSTRUMENT PANEL & GLOVE COMPARTMENT system of the Toyota ECHO. Key components include: REGISTER SUB-ASSY, INSTRUMENT PANEL, NO.1, PANEL SUB-ASSY, INSTRUMENT, PANEL SUB-ASSY, INSTRUMENT, LOWER, BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1, BRACKET SUB-ASSY, INSTRUMENT PANEL, CENTER.
