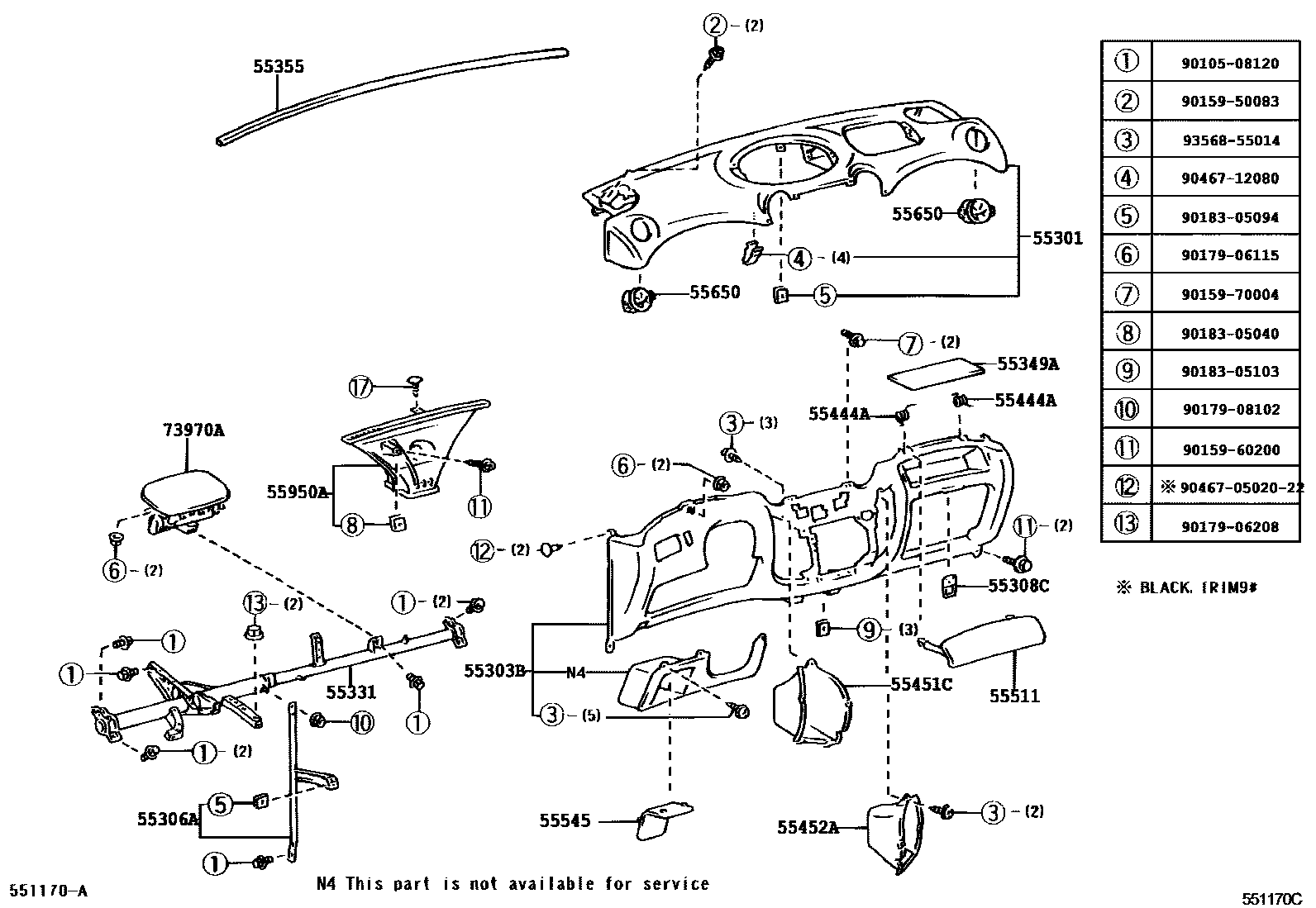

Toyota ECHO — INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1DRIVER SIDE 0003 1CENTER 0004 1PASSENGER SIDE

55301PANEL SUB-ASSY, INSTRUMENT

main55301-52010-B2iNCP13200306-200508

DK.GRAY,TRIM9#

55303BPANEL SUB-ASSY, INSTRUMENT, LOWER

main55303-52902-B4iNCP13200306-200508

MD. GRAY,TRIM9#

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-52050iNCP13200306

55308CBRACKET SUB-ASSY, INSTRUMENT PANEL, CENTER

main55308-52080iNCP13200306

55331REINFORCEMENT, INSTRUMENT PANEL

main55330-52110iNCP13200306

55349ACUSHION, INSTRUMENT PANEL

main55349-52020iNCP13200306

55355CUSHION, INSTRUMENT PANEL, NO.1

main55355-52012iNCP13200306-200501

main55355-52150iNCP13200502-200508

55444ASPRING, INSTRUMENT PANEL BOX

main55444-52020×2iNCP13200306

55451CBOX, INSTRUMENT PANEL, NO.1

main55451-52080-B0iNCP13200306-200508

DK.GRAY,TRIM9#

55452ABOX, INSTRUMENT PANEL, NO.2

main55452-52080-B0iNCP13200306-200508

DK.GRAY,TRIM9#

55511DOOR, GLOVE COMPARTMENT

main55501-52060-B1iNCP13200306-200508

MD.GRAY,TRIM9#

55545COVER, FUSE BOX OPENING

main55545-52010-B5iNCP13200306-200508

MD.GRAY,TRIM9#

55650REGISTER ASSY, INSTRUMENT PANEL, NO.1

main55650-52010-B2×2iNCP13200306-200508

DK.GRAY,TRIM9#

55950ANOZZLE ASSY, DEFROSTER

main55950-52010iNCP13200306

73970AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER

main73970-52010-B2iNCP13200306-200508

DK.GRAY,TRIM9#

9010508120

main90105-08120

9015950083

main90159-50083

9015960200

main90159-60200

9015970004

main90159-70004

9017906115

main90179-06115

9017906208

main90179-06208

9017908102

main90179-08102

9018305040

main90183-05040

9018305094

main90183-05094

9018305103

main90183-05103

904670502022

main90467-0502022

9046712080

main90467-12080

9356855014

main93568-55014

28 parts on this diagram · 4 diagrams in section
