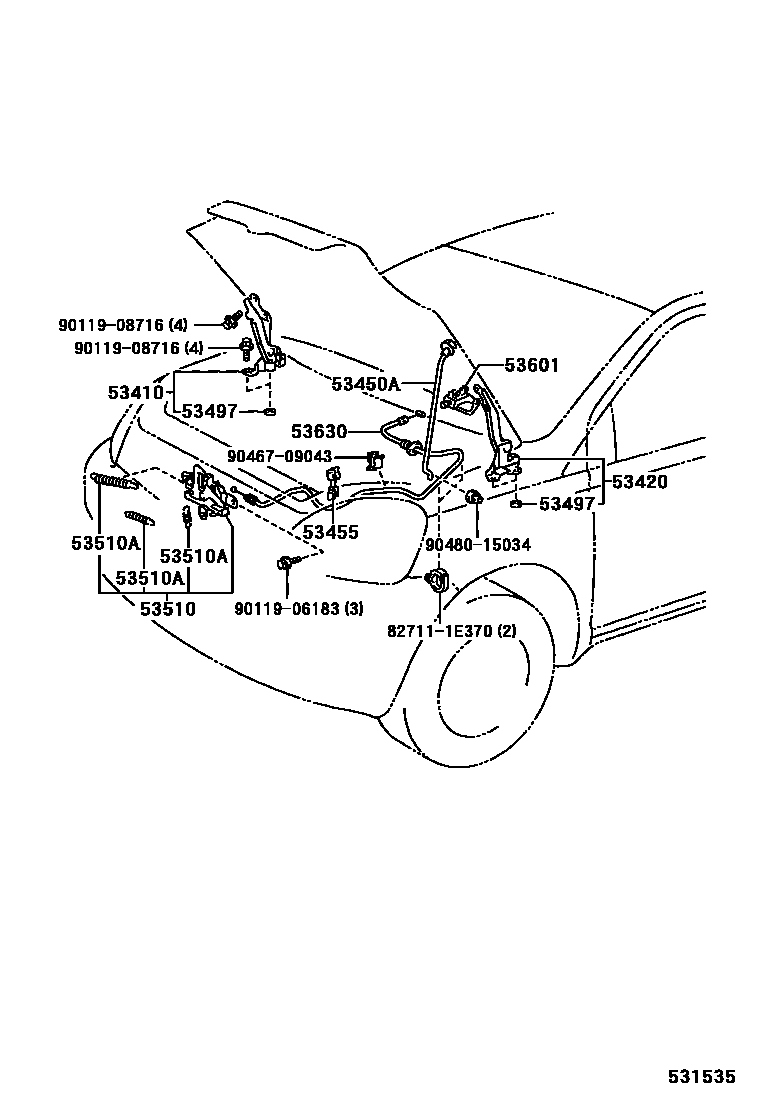

Toyota ECHO — HOOD LOCK & HINGE

53410HINGE ASSY, HOOD, RH

main53410-52010i200306-200508

53420HINGE ASSY, HOOD, LH

main53420-52010i200306-200508

53450ASUPPORT ASSY, HOOD, LH

main53440-52100i200306

53455CLAMP, HOOD SUPPORT ROD

main53455-52010i200306

53497PAD, HOOD HINGE, NO.1

main53497-10020×4i200306

T=1.5

main53497-42010×4i200306

T=0.5

53510LOCK ASSY, HOOD

main53510-52270i200306

53510ASPRING, TENSION(FOR HOOD LOCK)

main90506-09055i200306

WD=0.9,CW=21

main90506-12063i200306

WD=1.2,CW=8.5

main90506-16077i200306

WD=1.6,CW=12

53601LEVER SUB-ASSY, HOOD LOCK CONTROL

main53601-52010-B6i200306-200508

MD.GRAY,TRIM9#

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-52090i200306

827111E370WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1E370

9011906183

main90119-06183

9011908716

main90119-08716

9046709043

main90467-09043

9048015034

main90480-15034

14 parts on this diagram · 1 diagram in section

HOOD LOCK & HINGE for Toyota ECHO

This section contains 14 genuine Toyota parts for the HOOD LOCK & HINGE system of the Toyota ECHO. Key components include: HINGE ASSY, HOOD, RH, HINGE ASSY, HOOD, LH, SUPPORT ASSY, HOOD, LH, CLAMP, HOOD SUPPORT ROD, PAD, HOOD HINGE, NO.1.
