Toyota ECHO — HEATING & AIR CONDITIONING - COOLER UNIT
87030BLOWER ASSY, AIR CONDITIONER
COLD SPEC & W(AIR CONDITIONER); W(AIR CONDITIONER)
COLD SPEC & W(AIR CONDITIONER); W(AIR CONDITIONER)
COLD SPEC
COLD SPEC
W(AIR CONDITIONER)
W(AIR CONDITIONER)
W(AIR CONDITIONER)
87103BMOTOR SUB-ASSY, BLOWER W/FAN
COLD SPEC
COLD SPEC
87107AUNIT SUB-ASSY, HEATER RADIATOR
COLD SPEC
87114BCOVER, HEATER
COLD SPEC
87116ASPRING, HOLDING (FOR COOLER UNIT CASE)
87138CRESISTOR, BLOWER
87150BRADIATOR ASSY, HEATER
COLD SPEC
COLD SPEC
COLD SPEC
87220BDUCT ASSY, AIR
88501EVAPORATOR SUB-ASSY, COOLER, NO.1
COLD SPEC; MAKER OPTION
DEALER OPTION
W(MANUAL AIR CONDITIONER)
88539HOSE, COOLER UNIT DRAIN, NO.1
88548BCASE, AIR FILTER
PUERTORICO SPEC
88578APACKING, COOLER STABILIZER AMPLIFIER
88578BPACKING, COOLING UNIT, NO.1
88625THERMISTOR, COOLER, NO.1
W(MANUAL AIR CONDITIONER)
88648WIRING, COOLER, NO.1
88650CAMPLIFIER SUB-ASSY, AIRCONDITIONER
88688ABRACKET, COOLER STABILIZER AMPLIFIER
88710ATUBE ASSY, AIR CONDITIONER
88891ZBRACKET, COOLER THERMISTOR
8846752030CUSHION, COOLER CONDENSER, NO.1
main88467-52030
8889952030COVER, EVAPORATOR
main88899-52030
8889952040COVER, EVAPORATOR
main88899-52040
8889952080COVER, EVAPORATOR
main88899-52080
9009900294
main90099-00294
9009900968
main90099-00968
9009904542
main90099-04542
9011906299
main90119-06299
9015960213
main90159-60213
9017906054
main90179-06054
9017906314
main90179-06314
9338556025
main93385-56025

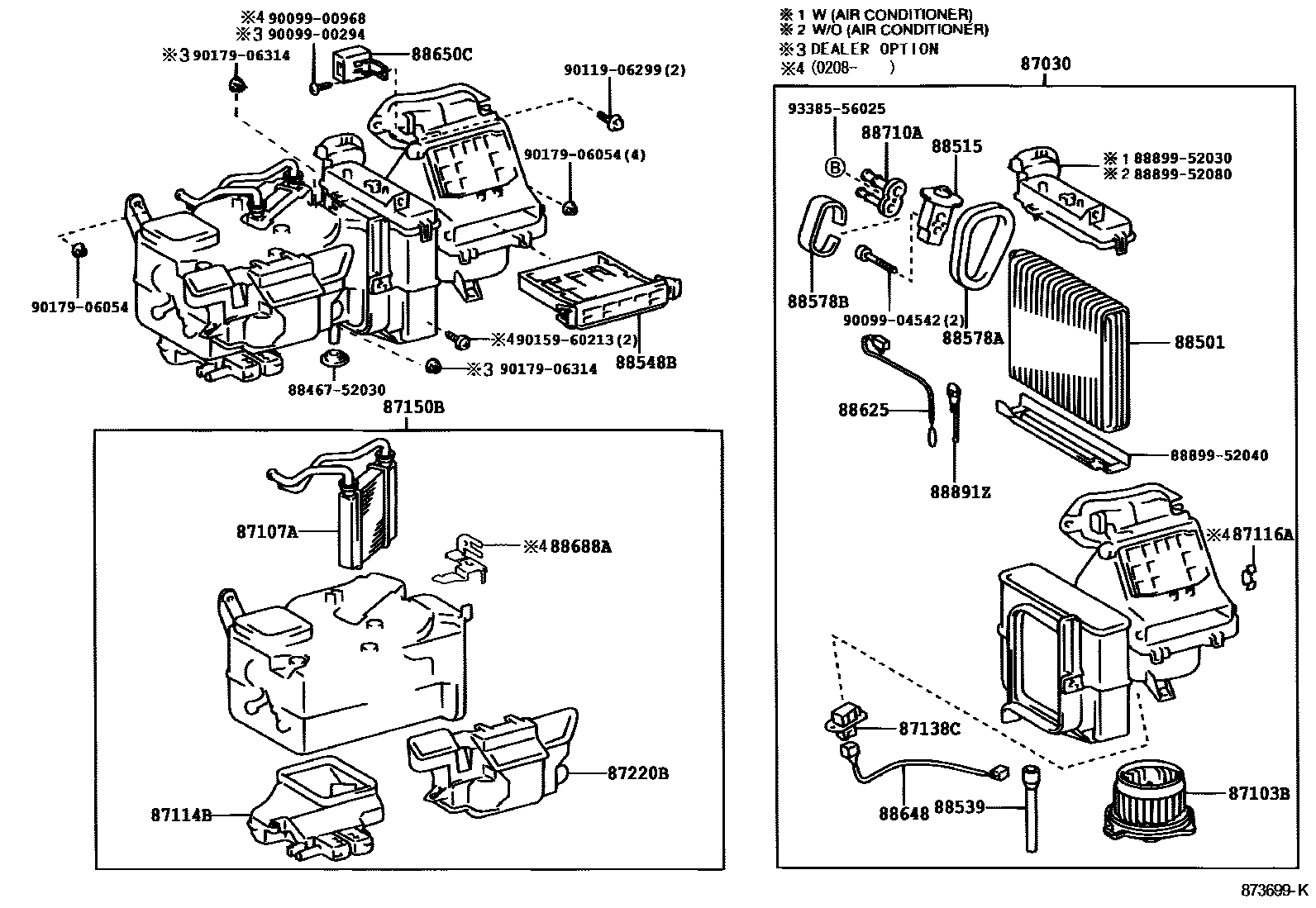

32 parts on this diagram · 3 diagrams in section
HEATING & AIR CONDITIONING - COOLER UNIT for Toyota ECHO
This section contains 44 genuine Toyota parts for the HEATING & AIR CONDITIONING - COOLER UNIT system of the Toyota ECHO. Key components include: BLOWER ASSY, AIR CONDITIONER, MOTOR SUB-ASSY, BLOWER W/FAN, SERVO SUB-ASSY, DAMPER, NO.1, UNIT SUB-ASSY, HEATER RADIATOR, COVER, HEATER.
