Toyota ECHO — HEADLAMP

81110BBULB(FOR HEADLAMP, NO.1)

main90981-13058×2iNCP13200306-200508

12V 60/55W,HALOGEN

81131AUNIT, HEADLAMP, RH

main81130-52510iNCP13200306-200508

81139COVER, HEADLAMP SOCKET

main81139-52010×2iNCP13200306-200508

81171AUNIT, HEADLAMP, LH

main81170-52510iNCP13200306-200508

81193RETAINER, HEADLAMP PROTECTOR, UPPER RH

main81193-52010iNCP13200306

81194RETAINER, HEADLAMP PROTECTOR, UPPER LH

main81194-52010iNCP13200306

81510CBULB (FOR FRONT TURN SIGNAL LAMP)

main90981-15011×2iNCP13200306-200508

12V 21W,AMBER

81515BSOCKET, FRONT TURN SIGNAL LAMP

main81515-42050×2iNCP13200306-200508

81610FBULB(FOR CLEARANCE LAMP)

main99132-12050×2iNCP13200306-200508

12V 5W

81615DSOCKET, CLEARANCE LAMP

main81615-12590×2iNCP13200306-200508

9015950346

main90159-50346

9018905142

main90189-05142

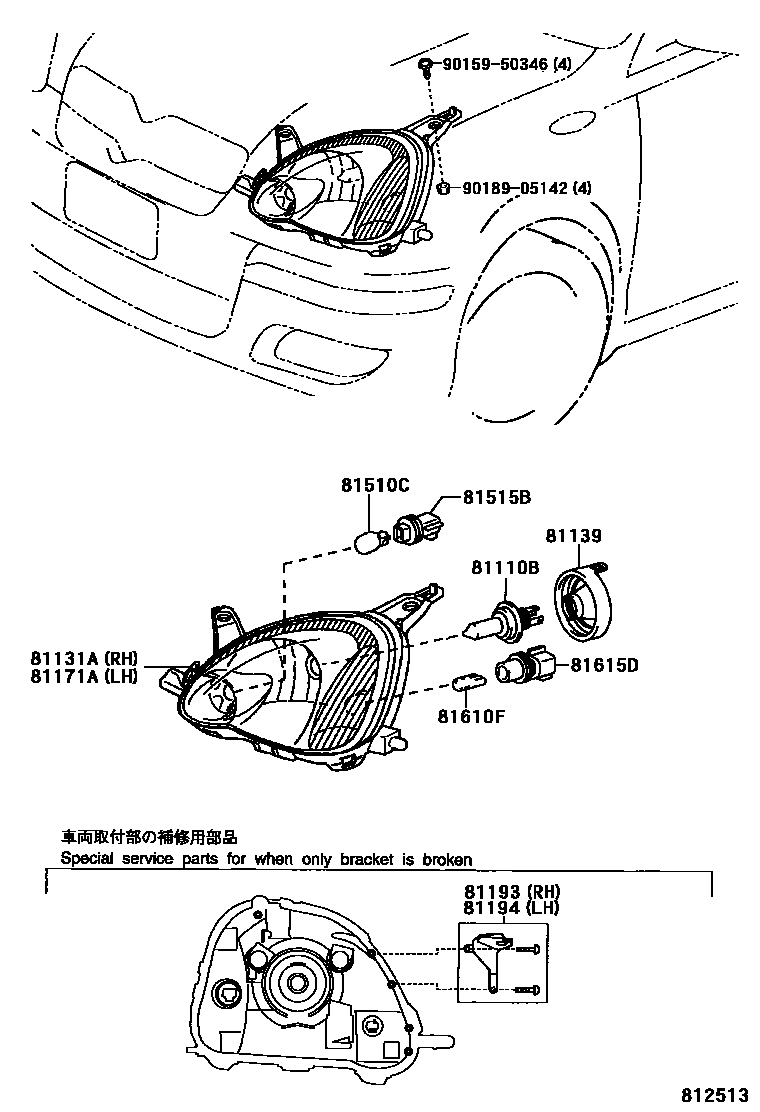

12 parts on this diagram · 1 diagram in section
