Toyota ECHO — FRONT STEERING GEAR & LINK

0001 1W(POWER STEERING) 0002 1W(POWER STEERING) 0003 1W(POWER STEERING) 0004 1W(POWER STEERING) 0005 1W(MANUAL STEERING) 0006 1W(MANUAL STEERING)

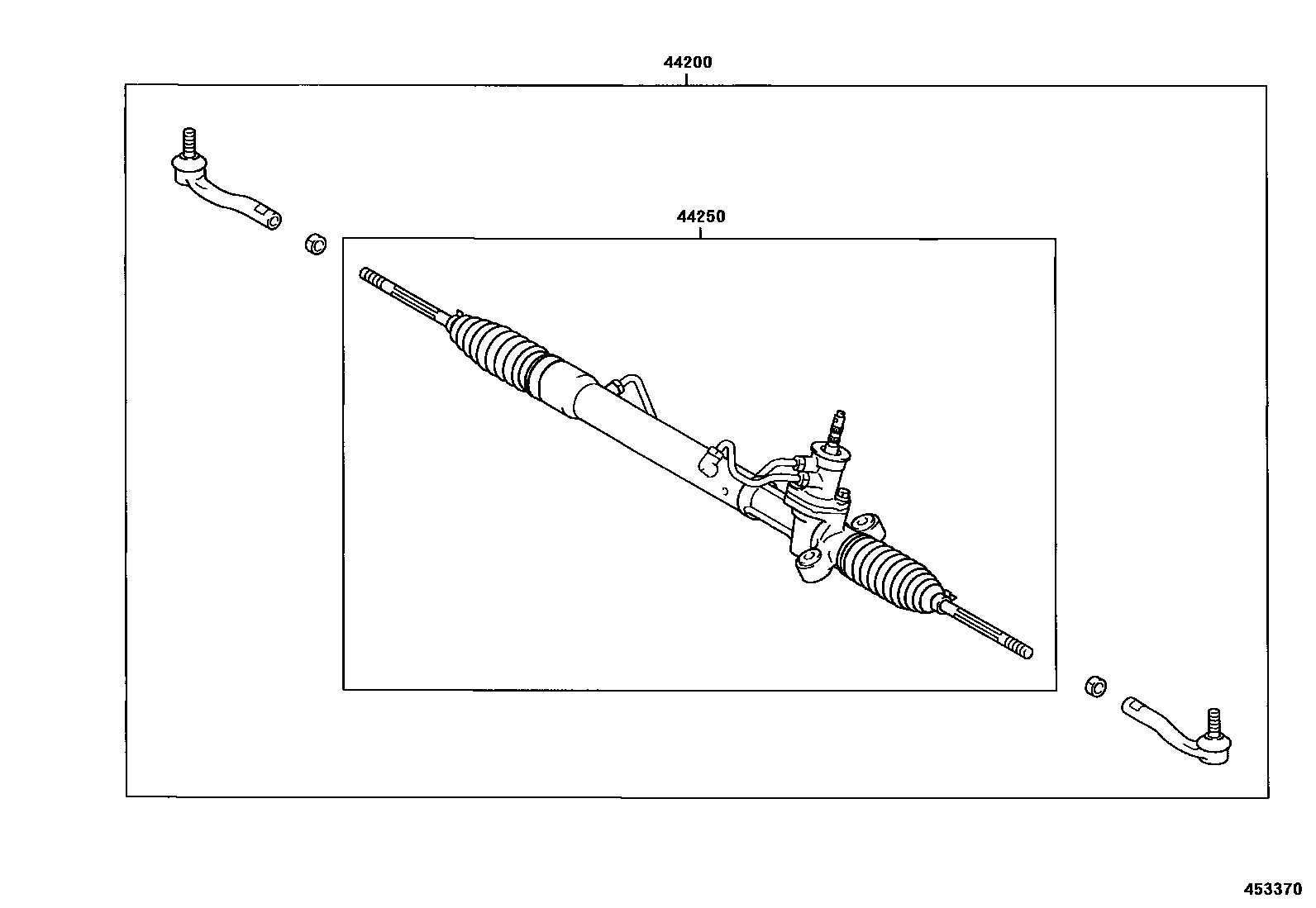

44200LINK ASSY, POWER STEERING

main44200-52140iNCP12199908-200208

main44200-52340iNCP12200208

sub90170-14012

44250GEAR ASSY, POWER STEERING(FOR RACK & PINION)

main44250-52110iNCP12199908-200208

main44250-52200iNCP12200208-200209

2 parts on this diagram · 6 diagrams in section
