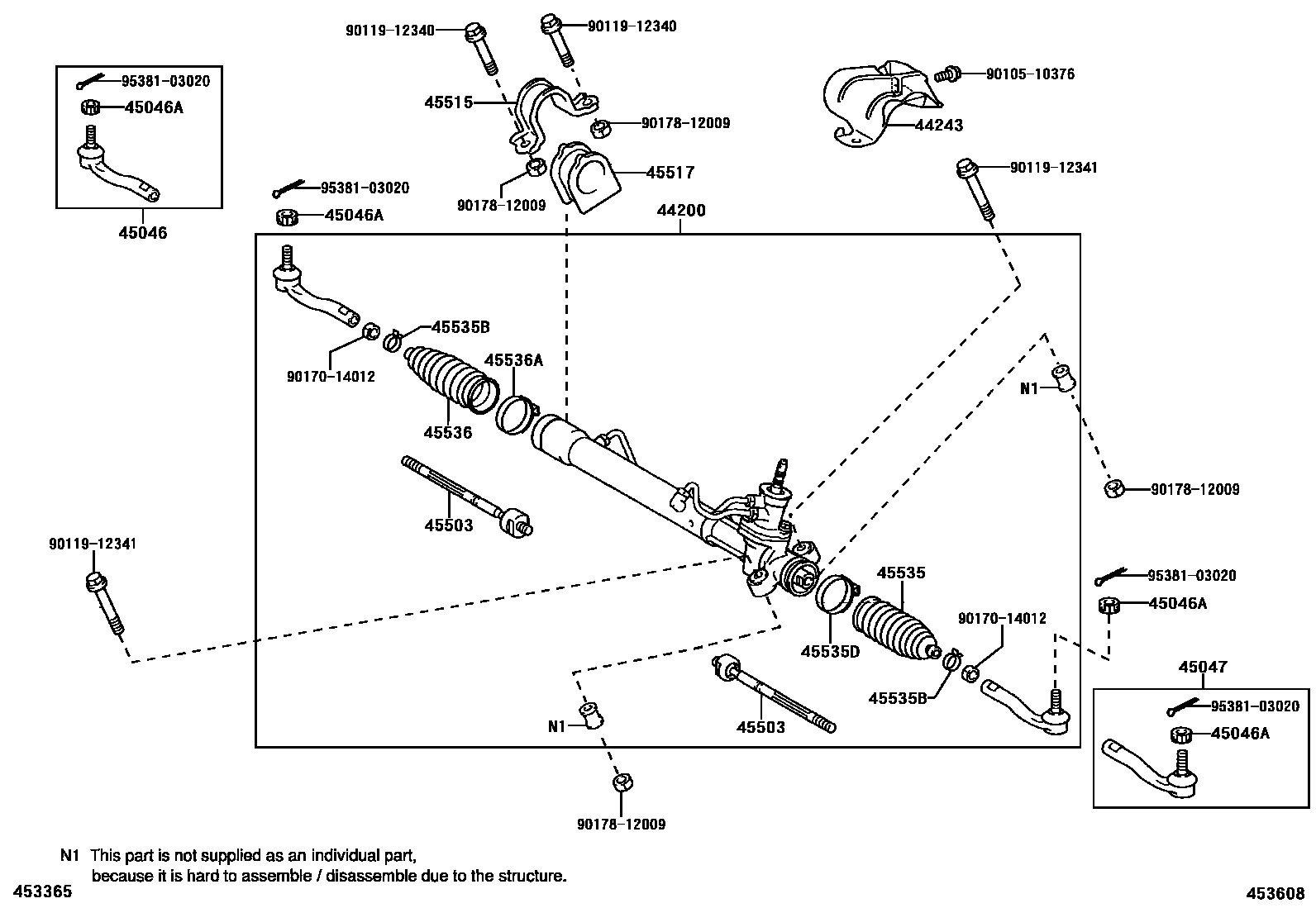

Toyota ECHO — FRONT STEERING GEAR & LINK

0001 1W(POWER STEERING) 0002 1W(POWER STEERING) 0003 1W(MANUAL STEERING)

44200LINK ASSY, POWER STEERING

main44200-52340iNCP13200306

sub44250-52200

sub90170-14012

44243INSULATOR, POWER STEERING RACK HOUSING HEAT

main44243-52010iNCP13200306

45046END SUB-ASSY, TIE ROD, RH

main45046-19175iNCP13200306

W(POWER STEERING)

main45046-59026iNCP13..3D200306

W(MANUAL STEERING)

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-12028×2iNCP13200306

45047END SUB-ASSY, TIE ROD, LH

main45046-19175iNCP13200306

W(POWER STEERING)

main45047-59026iNCP13..3D200306

W(MANUAL STEERING)

45503END SUB-ASSY, STEERING RACK

main45503-52010×2iNCP13..3D200306

W(MANUAL STEERING)

main45503-52030×2iNCP13200306

W(POWER STEERING)

45515BRACKET, STEERING RACK HOUSING, NO.2

main45515-52010iNCP13200306

45517GROMMET, STEERING RACK HOUSING, NO.2

main45517-52010iNCP13200306

W(POWER STEERING)

main45517-52020iNCP13..3D200306

W(MANUAL STEERING)

45535BOOT, STEERING RACK, NO.1

main45535-52030iNCP13..3D200306

W(MANUAL STEERING)

main45535-52060iNCP13200306

W(POWER STEERING)

45535BCLIP(FOR STEERING RACK BOOT)

main90466-17001×2iNCP13..3D200306

W(MANUAL STEERING)

main90467-19021×2iNCP13200306

W(POWER STEERING)

45535DCLAMP(FOR STEERING RACK BOOT NO.1)

main90460-58008iNCP13200306-200508

45536BOOT, STEERING RACK, NO.2

main45535-52030iNCP13..3D200306

W(MANUAL STEERING)

main45535-52060iNCP13200306

W(POWER STEERING)

45536ACLAMP(FOR STEERING RACK BOOT NO.2)

main90460-58008iNCP13200306-200508

9010510376

main90105-10376

9011912340

main90119-12340

9011912341

main90119-12341

9017014012

main90170-14012

9017812009

main90178-12009

9538103020

main95381-03020

19 parts on this diagram · 3 diagrams in section
