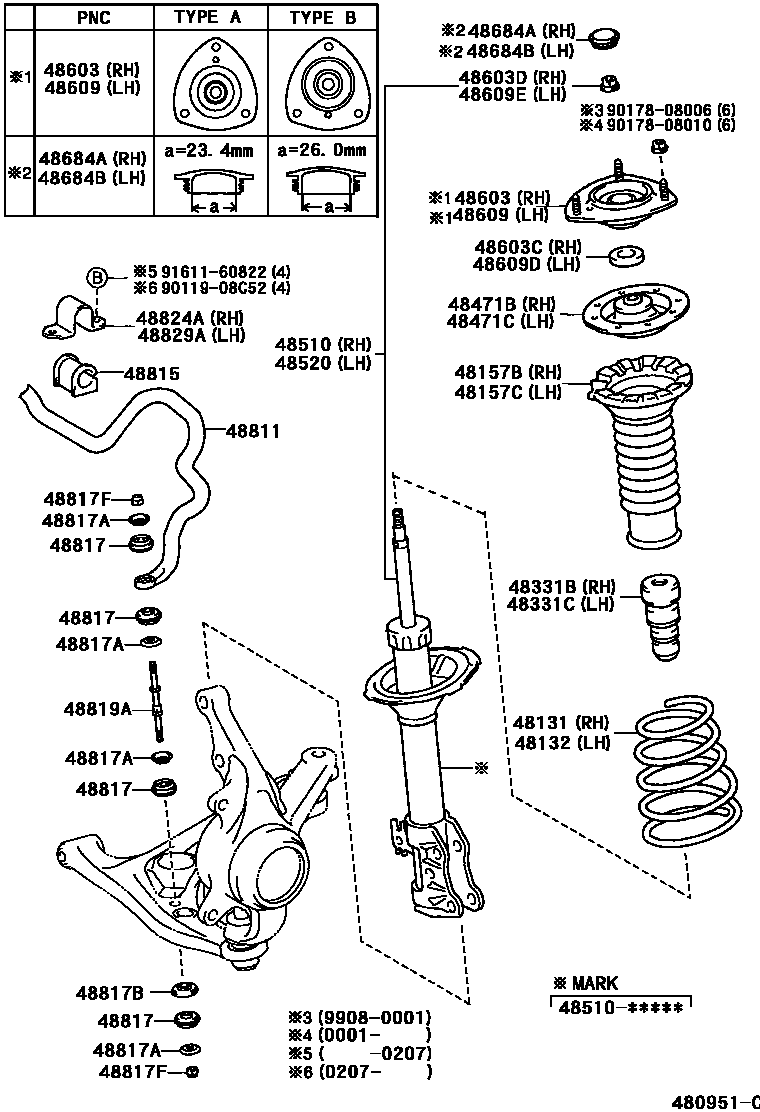

Toyota ECHO — FRONT SPRING & SHOCK ABSORBER
48131SPRING, FRONT COIL, RH
L=371.5
48132SPRING, FRONT COIL, LH
L=371.5
48157BINSULATOR, FRONT COIL SPRING, UPPER RH
48157CINSULATOR, FRONT COIL SPRING, UPPER LH
48471BSEAT, FRONT COIL SPRING, UPPER RH
48471CSEAT, FRONT COIL SPRING, UPPER LH
48510ABSORBER ASSY, SHOCK, FRONT RH
MARK 48510-52050
MARK 48510-52051
MARK 48510-52052
MARK 48510-52053
MARK 48510-52054
MARK 48510-52630
MARK 48510-52A20
48520ABSORBER ASSY, SHOCK, FRONT LH
MARK 48510-52050
MARK 48510-52051
MARK 48510-52052
MARK 48510-52053
MARK 48510-52054
MARK 48510-52630
MARK 48510-52A20
48603SUPPORT SUB-ASSY, FRONT SUSPENSION, RH
TYPE A:REFER TO ILLUSTRATION
TYPE A:REFER TO ILLUSTRATION
TYPE B:REFER TO ILLUSTRATION
TYPE B:REFER TO ILLUSTRATION
48603CSEAL, DUST(FOR FRONT SUSPENSION SUPPORT RH)
48603DNUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH)
48609SUPPORT SUB-ASSY, FRONT SUSPENSION, LH
TYPE A:REFER TO ILLUSTRATION
TYPE A:REFER TO ILLUSTRATION
TYPE B:REFER TO ILLUSTRATION
TYPE B:REFER TO ILLUSTRATION
48609DSEAL, DUST(FOR FRONT SUSPENSION SUPPORT LH)
48609ENUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH)
48684ACOVER, FRONT SUSPENSION SUPPORT DUST, RH
TYPE A:REFER TO ILLUSTRATION
TYPE B:REFER TO ILLUSTRATION
TYPE B:REFER TO ILLUSTRATION
48684BCOVER, FRONT SUSPENSION SUPPORT DUST, LH
TYPE A:REFER TO ILLUSTRATION
TYPE B:REFER TO ILLUSTRATION
TYPE B:REFER TO ILLUSTRATION
48811BAR, STABILIZER, FRONT
48815BUSH, FRONT STABILIZER BAR, NO.1
48817CUSHION, FRONT STABILIZER
sub48817-52011
48817ARETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR)
48817BRETAINER, CUSHION, NO.2(FOR FRONT STABILIZER BAR)
48817FNUT(FOR FRONT STABILIZER BAR)
48819ABOLT, FRONT STABILIZER
48824ABRACKET, FRONT STABILIZER, NO.1 RH
48829ABRACKET, FRONT STABILIZER, NO.1 LH
9011908C52
main90119-08C52
9017808006
main90178-08006
9017808010
main90178-08010
9161160822
main91611-60822
31 parts on this diagram · 1 diagram in section
