Toyota ECHO — FRONT SEAT & SEAT TRACK

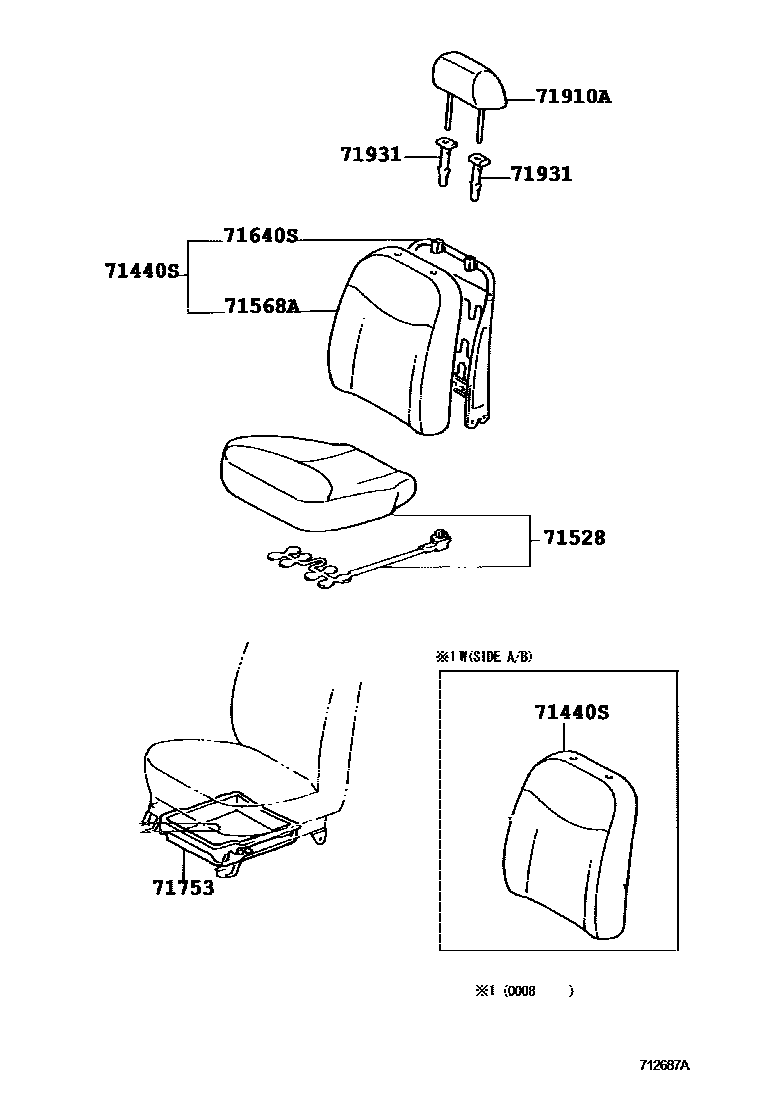

Parts diagram
71440SBACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)
main71440-52160-B0i199908-200208
***,LT. AMETHYST,TRIM9#
main71440-52160-B1i199908-200208
***,GRAY,TRIM1#
main71440-52500-B0i200008-200208
W(SRS AIR BAG,DRIVER SIDE/SRS AIR BAG,PASSENGER SIDE),LT. AMETHYST,TRIM9#
main71440-52500-B1i200008-200208
W(SRS AIR BAG,DRIVER SIDE/SRS AIR BAG,PASSENGER SIDE),GRAY,TRIM1#
main71440-5C121-B0i200208-200602
MD.GRAY,TRIM1#
main71440-5C121-E0i200208-200602
MD.NEUTRAL,TRIM4#
71528PAD, FRONT SEAT CUSHION W/COVER, LH
main71528-52310-B0i199908-200208
LT. AMETHYST,TRIM9#
main71528-52310-B1i199908-200208
GRAY,TRIM1#
main71528-52780-B0i200008-200208
W(*80,DRIVER SIDE & PASSENGER SIDE & SIDE),LT. AMETHYST,TRIM9#
main71528-52780-B1i200008-200208
W(*80,DRIVER SIDE & PASSENGER SIDE & SIDE),GRAY,TRIM1#
main71528-5C500-B0i200208-200511
MD.GRAY,TRIM1#
main71528-5C500-E0i200208-200511
MD.NEUTRAL BONE,TRIM4#
main71528-5C510-B0i200208-200511
W(SRS AIR BAG,DRIVER SIDE/SRS AIR BAG,PASSENGER SIDE/SRS SIDE AIR BAG),MD.GRAY,TRIM1#
main71528-5C510-E0i200208-200511
W(SRS AIR BAG,DRIVER SIDE/SRS AIR BAG,PASSENGER SIDE/SRS SIDE AIR BAG),MD.NEUTRALBONE,TRIM4#
71568APAD, FRONT SEATBACK W/COVER, LH
main71558-52140-B0i199908-200208
LT. AMETHYST,TRIM9#
main71558-52140-B1i199908-200208
GRAY,TRIM1#
main71568-52610-B0i200008-200208
W(*80,DRIVER SIDE & PASSENGER SIDE & SIDE),LT. AMETHYST,TRIM9#
main71568-52610-B1i200008-200208
W(*80,DRIVER SIDE & PASSENGER SIDE & SIDE),GRAY,TRIM1#
main71568-52880-B0i200208-200511
MD.GRAY,TRIM1#
main71568-52880-E0i200208-200511
MD.NEUTRAL BONE,TRIM4#
71640SSPRING ASSY, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
main71630-52010i199908-200208
main71630-52240i200208-200602
71753TRAY, FRONT SEAT UNDER
main71753-52010i199908-200208
71910AHEADREST ASSY, FRONT SEAT
main71910-52070-B0×2i199908-200208
LT. AMETHYST,TRIM9#
main71910-52070-B1×2i199908-200208
GRAY,TRIM1#
main71910-52070-B3×2i200208-200602
MD.GRAY,TRIM1#
main71910-52070-E1×2i200208-200602
MD.NEUTRAL BONE,TRIM4#
71931SUPPORT, FRONT SEAT HEADREST
main71930-47010-A0×2i200208-200511
W(LOCK),IVORY,TRIM4#
main71930-47010-B2×2i200208-200511
W(LOCK),DK.GRAY,TRIM1#
main71930-52010-B0×2i199908-200008
W(LOCK),SHADOW GRAY,TRIM1#
main71930-52010-B2×2i199908-200208
W(LOCK),AMETHYST,TRIM9#
main71930-52010-B4×2i200008-200208
W(LOCK),DK.GRAY,TRIM1#
main71931-47010-A0×2i200208-200511
W/O(LOCK),IVORY,TRIM4#
main71931-47010-B2×2i200208-200511
W/O(LOCK),DK.GRAY,TRIM1#
main71931-52010-B0×2i199908-200008
W/O(LOCK),SHADOW GRAY,TRIM1#
main71931-52010-B2×2i199908-200208
W/O(LOCK),AMETHYST,TRIM9#
main71931-52010-B4×2i200008-200208
W/O(LOCK),DK.GRAY,TRIM1#

7 parts on this diagram · 5 diagrams in section

FRONT SEAT & SEAT TRACK for Toyota ECHO

This section contains 38 genuine Toyota parts for the FRONT SEAT & SEAT TRACK system of the Toyota ECHO. Key components include: PAD SUB-ASSY, FRONT SEAT CUSHION SENSOR, RH, BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE), BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE), PAD, FRONT SEAT CUSHION W/COVER, RH, PAD, FRONT SEAT CUSHION W/COVER, LH.
