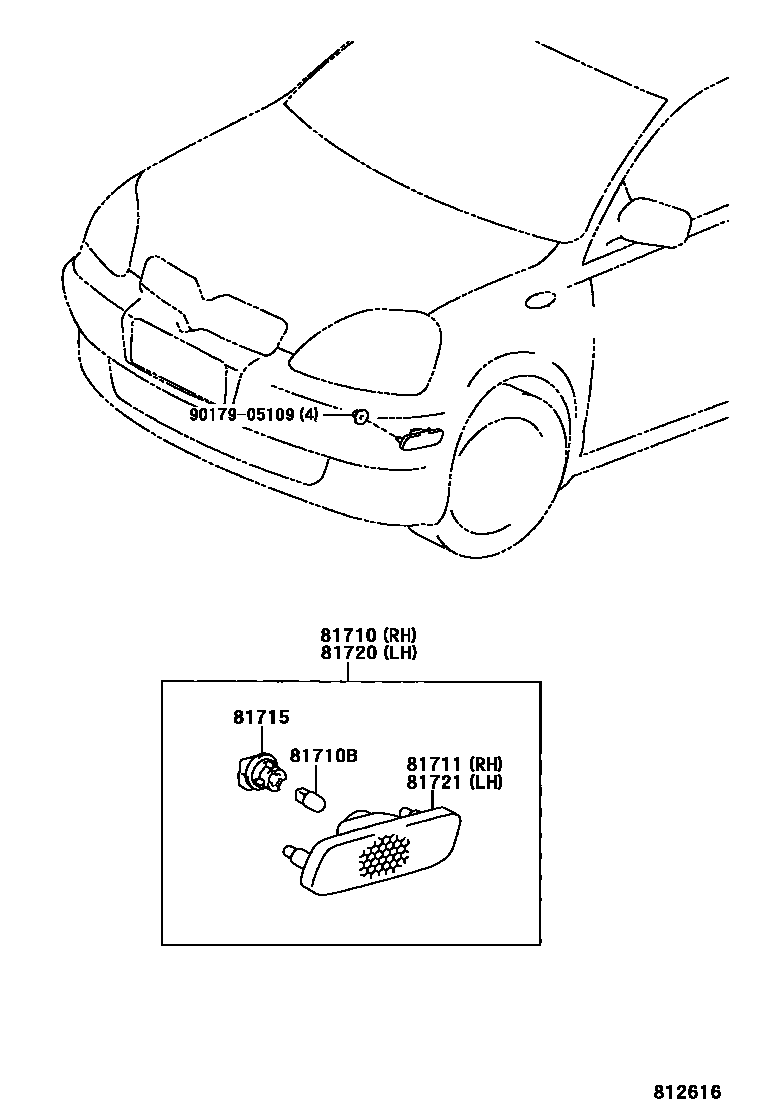

Toyota ECHO — FRONT MARKER LAMP

81710LAMP ASSY, FRONT MARKER, RH

main81730-30110iNCP13200306-200508

81710BBULB, FRONT MARKER LAMP

main90981-11020×2iNCP13200306

12V 3.8W

81711LENS, FRONT MARKER LAMP, RH

main81731-30110iNCP13200306

81715SOCKET & WIRE, FRONT MARKER LAMP

main90075-99012×2iNCP13200306

81720LAMP ASSY, FRONT MARKER, LH

main81740-30120iNCP13200306-200508

81721LENS, FRONT MARKER LAMP, LH

main81741-30120iNCP13200306

9017905109

main90179-05109

7 parts on this diagram · 1 diagram in section
