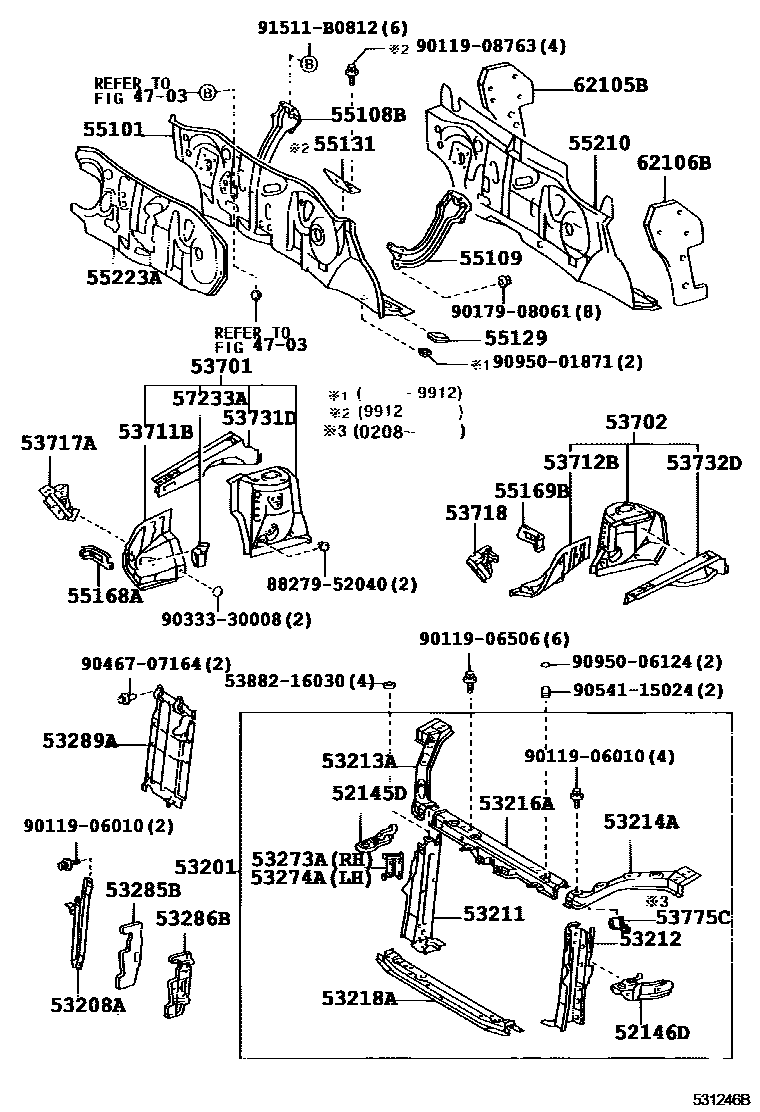

Toyota ECHO — FRONT FENDER APRON & DASH PANEL
4703
52145DBRACKET, FRONT BUMPER SIDE MOUNTING, RH
52146DBRACKET, FRONT BUMPER SIDE MOUNTING, LH
53201SUPPORT SUB-ASSY, RADIATOR
53208ASUPPORT SUB-ASSY, HOOD LOCK
53216ASUPPORT, RADIATOR, UPPER
53218ASUPPORT, RADIATOR, LOWER
53273AREINFORCEMENT, RADIATOR SUPPORT, RH
53274AREINFORCEMENT, RADIATOR SUPPORT, LH
53285BSEAL, RADIATOR SIDE AIR, NO.1
53286BSEAL, RADIATOR SIDE AIR, NO.2
53289ACOVER, RADIATOR SUPPORT OPENING
53702APRON SUB-ASSY, FRONT FENDER, LH
53711BAPRON, FRONT FENDER, FRONT RH
53712BAPRON, FRONT FENDER, FRONT LH
53731DMEMBER, FRONT APRON TO COWL SIDE, UPPER RH
53732DMEMBER, FRONT APRON TO COWL SIDE, UPPER LH
53775CBRACKET, COOL AIR INTAKE DUCT MOUNTING
55108BBRACE SUB-ASSY, DASH TO FRAME, RH
55109BRACE SUB-ASSY, DASH TO FRAME, LH
55131REINFORCEMENT, DASH PANEL
55168ABRACKET, FRONT FENDER MOUNTING, RH
55169BBRACKET, FRONT FENDER MOUNTING, LH
55223AINSULATOR, DASH PANEL, OUTER
57233ARETAINER, ENGINE FRONT SUPPORT, RH
62105BINSULATOR SUB-ASSY, COWL SIDE, RH
62106BINSULATOR SUB-ASSY, COWL SIDE, LH
5388216030PACKING, FRONT FENDER MAIN
main53882-16030
8827952040GUIDE, SKID CONTROL SENSOR
main88279-52040
9011906010
main90119-06010
9011906506
main90119-06506
9011908763
main90119-08763
9017908061
main90179-08061
9033330008
main90333-30008
9046707164
main90467-07164
9054115024
main90541-15024
9095001871
main90950-01871
9095006124
main90950-06124
91511B0812
main91511-B0812
49 parts on this diagram · 1 diagram in section
