Toyota ECHO — FRONT DOOR WINDOW REGULATOR & HINGE

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-52010iNCP12200208-200511

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-52010iNCP12199908-200208

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-52010iNCP12199908-200208

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68740-52010iNCP12199908-200208

69260HANDLE ASSY, FRONT DOOR WINDOW REGULATOR

main69260-52010-B0×2iNCP12199908-200208

MD.GRAY,TRIM1#

main69260-52010-B1×2iNCP12199908-200208

LT.AMETHYST,TRIM9#

main69260-52010-B3×2iNCP12200212-200511

MD.GRAY,TRIM1#

main69260-52010-E0×2iNCP12200208-200511

MD.NEUTRAL BONE,TRIM4#

69260BRING, SHAFT SNAP(FOR FRONT DOOR WINDOW REGULATOR HANDLE)

main90520-01005×2iNCP12200208

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-52040iNCP12199908-200208

W(POWER WINDOW)

main69810-52080iNCP12200208

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-52040iNCP12..4D200208

W(POWER WINDOW)

main69820-52070iNCP12200208

69855COVER, DOOR WINDOW REGULATOR GEAR

main69855-20010×2iNCP12199908-200208

85710EMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85710-52030iNCP12199908-200208

85720DMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85720-52020iNCP12199908-200208

9010508291

main90105-08291

9016850040

main90168-50040

9153160610

main91531-60610

9155310820

main91553-10820

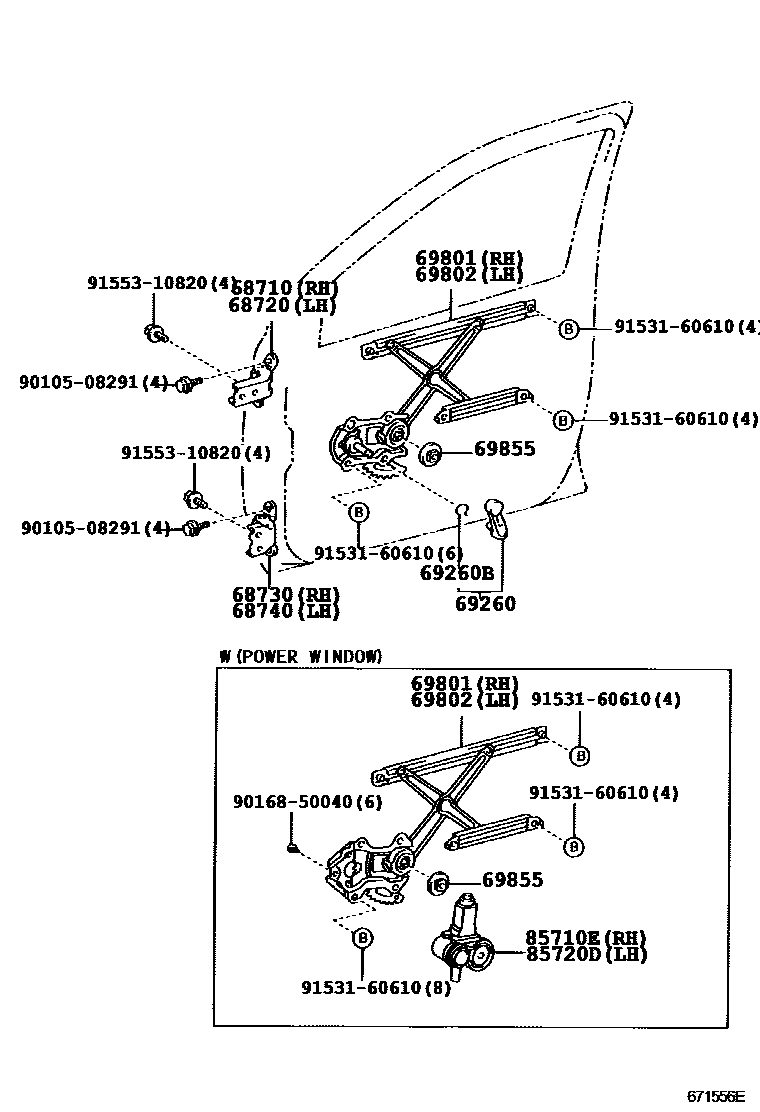

15 parts on this diagram · 1 diagram in section
