Toyota ECHO — FRONT DOOR PANEL & GLASS

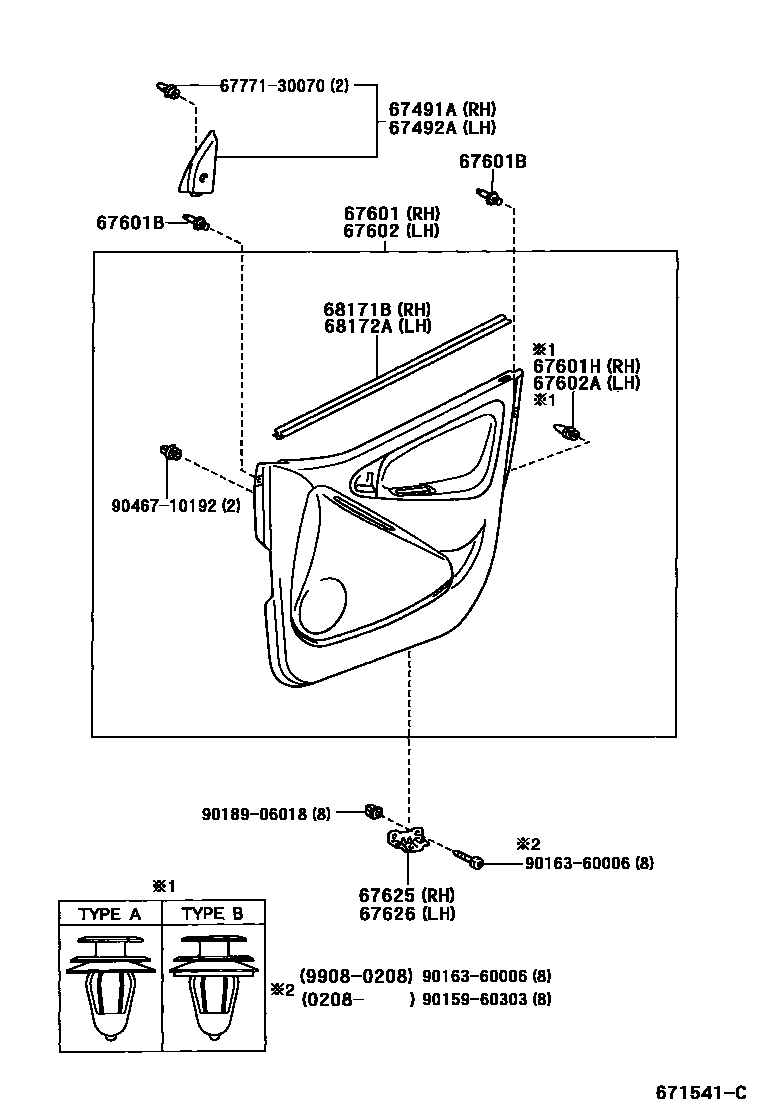

Parts diagram
67491AGARNISH, FRONT DOOR LOWER FRAME BRACKET, RH
main67491-52010i199908-200208
main67491-52020i199908-200208
W(OUTSIDE MIRROR=STICK ADJUSTABLE)
67492AGARNISH, FRONT DOOR LOWER FRAME BRACKET, LH
main67492-52010i199908-200208
main67492-52020i199908-200208
W(OUTSIDE MIRROR=STICK ADJUSTABLE)
67601BOARD SUB-ASSY, FRONT DOOR TRIM, RH
main67610-52570-B0i199908-200010
W(POWER WINDOW),SHADOW GRAY,TRIM1#
main67610-52570-B1i199908-200010
W(POWER WINDOW),AMETHYST,TRIM9#
main67610-52571-B0i200010-200208
W(POWER WINDOW),SHADOW GRAY,TRIM1#
main67610-52571-B1i200010-200208
W(POWER WINDOW),AMETHYST,TRIM9#
main67610-52580-B0i199908-200010
SHADOW GRAY,TRIM1#
main67610-52580-B1i199908-200010
AMETHYST,TRIM9#
main67610-52581-B0i200010-200208
SHADOW GRAY,TRIM1#
main67610-52581-B1i200010-200208
AMETHYST,TRIM9#
main67610-52581-B2i200212-200602
DK.GRAY,TRIM1#
main67610-52581-B3i200208-200212
SHADOW GRAY,TRIM1#
main67610-52581-E0i200208-200602
SANDAL WOOD,TRIM4#
main67610-52610-B0i199908-200010
W(POWER WINDOW),SHADOW GRAY,TRIM1#
main67610-52610-B1i199908-200010
W(POWER WINDOW),AMETHYST,TRIM9#
main67610-52611-B0i200010-200208
W(POWER WINDOW),SHADOW GRAY,TRIM1#
main67610-52611-B1i200010-200208
W(POWER WINDOW),AMETHYST,TRIM9#
main67610-52611-B2i200212-200602
W(POWER WINDOW),DK.GRAY,TRIM1#
main67610-52611-B3i200208-200212
W(POWER WINDOW),SHADOW GRAY,TRIM1#
main67610-52611-E0i200208-200602
W(POWER WINDOW),SANDAL WOOD,TRIM4#
main67610-52630-B0i199908-200010
SHADOW GRAY,TRIM1#
main67610-52630-B1i199908-200010
AMETHYST,TRIM9#
main67610-52631-B0i200010-200208
SHADOW GRAY,TRIM1#
main67610-52631-B1i200010-200208
AMETHYST,TRIM9#
main67610-52631-B2i200212-200602
DK.GRAY,TRIM1#
main67610-52631-B3i200208-200212
SHADOW GRAY,TRIM1#
main67610-52631-E0i200208-200602
SANDAL WOOD,TRIM4#
67601BCLIP(FOR FRONT DOOR TRIM BOARD)
main90467-07190-B0i199908-200207
SHADOW GRAY,TRIM1#
main90467-07190-B0i200208-200210
SHADOW GRAY,TRIM19
main90467-07190-B1i199908-200208
AMETHYST,TRIM9#
main90467-07190-B2i200208-200210
DK.GRAY,TRIM19
main90467-07190-B2i200210-200511
DK.GRAY,TRIM1#
main90467-07190-E1i200208-200511
SANDAL WOOD,TRIM4#
67601HRETAINER, DOOR TRIM, RH
main67771-12050i199908-200208
TYPE A:REFER TO ILLUSTRATION
main67771-12050i200208-200511
TYPE A
main67771-28020i200208-200511
TYPE B
main67771-28020i199908-200208
TYPE B:REFER TO ILLUSTRATION
67602BOARD SUB-ASSY, FRONT DOOR TRIM, LH
main67620-52530-B0i199908-200010
W(POWER WINDOW),SHADOW GRAY,TRIM1#
main67620-52530-B1i199908-200010
W(POWER WINDOW),AMETHYST,TRIM9#
main67620-52531-B0i200010-200208
W(POWER WINDOW),SHADOW GRAY,TRIM1#
main67620-52531-B1i200010-200208
W(POWER WINDOW),AMETHYST,TRIM9#
main67620-52580-B0i199908-200010
SHADOW GRAY,TRIM1#
main67620-52580-B1i199908-200010
AMETHYST,TRIM9#
main67620-52581-B0i200010-200208
SHADOW GRAY,TRIM1#
main67620-52581-B1i200010-200208
AMETHYST,TRIM9#
main67620-52581-B2i200212-200602
DK.GRAY,TRIM1#
main67620-52581-B3i200208-200212
SHADOW GRAY,TRIM1#
main67620-52581-E0i200208-200602
SANDAL WOOD,TRIM4#
main67620-52610-B0i199908-200010
W(POWER WINDOW),SHADOW GRAY,TRIM1#
main67620-52610-B1i199908-200010
W(POWER WINDOW),AMETHYST,TRIM9#
main67620-52611-B0i200010-200208
W(POWER WINDOW),SHADOW GRAY,TRIM1#
main67620-52611-B1i200010-200208
W(POWER WINDOW),AMETHYST,TRIM9#
main67620-52611-B2i200212-200602
W(POWER WINDOW),DK.GRAY,TRIM1#
main67620-52611-B3i200208-200212
W(POWER WINDOW),SHADOW GRAY,TRIM1#
main67620-52611-E0i200208-200602
W(POWER WINDOW),SANDAL WOOD,TRIM4#
main67620-52630-B0i199908-200010
SHADOW GRAY,TRIM1#
main67620-52630-B1i199908-200010
AMETHYST,TRIM9#
main67620-52631-B0i200010-200208
SHADOW GRAY,TRIM1#
main67620-52631-B1i200010-200208
AMETHYST,TRIM9#
main67620-52631-B2i200212-200602
DK.GRAY,TRIM1#
main67620-52631-B3i200208-200212
SHADOW GRAY,TRIM1#
main67620-52631-E0i200208-200602
SANDAL WOOD,TRIM4#
67602ARETAINER, DOOR TRIM, LH
main67771-12050i199908-200208
TYPE A:REFER TO ILLUSTRATION
main67771-12050i200208-200511
TYPE A
main67771-28020i200208-200511
TYPE B
main67771-28020i199908-200208
TYPE B:REFER TO ILLUSTRATION
67625BRACKET, FRONT DOOR TRIM, RH
main67625-52010i199908-200208
67626BRACKET, FRONT DOOR TRIM, LH
main67625-52010i199908-200208
68171BWEATHERSTRIP, FRONT DOOR GLASS, INNER RH
main68171-52070i199908-200202
main68171-52071i200202-200511
main68171-52080i199908-200202
main68171-52081i200202-200511
68172AWEATHERSTRIP, FRONT DOOR GLASS, INNER LH
main68172-52070i199908-200202
main68172-52071i200202-200511
main68172-52080i199908-200202
main68172-52081i200202-200511
6777130070WEATHERSTRIP, BACK DOOR TRIM, RH
main67771-30070
9015960303
main90159-60303
9016360006
main90163-60006
9018906018
main90189-06018
9046710192
main90467-10192

16 parts on this diagram · 3 diagrams in section

FRONT DOOR PANEL & GLASS for Toyota ECHO

This section contains 53 genuine Toyota parts for the FRONT DOOR PANEL & GLASS system of the Toyota ECHO. Key components include: PANEL SUB-ASSY, FRONT DOOR, RH, PANEL SUB-ASSY, FRONT DOOR, LH, PANEL, FRONT DOOR, OUTER RH, PANEL, FRONT DOOR, OUTER LH, STOPPER, FRONT DOOR GLASS, UPPER NO.2.
