Toyota ECHO — FRONT DOOR LOCK & HANDLE

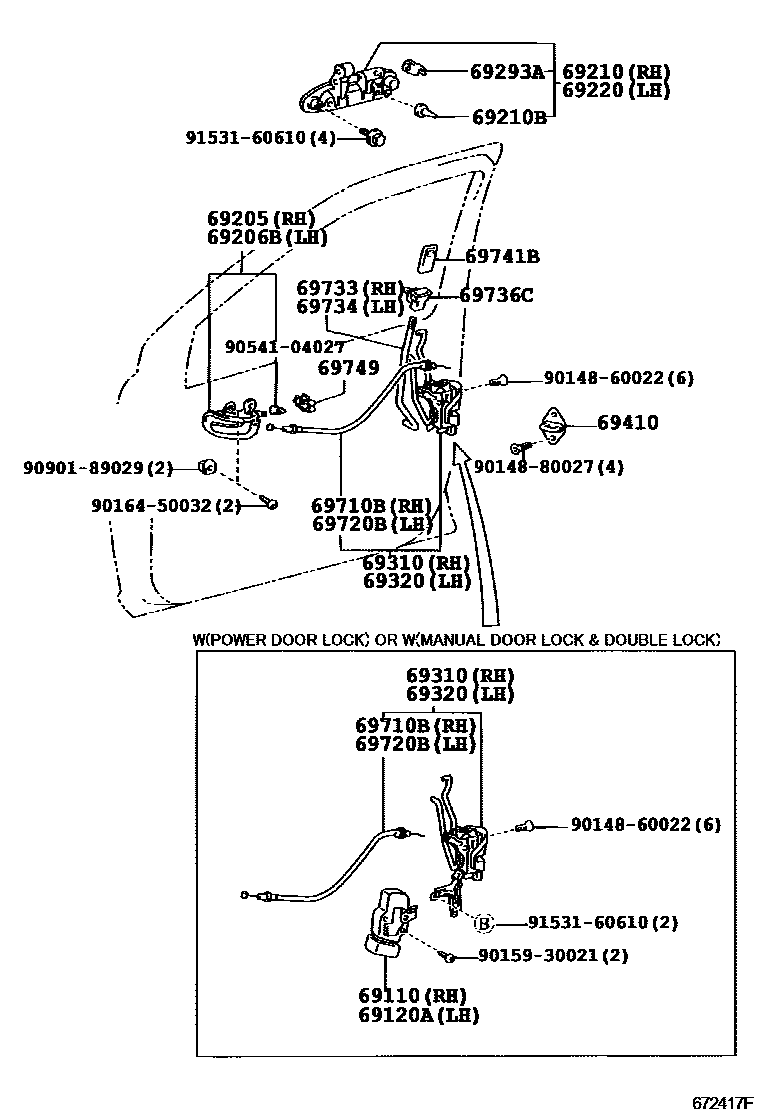

Parts diagram
69110ACTUATOR ASSY, FRONT DOOR LOCK, RH
main69110-52010i199908-200208
W(POWER DOOR LOCK)
main69110-52020i200208
W(POWER DOOR LOCK & DOUBLE DOOR LOCK)
main69110-52060i199908-199909
W(MANUAL DOOR LOCK & DOUBLE DOOR LOCK)
main69110-52061i200208
W(MANUAL DOOR LOCK & DOUBLE DOOR LOCK)
69120AACTUATOR ASSY, FRONT DOOR LOCK, LH
main69120-52030i199908-200208
W(POWER DOOR LOCK)
main69120-52040i199908-199909
W(MANUAL DOOR LOCK & DOUBLE DOOR LOCK)
main69120-52041i199909-200208
W(MANUAL DOOR LOCK & DOUBLE DOOR LOCK)
69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
main69205-52010-B0i199908-200208
SHADOW GRAY,TRIM1#
main69205-52010-B1i199908-200208
AMETHYST,TRIM9#
main69205-52020-B5i200208-200212
SILVER,TRIM1#,CHROME PLATED
main69205-52020-B6i200212
SILVER,TRIM1#,CHROME PLATED
main69205-52020-B7i200208
SILVER,TRIM4#,CHROME PLATED
main69205-52040-B3i200208-200212
SHADOW GRAY,TRIM1#
main69205-52040-B5i200212-200511
DK.GRAY,TRIM1#
main69205-52040-E1i200208-200511
SANDAL WOOD,TRIM4#
69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
main69206-52010-B0i199908-200208
SHADOW GRAY,TRIM1#
main69206-52010-B1i199908-200208
AMETHYST,TRIM9#
main69206-52020-B5i200208-200212
SILVER,TRIM1#,CHROME PLATED
main69206-52020-B6i200212
SILVER,TRIM1#,CHROME PLATED
main69206-52020-B7i200208
SILVER,TRIM4#,CHROME PLATED
main69206-52040-B3i200208-200212
SHADOW GRAY,TRIM1#
main69206-52040-B5i200212-200511
DK.GRAY,TRIM1#
main69206-52040-E1i200208-200511
SANDAL WOOD,TRIM4#
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
main69210-52010i200208-200602
NO PAINT REQ.
main69210-52020-A0i199908-200101
SUPER WHITE 2,040
main69210-52020-A1i200208-200602
WHITE,068
main69210-52020-B0i199908-200208
SILVER ME,199
main69210-52020-B2i200208-200602
GRAY M.M.,1E3
main69210-52020-B3i200208-200602
SILVER M.M.,1E7
main69210-52020-C0i200208-200602
BLACK MC.,209
main69210-52020-D2i199908-200208
SUPER RED 5,3P0
main69210-52020-D4i200208-200602
RED M.M.,3P1
main69210-52020-E0i200208-200602
BEIGE ME.,4R0
main69210-52020-F1i199908-200208
CHAMPAGNE ME.,583
main69210-52020-G0i200208-200602
DK.GREEN MC.,6R4
main69210-52020-H1i200208-200602
LT.AQUA ME.OP.,761
main69210-52020-J0i199908-200101
DK.BLUE MC.,8K8
main69210-52020-J2i199908-200208
BLUE ME.,8P2
main69210-52020-J4i200101-200208
DK.BLUE M.M.,8P4
69210BCUSHION(FOR FRONT DOOR OUTSIDE HANDLE)
main90541-04018×4i199908-200208
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
main69220-52010i200208-200602
BLACK(LESS COLOR)
main69220-52020-A0i199908-200101
SUPER WHITE 2,040
main69220-52020-A1i200208-200602
WHITE,068
main69220-52020-B0i199908-200208
SILVER ME,199
main69220-52020-B2i200208-200602
GRAY M.M.,1E3
main69220-52020-B3i200208-200602
SILVER M.M.,1E7
main69220-52020-C0i200208-200602
BLACK MC.,209
main69220-52020-D2i199908-200208
SUPER RED 5,3P0
main69220-52020-D4i200208-200602
RED M.M.,3P1
main69220-52020-E0i200208-200602
BEIGE ME.,4R0
main69220-52020-F1i199908-200208
CHAMPAGNE ME.,583
main69220-52020-G0i200208-200602
DK.GREEN MC.,6R4
main69220-52020-H1i200208-200602
LT.AQUA ME.OP.,761
main69220-52020-J0i199908-200101
DK.BLUE MC.,8K8
main69220-52020-J2i199908-200208
BLUE ME.,8P2
main69220-52020-J4i200101-200208
DK.BLUE M.M.,8P4
69293ASNAP, FRONT DOOR OUTSIDE HANDLE
main69293-12030i200208-200602
LH
main69293-12040i199908-200208
RH
69310LOCK ASSY, FRONT DOOR, RH
main69310-52100i200208
main69310-52110i199908-200208
main69310-52120i199908-200208
W(POWER DOOR LOCK) OR W(SECURITY SYSTEM)
main69310-52130i199908-200208
W(POWER DOOR LOCK) OR W(SECURITY SYSTEM)
main69310-52310i200208
W(POWER DOOR LOCK) OR W(SECURITY SYSTEM)
main69310-52320i200208
W(POWER DOOR LOCK) OR W(SECURITY SYSTEM)
69320LOCK ASSY, FRONT DOOR, LH
main69320-52100i200208
main69320-52110i200208
main69320-52120i199908-200208
W(POWER DOOR LOCK) OR W(SECURITY SYSTEM)
main69320-52130i199908-200208
W(POWER DOOR LOCK) OR W(SECURITY SYSTEM)
main69320-52290i200208
W(POWER DOOR LOCK) OR W(SECURITY SYSTEM)
main69320-52300i200208
W(POWER DOOR LOCK) OR W(SECURITY SYSTEM)
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
main69410-47010×2i199908-200208
69710BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, RH
main69710-52010i199908-200208
main69710-52020i200208
69720BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, LH
main69710-52010i199908-200208
main69710-52020i199908-200208
69733LINK, FRONT DOOR INSIDE LOCKING, RH
main69733-52010i199908-200208
main69733-52020i200208
69734LINK, FRONT DOOR INSIDE LOCKING, LH
main69734-52010i199908-200208
main69734-52020i200208
69736CGUIDE, FRONT DOOR LOCKING LINK
main69736-12130×2i200208
69741BKNOB, FRONT DOOR LOCK CONTROL
main69741-87003-B7×2i199908-200208
AMETHYST,TRIM9#
main69741-87003-B8×2i200208-200511
DK.GRAY,TRIM1#
main69741-87003-E1×2i200208-200511
SANDAL WOOD,TRIM4#
main69741-87003-P0×2i199908-200208
SHADOW GRAY,TRIM1#
69749CLAMP, FRONT DOOR LOCK LINK
main69749-52010×2i199908-200208
9014860022
main90148-60022
9014880027
main90148-80027
9015930021
main90159-30021
9016450032
main90164-50032
9054104027
main90541-04027
9090189029
main90901-89029
9153160610
main91531-60610

25 parts on this diagram · 1 diagram in section
