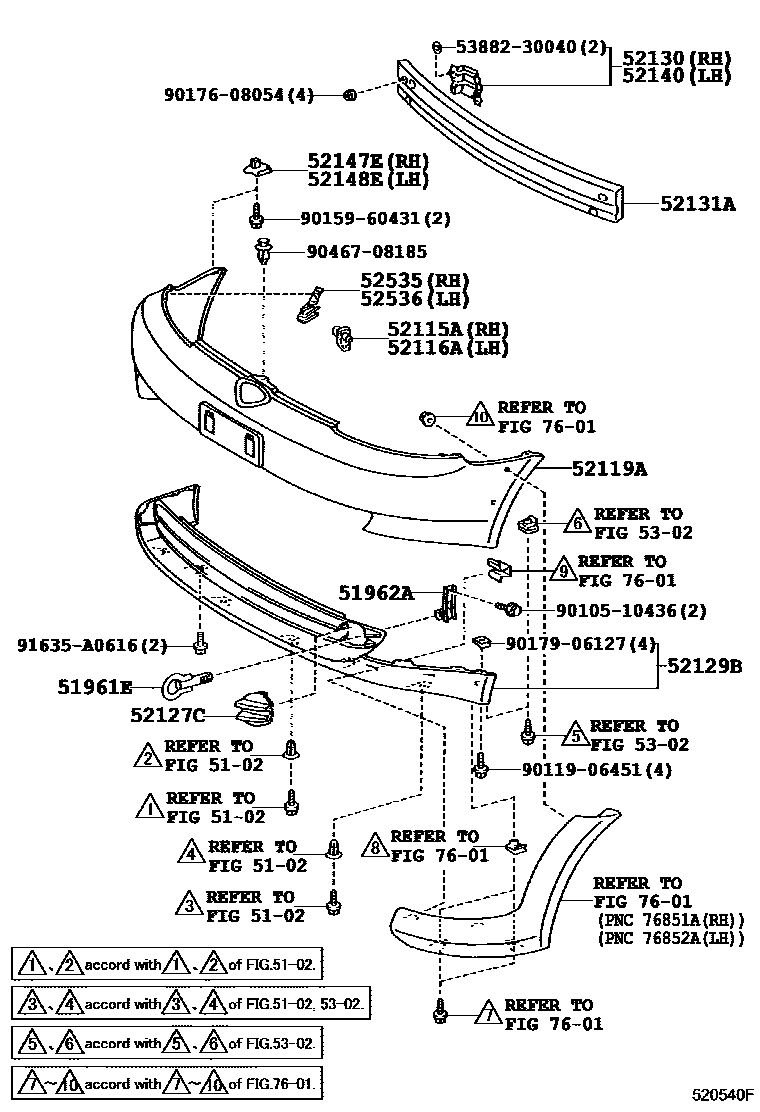

Toyota ECHO — FRONT BUMPER & BUMPER STAY
5102SUSPENSION CROSSMEMBER & UNDER COVER
52119ACOVER, FRONT BUMPER
W(FRONT SPOILER)
W(FRONT SPOILER)
52127CCOVER, FRONT BUMPER HOLE
WHITE,068
GRAY M.M.,1E3
SILVER M.M.,1E7
BLACK MC.,209
RED M.M.,3P1
BEIGE ME.,4R0
DARK GREEN MC.,6R4
LT.AQUA ME.OP.,761
DK.BLUE M.M.,8P4
52129BCOVER, FRONT BUMPER, LOWER
W(FRONT SPOILER)
52130BRACKET ASSY, FRONT BUMPER SIDE MOUNTING, RH
52131AREINFORCEMENT, FRONT BUMPER
52140BRACKET ASSY, FRONT BUMPER SIDE MOUNTING, LH
52147EBRACKET, FRONT BUMPER MOUNTING, RH
52148EBRACKET, FRONT BUMPER MOUNTING, LH
52535RETAINER, FRONT BUMPER SIDE, RH
52536RETAINER, FRONT BUMPER SIDE, LH
5302HOOD & FRONT FENDER
7601MUDGUARD & SPOILER
5388230040PACKING, FRONT FENDER MAIN
main53882-30040
9010510436
main90105-10436
9011906451
main90119-06451
9015960431
main90159-60431
9017608054
main90176-08054
9017906127
main90179-06127
9046708185
main90467-08185
91635A0616
main91635-A0616
25 parts on this diagram · 2 diagrams in section
FRONT BUMPER & BUMPER STAY for Toyota ECHO
This section contains 34 genuine Toyota parts for the FRONT BUMPER & BUMPER STAY system of the Toyota ECHO. Key components include: SUSPENSION CROSSMEMBER & UNDER COVER, HOOK, FRONT, HOOK, FRONT LH, SUPPORT, FRONT BUMPER SIDE, RH, SUPPORT, FRONT BUMPER SIDE, LH.
