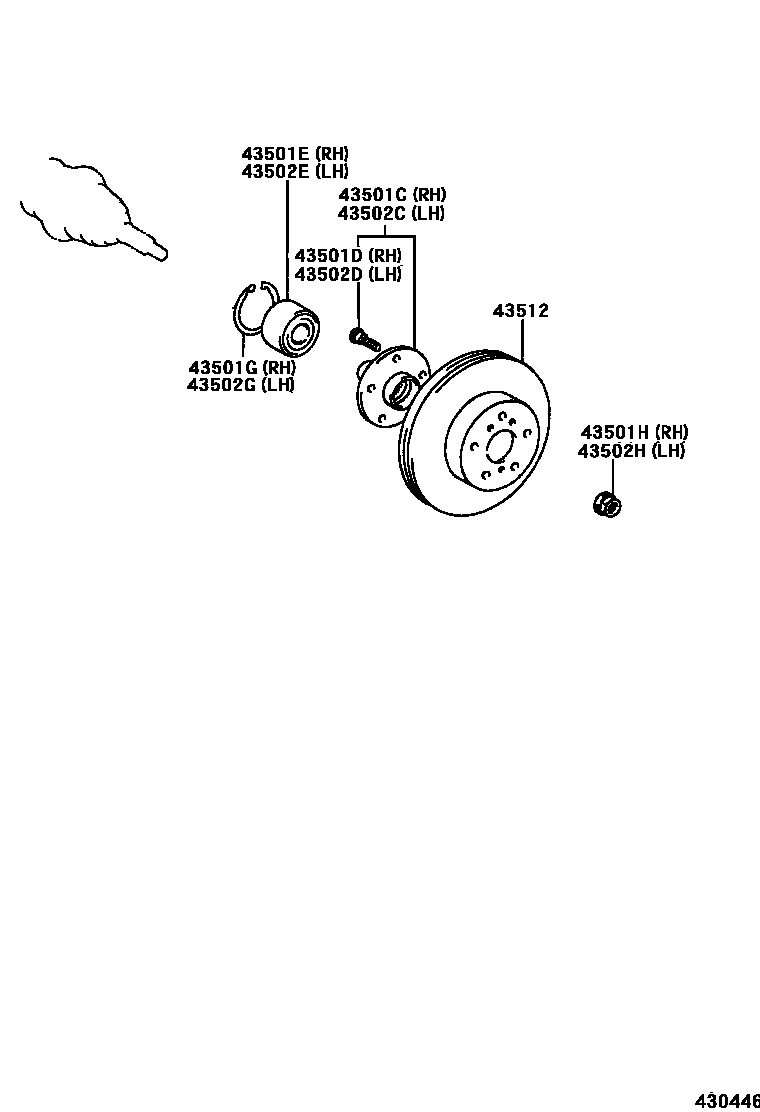

Toyota ECHO — FRONT AXLE HUB

43501CHUB SUB-ASSY, FRONT AXLE, RH

main43502-52010iNCP12199908-200208

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90942-02049×4iNCP12199908-200208

43501EBEARING (FOR FRONT AXLE HUB RH)

main90369-38021iNCP12199908-200208

43501GRING, HOLE SNAP (FOR FRONT AXLE HUB RH)

main90521-77001iNCP12199908-200208

43501HNUT (FOR FRONT AXLE SHAFT RH)

main90177-22001iNCP12199908-200208

43502CHUB SUB-ASSY, FRONT AXLE, LH

main43502-52010iNCP12199908-200208

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90942-02049×4iNCP12199908-200208

43502EBEARING (FOR FRONT AXLE HUB LH)

main90369-38021iNCP12200208

43502GRING, HOLE SNAP (FOR FRONT AXLE HUB LH)

main90521-77001iNCP12199908-200208

43502HNUT (FOR FRONT AXLE SHAFT LH)

main90177-22001iNCP12200208

43512DISC, FRONT

main43512-52020×2iNCP12199908-200001

W(ABS)

main43512-52040×2iNCP12200008-200208

sub43512-52090

main43512-52050×2iNCP12199908-200001

W/O(ABS)

11 parts on this diagram · 1 diagram in section
