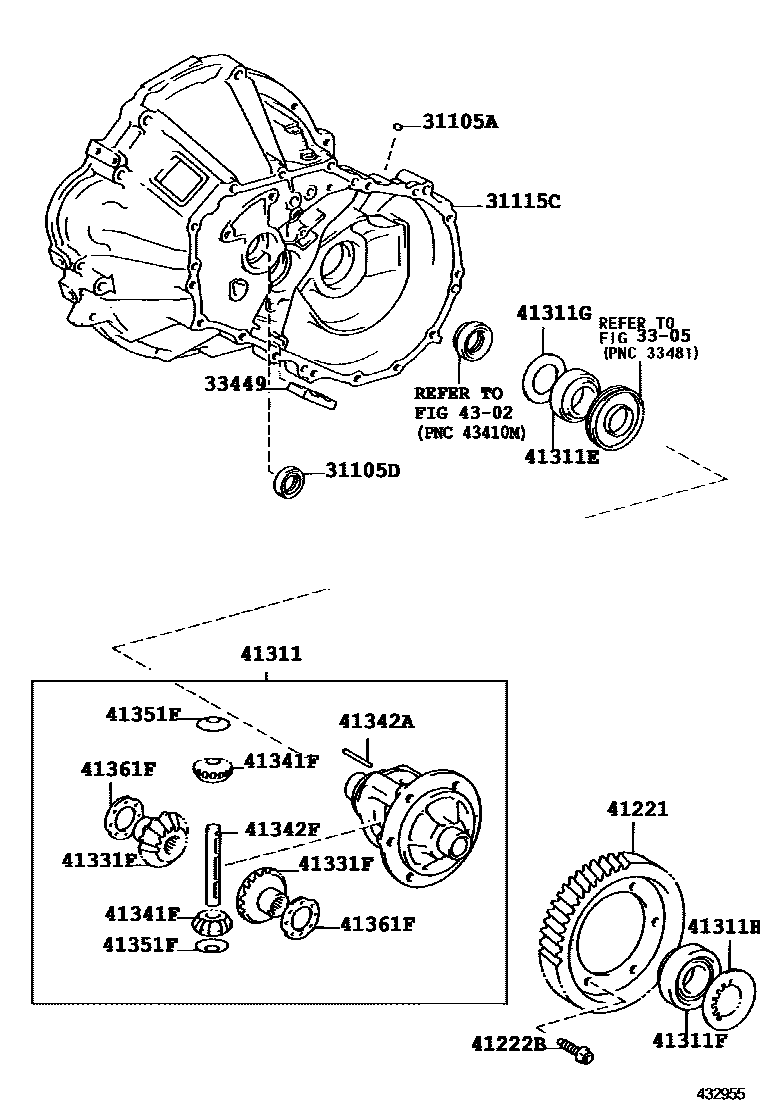

Toyota ECHO — FRONT AXLE HOUSING & DIFFERENTIAL
31105APLUG, TIGHT(FOR FRONT TRANSAXLE CASE)
31105DSEAL, OIL, NO.1(FOR FRONT TRANSAXLE CASE)
31115CCASE, FRONT TRANSAXLE(MTM)
3305TRANSMISSION GEAR (MTM)
33449MAGNET, TRANSMISSION
41222BBOLT (FOR FRONT DIFFERENTIAL RING GEAR SET)
41311CASE, FRONT DIFFERENTIAL
41311EBEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE FRONT)
41311FBEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE REAR)
41311GWASHER, PLATE (FOR FRONT DIFFERENTIAL CASE FRONT)
41311HWASHER, PLATE (FOR FRONT DIFFERENTIAL CASE REAR)
41342APIN, STRAIGHT (FOR FRONT DIFFERENTIAL PINION SHAFT)
41342FSHAFT, FRONT DIFFERENTIAL PINION, NO.1
41351FWASHER, FRONT DIFFERENTIAL PINION THRUST
41361FWASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1
4302FRONT DRIVE SHAFT
19 parts on this diagram · 2 diagrams in section
FRONT AXLE HOUSING & DIFFERENTIAL for Toyota ECHO
This section contains 36 genuine Toyota parts for the FRONT AXLE HOUSING & DIFFERENTIAL system of the Toyota ECHO. Key components include: PLUG, TIGHT(FOR FRONT TRANSAXLE CASE), SEAL, OIL, NO.1(FOR FRONT TRANSAXLE CASE), CASE, FRONT TRANSAXLE(MTM), TRANSMISSION GEAR (MTM), MAGNET, TRANSMISSION.
