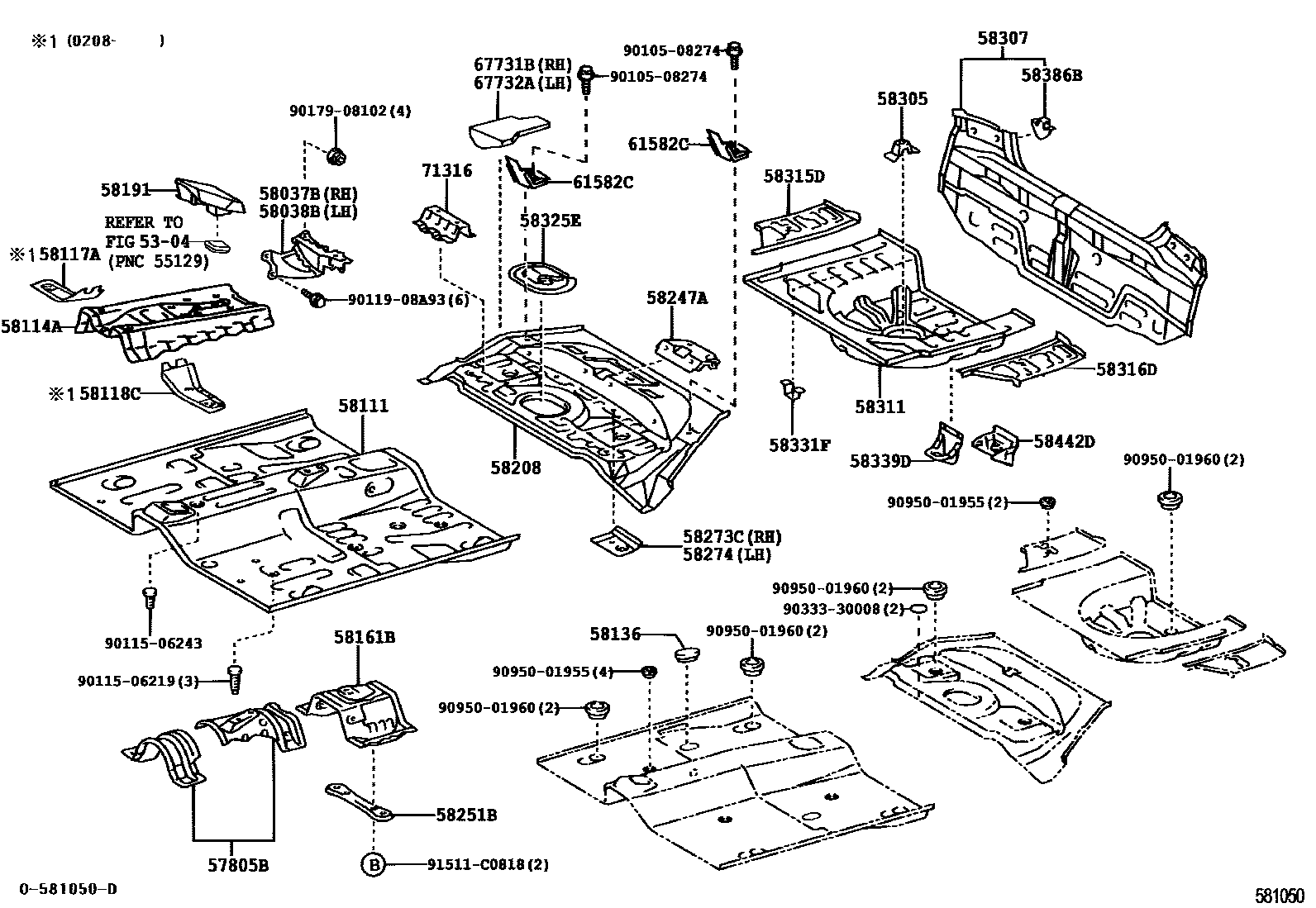

Toyota ECHO — FLOOR PAN & LOWER BACK PANEL
5304FRONT FENDER APRON & DASH PANEL
57805BREINFORCEMENT SUB-ASSY, BELT ANCHOR, RH
58037BREINFORCE, CENTER PILLAR TO FLOOR, RH
58038BREINFORCE, CENTER PILLAR TO FLOOR, LH
58111PAN, FRONT FLOOR
58114AREINFORCEMENT, FRONT FLOOR PANEL
58117AREINFORCEMENT, FRONT FLOOR SIDE, RH
58118CREINFORCEMENT, FRONT FLOOR SIDE, LH
58136COVER, FRONT FLOOR HOLE
58161BREINFORCEMENT, BELT ANCHOR TO FLOOR PAN
58191FOOTREST, FRONT FLOOR
58208PAN, CENTER FLOOR
W(FIXED TYPE REAR SEAT)
W(6:4 SPRIT REAR SEAT)
W(FIXED TYPE REAR SEAT)
W(FIXED TYPE REAR SEAT)
58247AREINFORCEMENT, REAR SEAT CUSHION HINGE, RH
W(FIXED TYPE REAR SEAT)
W(6:4 SPRIT REAR SEAT)
58251BBRACE, FLOOR PANEL, FRONT
58273CREINFORCEMENT, BELT ANCHOR TO CENTER FLOOR
58274REINFORCEMENT, BELT ANCHOR TO CENTER FLOOR, NO.1
58305BRACKET SUB-ASSY, SPARE WHEEL CLAMP
58307PANEL SUB-ASSY, BODY LOWER BACK
58311PAN, REAR FLOOR
58315DEXTENSION, REAR FLOOR PAN, RH
58316DEXTENSION, REAR FLOOR PAN, LH
58325ECOVER, REAR FLOOR SERVICE HOLE
58331FBRACKET, REAR FLOOR HEAT INSULATOR, NO.3
58339DBRACKET, JACK UP
58386BBRACKET, REAR BUMPER COVER, NO.2
58442DCOVER, JACK
61582CBRACKET, REAR SEAT, NO.2
67731BSPACER, SIDE TRIM, NO.1
67732ASPACER, SIDE TRIM, NO.2
9010508274
main90105-08274
9011506219
main90115-06219
9011506243
main90115-06243
9011908A93
main90119-08A93
9017908102
main90179-08102
9033330008
main90333-30008
9095001955
main90950-01955
9095001960
main90950-01960
91511C0818
main91511-C0818
39 parts on this diagram · 1 diagram in section
FLOOR PAN & LOWER BACK PANEL for Toyota ECHO
This section contains 39 genuine Toyota parts for the FLOOR PAN & LOWER BACK PANEL system of the Toyota ECHO. Key components include: FRONT FENDER APRON & DASH PANEL, REINFORCEMENT SUB-ASSY, BELT ANCHOR, RH, REINFORCE, CENTER PILLAR TO FLOOR, RH, REINFORCE, CENTER PILLAR TO FLOOR, LH, PAN, FRONT FLOOR.
