Toyota ECHO — ENGINE OIL PUMP

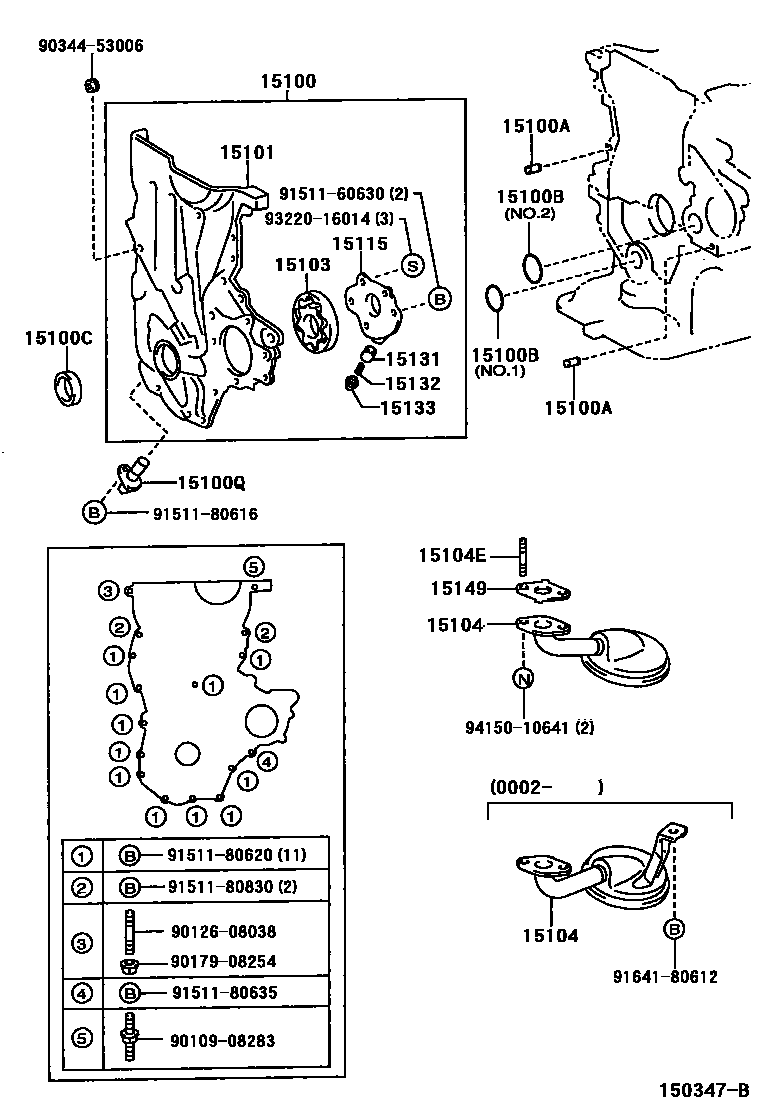

Parts diagram

15100PUMP ASSY, OIL

main15100-21040199908-200208

15100APIN, RING(FOR OIL PUMP SET)

main90253-08003199908-200208

15100BRING, O(FOR OIL PUMP)

main90301-31012199908-200208

main90301-42006199908-200208

15100CSEAL(FOR OIL PUMP)

main90311-25021199908-200511

15100QSENSOR, CRANK POSITION

main90919-05045199908-200208

15101BODY SUB-ASSY, OIL PUMP

main15111-21040199908-200208

15103GEAR SET, OIL PUMP

main15103-21020199908-200208

15104STRAINER SUB-ASSY, OIL

main15104-21020199908-200002

main15104-21021200002-200511

15104EBOLT, STUD(FOR OIL STRAINER)

main90126-06021199908-200208

15115COVER, OIL PUMP

main15115-21030199908-200208

15131VALVE, OIL PUMP RELIEF

main15131-21020199908-200208

15132SPRING, OIL PUMP RELIEF VALVE

main15132-21020199908-200208

15133PLUG, OIL PUMP RELIEF VALVE

main15133-21020199908-200405

main15133-21030200405

15149GASKET, OIL STRAINER FLANGE

main16258-21010199908-200302

main16258-21030200302

9010908283

main90109-08283

9012608038

main90126-08038

9017908254

main90179-08254

9034453006

main90344-53006

9151160630

main91511-60630

9151180616

main91511-80616

9151180620

main91511-80620

9151180635

main91511-80635

9151180830

main91511-80830

9164180612

main91641-80612

9322016014

main93220-16014

9415010641

main94150-10641

26 parts on this diagram · 2 diagrams in section

ENGINE OIL PUMP for Toyota ECHO

This section contains 30 genuine Toyota parts for the ENGINE OIL PUMP system of the Toyota ECHO. Key components include: PUMP ASSY, OIL, PIN, RING(FOR OIL PUMP SET), RING, O(FOR OIL PUMP), SEAL(FOR OIL PUMP), SENSOR, CRANK POSITION.
