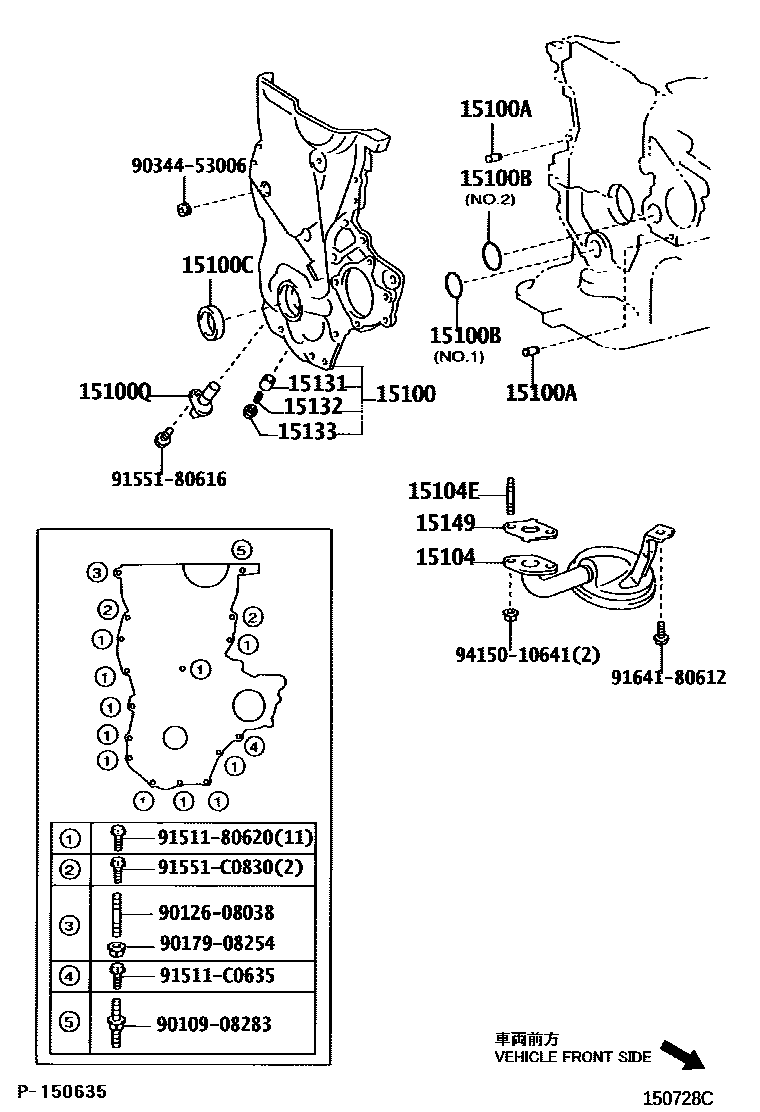

Toyota ECHO — ENGINE OIL PUMP
15100PUMP ASSY, OIL
15100APIN, RING(FOR OIL PUMP SET)
15100CSEAL(FOR OIL PUMP)
15100QSENSOR, CRANK POSITION
15104STRAINER SUB-ASSY, OIL
15104EBOLT, STUD(FOR OIL STRAINER)
15131VALVE, OIL PUMP RELIEF
15132SPRING, OIL PUMP RELIEF VALVE
15149GASKET, OIL STRAINER FLANGE
9010908283
main90109-08283
9012608038
main90126-08038
9017908254
main90179-08254
9034453006
main90344-53006
9151180620
main91511-80620
91511C0635
main91511-C0635
9155180616
main91551-80616
91551C0830
main91551-C0830
9164180612
main91641-80612
9415010641
main94150-10641
21 parts on this diagram · 1 diagram in section
ENGINE OIL PUMP for Toyota ECHO
This section contains 21 genuine Toyota parts for the ENGINE OIL PUMP system of the Toyota ECHO. Key components include: PUMP ASSY, OIL, PIN, RING(FOR OIL PUMP SET), RING, O(FOR OIL PUMP), SEAL(FOR OIL PUMP), SENSOR, CRANK POSITION.
