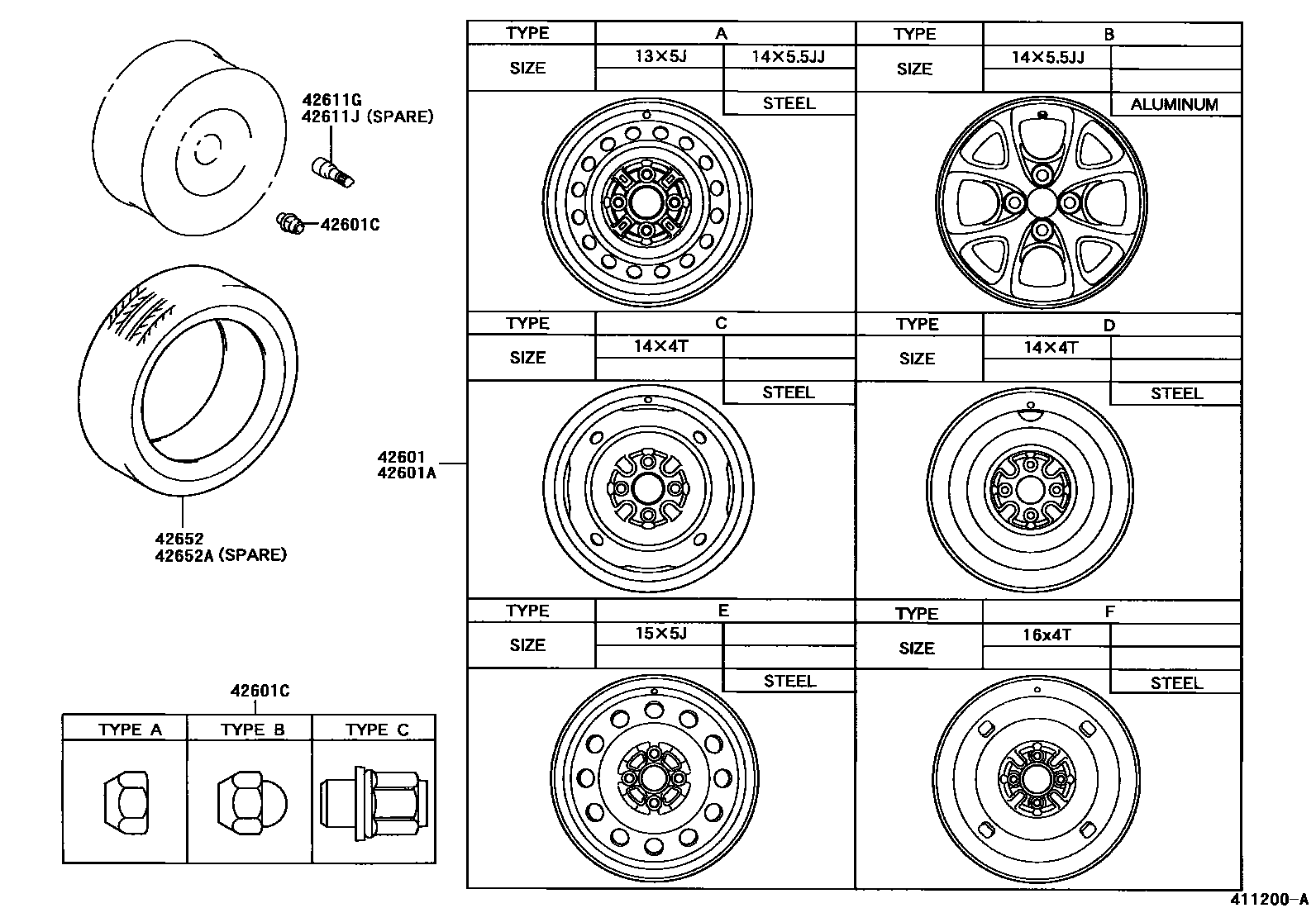

Toyota ECHO — DISC WHEEL & WHEEL CAP

42601WHEEL, DISC

main42611-52010×4i199908-200008

13X5J,SILVER,TYPE A:REFER TO ILLUSTRATION

main42611-52020×4i199908-200008

13X5JJ,BLACK, #,TYPE A:REFER TO ILLUSTRATION

main42611-52030×4i200208-200602

14X5.5J, #,TYPE A:REFER ILLUST.

main42611-52040×4i200010-200208

14X5.5JJ,OFFSET 45,#,TYPE B:REFER TO ILLUSTRATION

main42611-52330×4i200208-200602

15X5J,TYPE E:REFER ILLUST.

42601AWHEEL, DISC (FOR SPARE)

main42611-16340i199908-200008

14X4T,TYPE C:REFER TO ILLUSTRATION

main42611-1A260i200008-200208

14X4T,TYPE D:REFER TO ILLUSTRATION

main42611-52400i200208-200602

16X4T,TYPE F:REFER ILLUST.

42601CNUT, HUB (FOR AXLE)

main90942-01007×16i200208

TYPE A:REFER TO ILLUSTRATION

main90942-01021×16i199908-200208

TYPE B:REFER TO ILLUSTRATION

main90942-01033×16i200208

TYPE C:REFER TO ILLUSTRATION

main90942-01082×16i200308

TYPE B:REFER TO ILLUSTRATION

42611GVALVE (FOR TUBELESS TIRE)

main90942-05009×4i200010-200208

42611JVALVE (FOR TUBELESS TIRE SPARE)

main90942-05009i199908-200208

42652TIRE

main42652-16440×4i199908-200008

155SR13

main42652-52110×4i199908-200005

175/65R14

main42652-52300×4i200208-200602

185/60R15,*D/L

main42652-52850×4i200510-200602

175/65R14 *B/S

main42652-52860×4i200510-200602

175/65R14 MICHELIN

main42652-52870×4i200510-200602

185/60R15 *B/S

42652ATIRE (FOR SPARE)

main42652-13120i200510-200602

T125/70D16,*D/L

main42652-16220i200208-200602

T115/70D14

main42652-2B440i200510-200602

T125/70D16,*B/S

main42652-52880i200510-200602

T115/70D14 *D/L

main42652-52890i200510-200602

T115/70D14 *T/Y

main42652-52A00i200510-200602

T115/70D14 *Y/H

7 parts on this diagram · 3 diagrams in section

DISC WHEEL & WHEEL CAP for Toyota ECHO

This section contains 58 genuine Toyota parts for the DISC WHEEL & WHEEL CAP system of the Toyota ECHO. Key components include: WHEEL, DISC, WHEEL, DISC (FOR SPARE), NUT, HUB (FOR AXLE), ORNAMENT SUB-ASSY, WHEEL HUB, VALVE (FOR TUBELESS TIRE).
