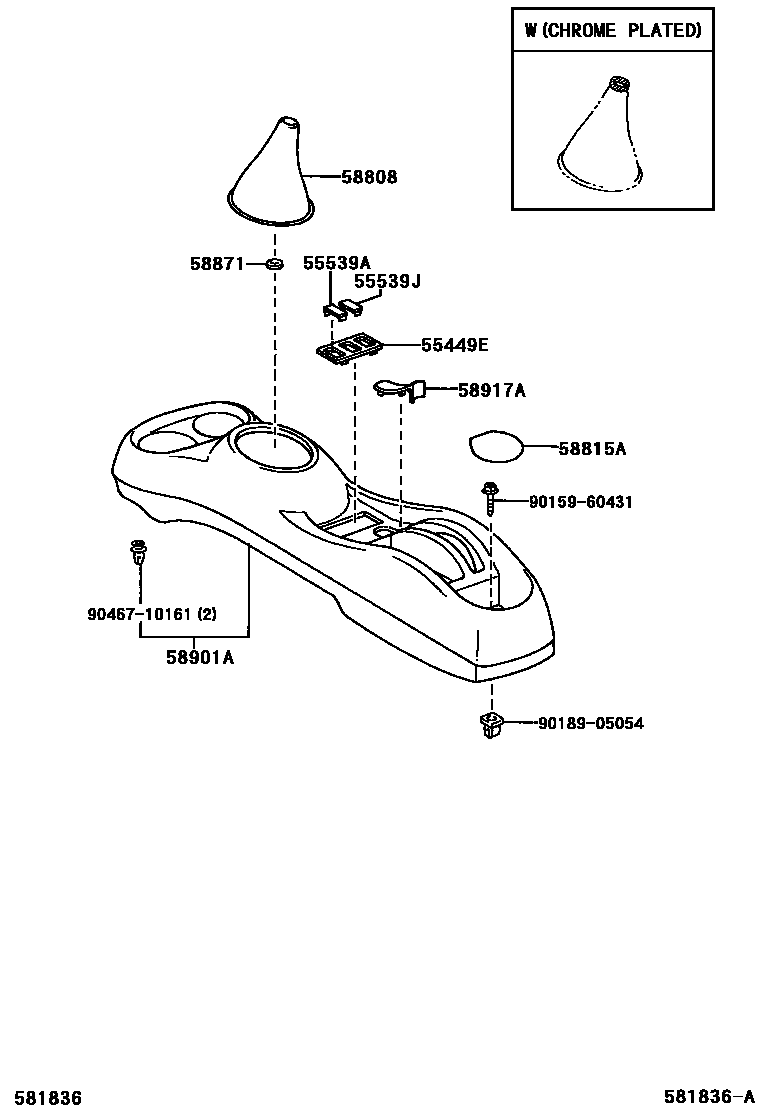

Toyota ECHO — CONSOLE BOX & BRACKET

55449EBASE, SWITCH

main55449-52010-B3iNCP13..5D200306-200508

DK.GRAY,TRIM9#

55539ACOVER, SPARE SWITCH HOLE

main55539-32010-P3iNCP13..5D200306-200508

DK.GRAY,TRIM9#

sub55539-32030

55539JCOVER, SPARE SWITCH HOLE

main55539-32010-P3iNCP13..5D200306-200508

DK.GRAY,TRIM9#

sub55539-32030

58808COVER SUB-ASSY, SHIFTING HOLE

main58808-52020-B4iNCP13..MTM200306-200508

DK.GRAY,TRIM9#

main58808-52050-B0iNCP13..5D..MTM200306-200508

REFER TO ILLUSTRATION : W(CHROME PLATED),DK.GRAY,TRIM9#

58815ACARPET, CONSOLE BOX

main58815-52010iNCP13200306

58871CUSHION, CONSOLE BOX

main58871-20060iNCP13..5D..MTM200306

58901ABOX SUB-ASSY, CONSOLE, REAR

main58911-52010-B3iNCP13200306-200508

DK.GRAY,TRIM9#

main58911-52020-B2iNCP13..5D200306-200508

REFER TO ILLUSTRATION : W(CHROME PLATED),DK.GRAY,TRIM9#

58917ACOVER, CONSOLE BOX, REAR

main58917-52010-B3iNCP13200306-200508

DK.GRAY,TRIM9#

9015960431

main90159-60431

9018905054

main90189-05054

9046710161

main90467-10161

11 parts on this diagram · 1 diagram in section
