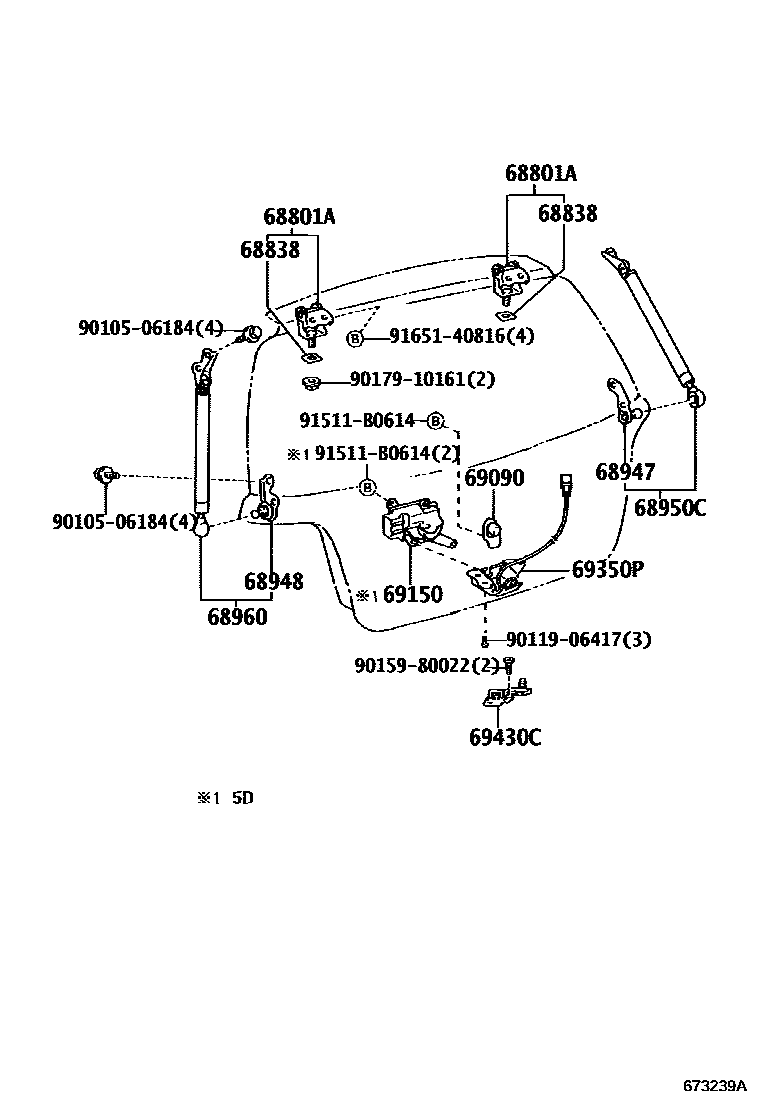

Toyota ECHO — BACK DOOR LOCK & HANDLE

68801AHINGE SUB-ASSY, BACK DOOR, UPPER

main68801-52010×2iNCP13200306-200508

68838PAD, BACK DOOR HINGE, NO.1

main68838-10020×2iNCP13200306

T=1.0

main68838-52010×2iNCP13200306

T=0.5

68947BRACKET, BACK DOOR DAMPER STAY, LOWER RH

main68947-52010iNCP13200306

68948BRACKET, BACK DOOR DAMPER STAY, LOWER LH

main68948-52010iNCP13200306

68950CSTAY ASSY, BACK DOOR, RH

main68950-59056iNCP13..3D200311

main68950-59066iNCP13200306

W(REAR WIPER)

68960STAY ASSY, BACK DOOR, LH

main68960-59016iNCP13..3D200311

main68960-59026iNCP13200306

W(REAR WIPER)

69090HANDLE ASSY, BACK DOOR, OUTSIDE

main69090-52040iNCP13200306-200508

69150ACTUATOR ASSY, BACK DOOR LOCK

main69150-52011iNCP13..5D200306

69350PLOCK ASSY, BACK DOOR, W/COURTESY LAMP SWITCH

main69350-52170iNCP13200306-200508

69430CSTRIKER ASSY, BACK DOOR LOCK

main69430-52020iNCP13200306

9010506184

main90105-06184

9011906417

main90119-06417

9015980022

main90159-80022

9017910161

main90179-10161

91511B0614

main91511-B0614

9165140816

main91651-40816

16 parts on this diagram · 1 diagram in section
