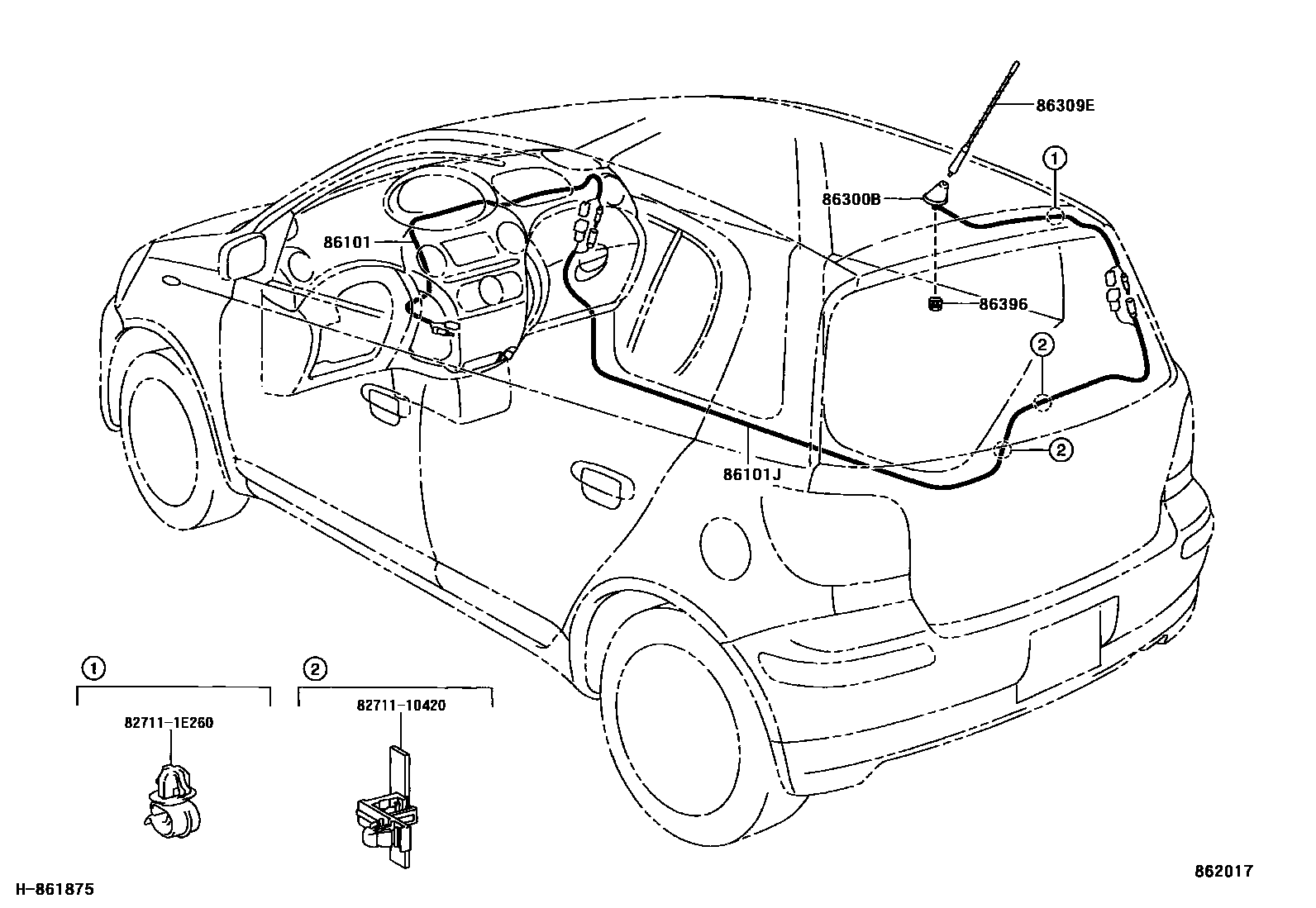

Toyota ECHO — ANTENNA

86101CORD SUB-ASSY, ANTENNA

main86101-52120iNCP13200306

86101JCORD SUB-ASSY, ANTENNA, NO.2

main86101-52271iNCP13200306

86300BANTENNA ASSY, AMPLIFIER, NO.1

main86300-52210iNCP13200306

86309EPOLE SUB-ASSY, ROOF ANTENNA

main86309-52040iNCP13200306

86396NUT, ANTENNA

main86396-20040iNCP13200306

8271110420WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-10420

827111E260WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1E260

7 parts on this diagram · 1 diagram in section
