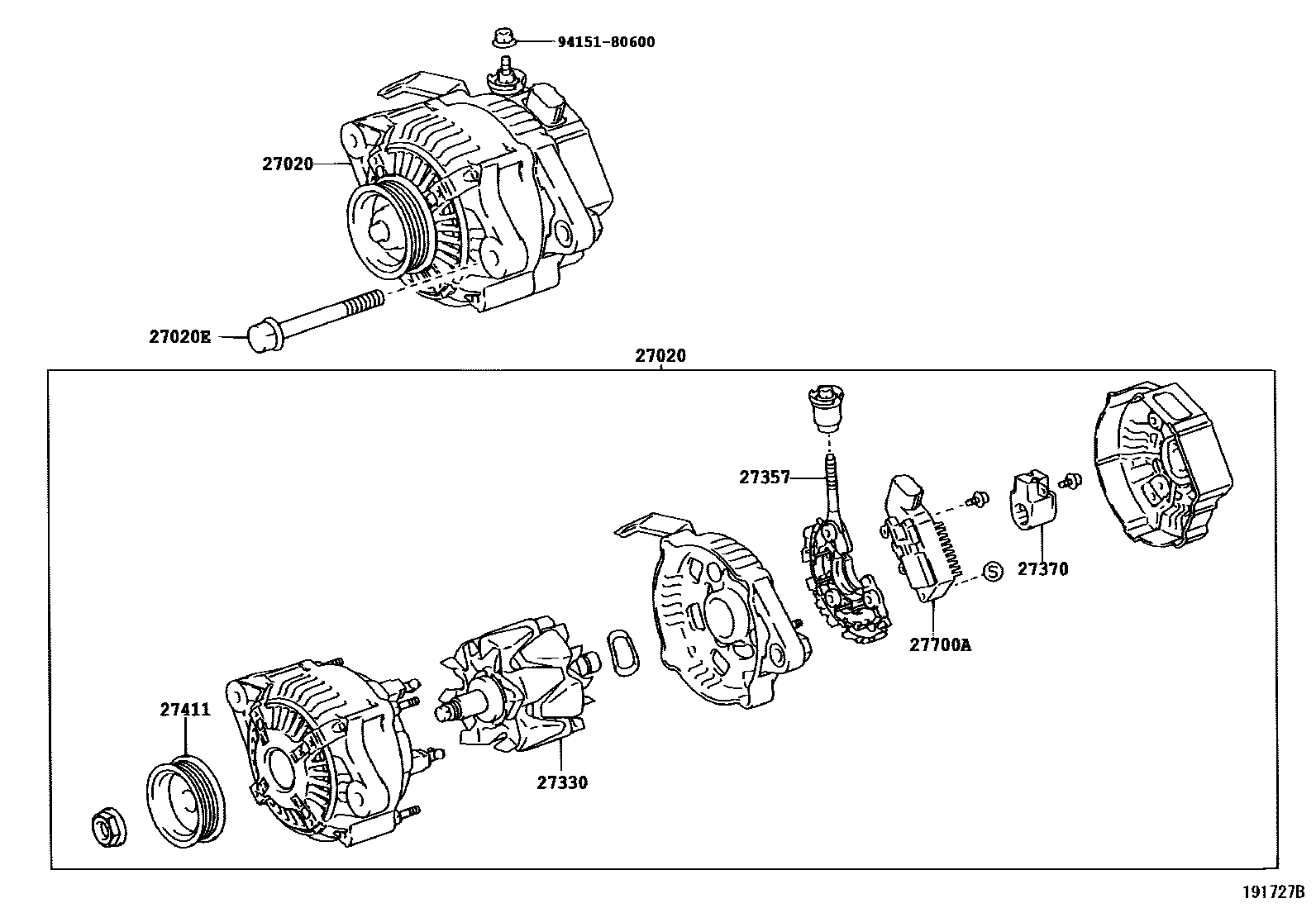

Toyota ECHO — ALTERNATOR

27020ALTERNATOR ASSY

main27060-21031i1NZFE..NCP13200306

12V 80A

27020EBOLT(FOR ALTERNATOR)

main90105-10075i1NZFE..NCP13200306-200508

27330ROTOR ASSY, ALTERNATOR

main27330-16390i1NZFE..NCP13200306

27357HOLDER, ALTERNATOR, W/RECTIFIER

main27357-22050i1NZFE..NCP13200306

27370HOLDER ASSY, ALTERNATOR BRUSH

main27370-75060i1NZFE..NCP13200306

27411PULLEY, ALTERNATOR

main27411-21030i1NZFE..NCP13200306

27700AREGULATOR ASSY, GENERATOR

main27700-21010i1NZFE..NCP13200306

9415180600

main94151-80600

8 parts on this diagram · 1 diagram in section
