Toyota ECHO — ABS & VSC

89516WIRE, SKID CONTROL SENSOR

main89516-52010iNCP12199908-200208

RH

main89516-52020iNCP12199908-200208

LH

89542SENSOR, SPEED, FRONT RH

main04895-52010iNCP12199908-200007

main89542-52010iNCP12200007-200208

89543SENSOR, SPEED, FRONT LH

main04895-52020iNCP12199908-200007

main89543-52010iNCP12200007-200208

89544SENSOR, SKID CONTROL

main89544-12010×2iNCP12200301-200602

KOYO,*369

main89544-52010×2iNCP12199908-200208

KOYO,*369

main89544-52020×2iNCP12199908-200208

NSK,*369

main89544-52030×2iNCP12200301-200602

NSK,*369

8826652100CLAMP, AIR SUSPENSION SENSOR, NO.1

main88266-52100

8826652110CLAMP, AIR SUSPENSION SENSOR, NO.1

main88266-52110

91611B0614

main91611-B0614

91651B0618

main91651-B0618

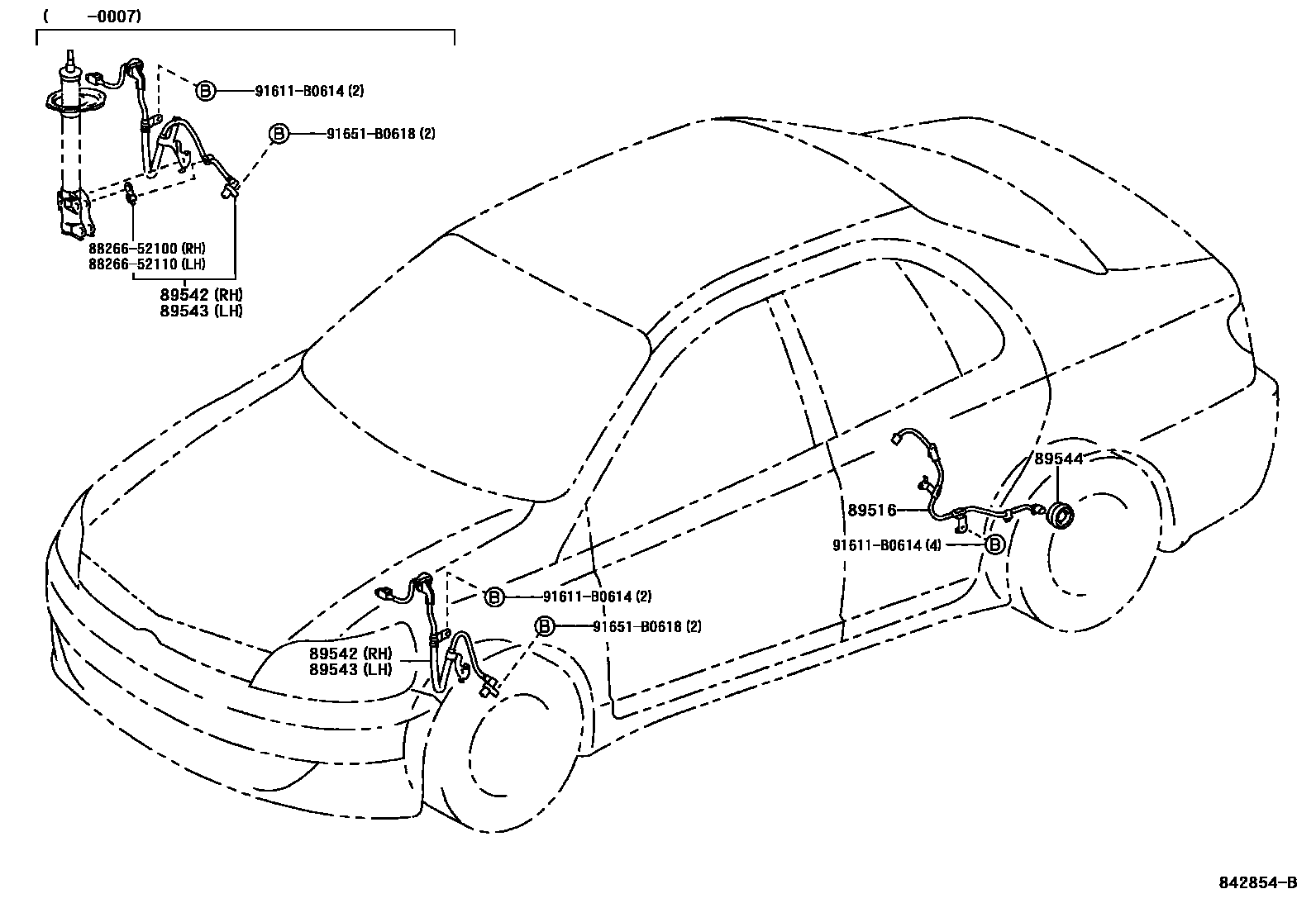

8 parts on this diagram · 1 diagram in section
