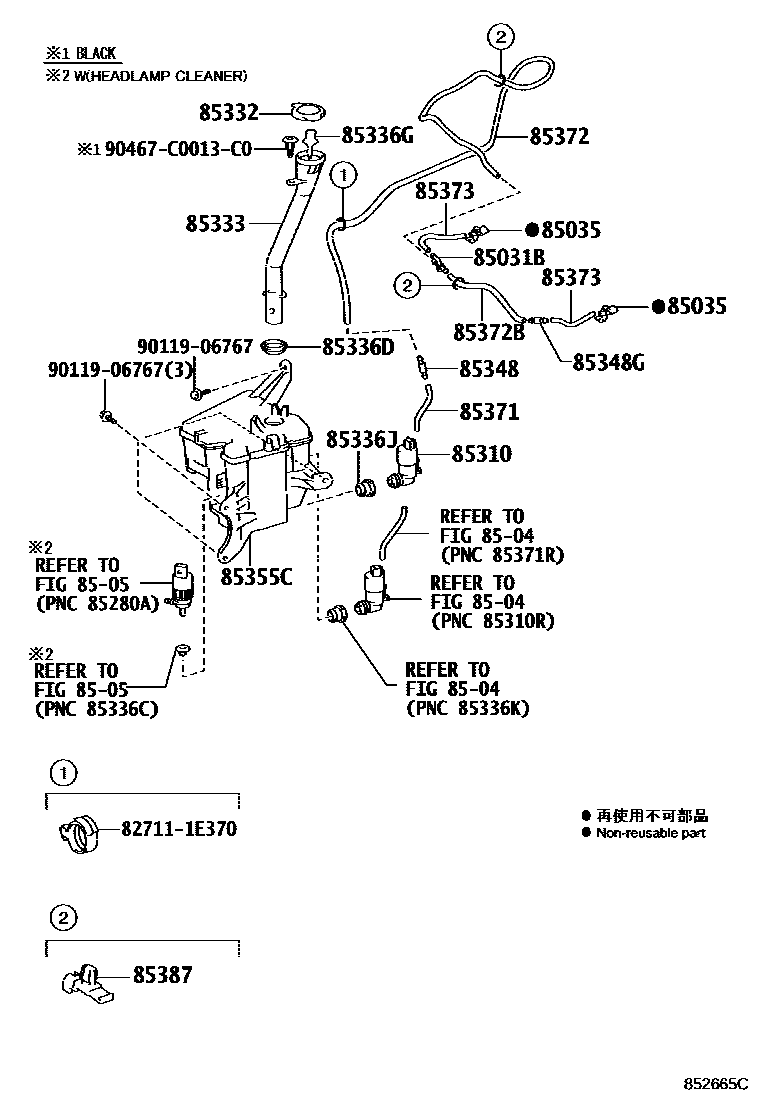

Toyota E'Z — WINDSHIELD WASHER

85031BVALVE SUB-ASSY, WASHER

main85376-0F040i201106

85035NOZZLE SUB-ASSY, WASHER

main85381-30110×2i201106

ANGLE 0

main85381-30150×2i201106

ANGLE +2

8504REAR WASHER

→ Go to FIG 85-04

8505HEADLAMP CLEANER

→ Go to FIG 85-05

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85330-0F010i201106-201611

85332CAP, WINDSHIELD WASHER JAR

main85356-0F020i201106-201205

85333FILTER, WINDSHIELD WASHER JAR

main85359-0F020i201106-201205

main85359-0F030i201106

85336DPACKING, WINDSHIELD WASHER JAR

main85365-0F021i201106-201205

85336GGAGE, WATER LEVEL

main85313-0F010i201106

85336JPROTECTOR, WASHER JAR

main85365-0F020i201106-201205

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85357-0F020i201106-201205

85348GJOINT, WINDSHIELD WASHER HOSE, NO.2

main85357-0F020i201106

85355CJAR, WASHER, C

main85355-0F020i201106-201205

main85355-0F030i201106

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90069-46043i201106-201205

L=120

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90069-46045i201106-201205

L=1820

main90069-46066i201205-201404

L=1944

85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2

main90069-46044i201106-201205

L=400

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90099-33080×2i201106

L=1450(*H,L=170)

85387CLAMP NO.1 (FOR WINDSEIELD WASHER)

main85387-0F040×2i201106-201205

827111E370WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1E370

9011906767

main90119-06767

90467C0013C0

main90467-C0013C0

21 parts on this diagram · 1 diagram in section

WINDSHIELD WASHER for Toyota E'Z

This section contains 21 genuine Toyota parts for the WINDSHIELD WASHER system of the Toyota E'Z. Key components include: VALVE SUB-ASSY, WASHER, NOZZLE SUB-ASSY, WASHER, REAR WASHER, HEADLAMP CLEANER, MOTOR AND PUMP ASSY, WINDSHIELD WASHER.
