Toyota E'Z — TRANSAXLE ASSY(CVT)
30400TRANSAXLE ASSY, CONTINUOUSLY VARIABLE
K311
K111
30400NPLUG, REFILL(CVT)
REFER TO ILLUST.
REFER TO ILLUST.
30400PGASKET, REFILL PLUG(CVT)
33493CCOOLER, TRANSMISSION OIL
3402TORQUE CONVERTER, FRONT OIL PUMP(CVT)
35106LPAN SUB-ASSY, TRANSAXLE OIL(CVT)
35106PBOLT(FOR TRANSAXLE OIL PAN)
35125FPLUG, OVERFLOW(CVT)
35125GGASKET, OVERFLOW PLUG(CVT)
35141DHOSE(FOR BREATHER PLUG)
35141ERING, O(FOR BREATHER PLUG)
35141FPLUG, BREATHER, NO.1(CVT)
NO.1
NO.2
NO.2
NO.1
35150BPLUG ASSY, TRANSMISSION CASE
35150CRING, O (FOR TRANSMISSION CASE PLUG)
35168CGASKET, TRANSAXLE OIL PAN(CVT)
35394DMAGNET, OIL CLEANER(CVT)
35572CLEVER, TRANSMISSION CONTROL SHAFT
8202WIRING & CLAMP
8401SWITCH & RELAY & COMPUTER
8410OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION
9034112025
main90341-12025
9043012221
main90430-12221
9046400952
main90464-00952
9155180820
main91551-80820
9413000802
main94130-00802
9451200800
main94512-00800

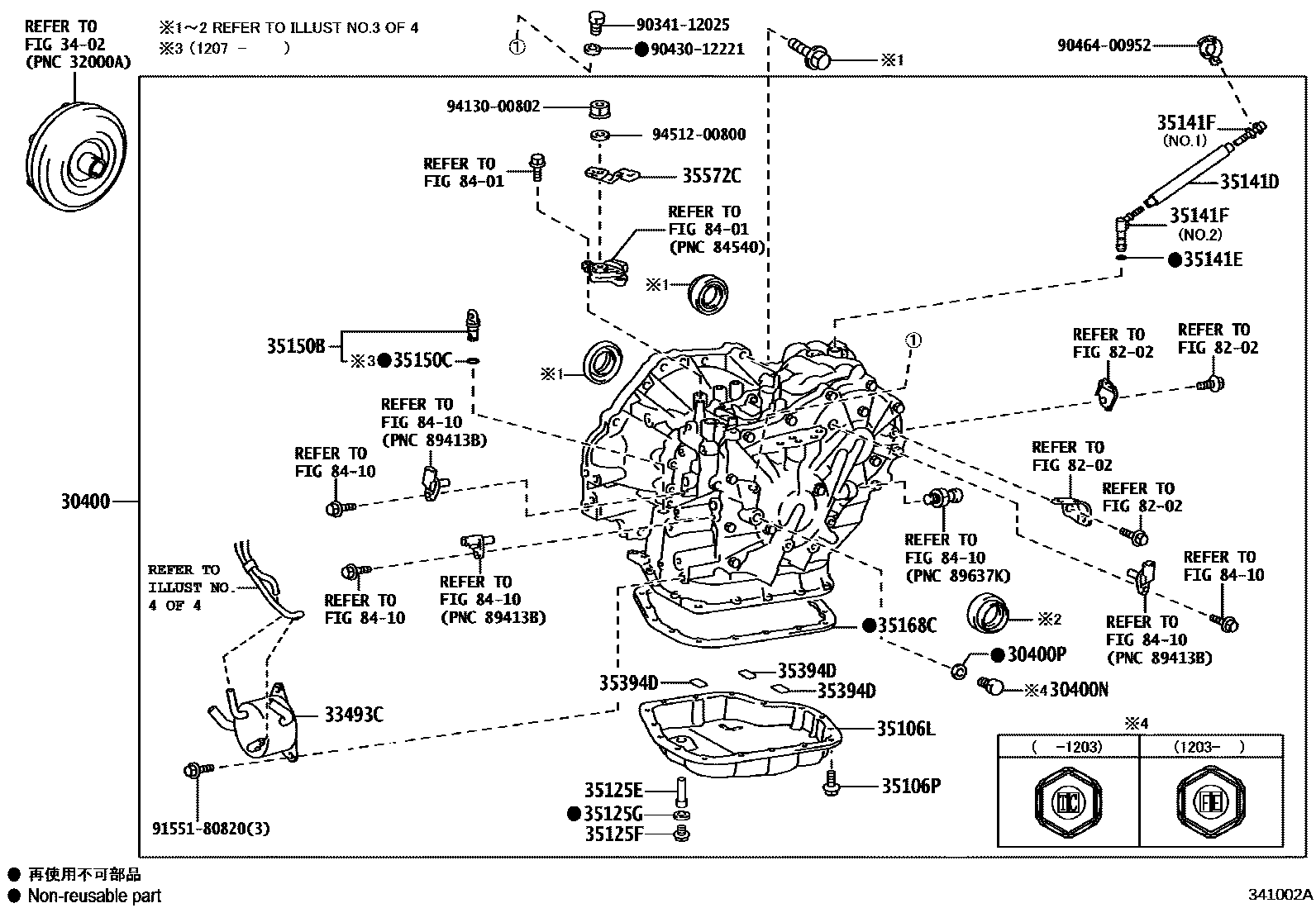

27 parts on this diagram · 7 diagrams in section
TRANSAXLE ASSY(CVT) for Toyota E'Z
This section contains 114 genuine Toyota parts for the TRANSAXLE ASSY(CVT) system of the Toyota E'Z. Key components include: HOSE, WATER BY-PASS, NO.6, CLIP(FOR WATER BY-PASS HOSE NO.6), CLAMP, HOSE(FOR WATER HOSE), TRANSAXLE ASSY, CONTINUOUSLY VARIABLE, BOLT(FOR TRANSAXLE & ENGINE SETTING).
