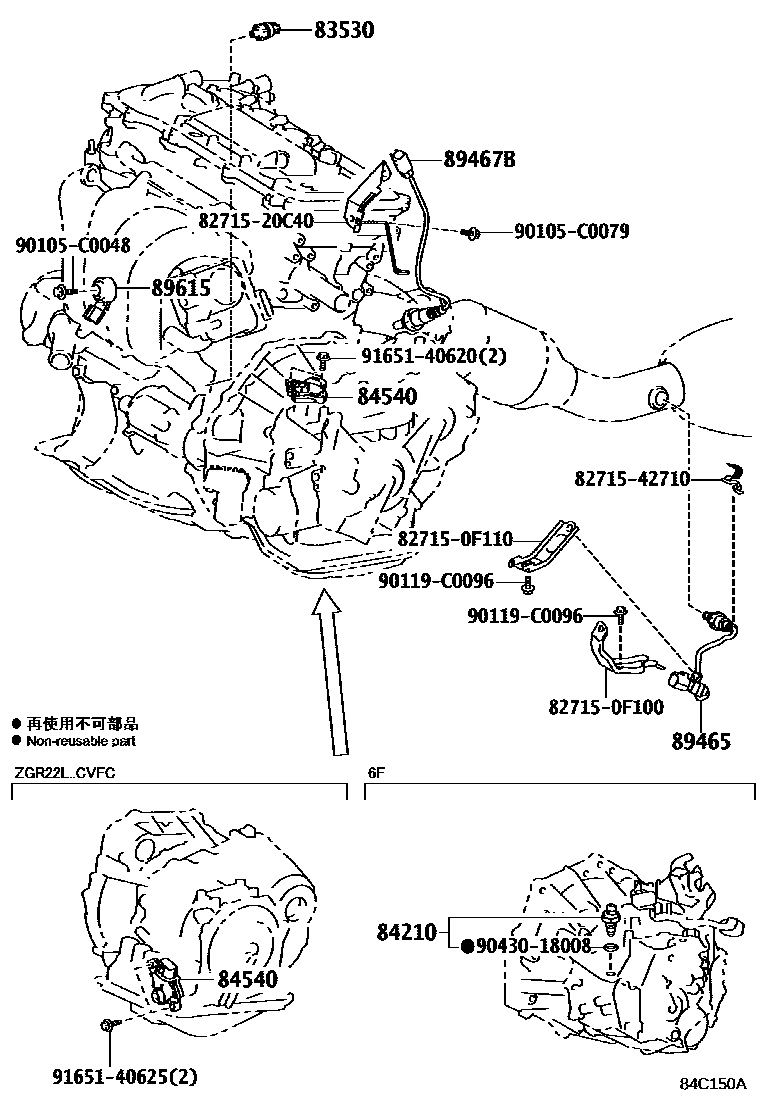

Toyota E'Z — SWITCH & RELAY & COMPUTER

0001 1ENGINE & TRANSMISSION 0002 1ENGINE ROOM 1/2 0003 1ENGINE ROOM 2/2 0004 1COWL 0005 1INSTRUMENT PANEL 0006 1STEERING 0007 1SEAT 0008 1DOOR,ROOF,FLOOR&BACK DOOR

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-60020iZGR2#201106

84210SWITCH ASSY, BACK-UP LAMP

main84210-12040iZGR20,21..6F201106-201204

main84210-52050iZGR20,21..6F201205-201612

84540SWITCH ASSY, NEUTRAL START

main84540-52070iZGR21,22..CVFC201106-201612

89465SENSOR, OXYGEN

main89465-02300iZGR2#201106

89467BSENSOR, AIR FUEL RATIO

main89467-0R070iZGR2#201309

main89467-52060iZGR2#201106-201309

89615SENSOR, KNOCK CONTROL

main89615-02020iZGR2#201106

MARK 89615-02020

main89615-20090iZGR2#201106

MARK 89615-20090

827150F100BRACKET,WIRING HARNESS CLAMP

main82715-0F100

827150F110BRACKET,WIRING HARNESS CLAMP

main82715-0F110

8271520C40BRACKET,WIRING HARNESS CLAMP

main82715-20C40

8271542710BRACKET,WIRING HARNESS CLAMP

main82715-42710

90105C0048

main90105-C0048

90105C0079

main90105-C0079

90119C0096

main90119-C0096

9043018008

main90430-18008

9165140620

main91651-40620

9165140625

main91651-40625

16 parts on this diagram · 8 diagrams in section
