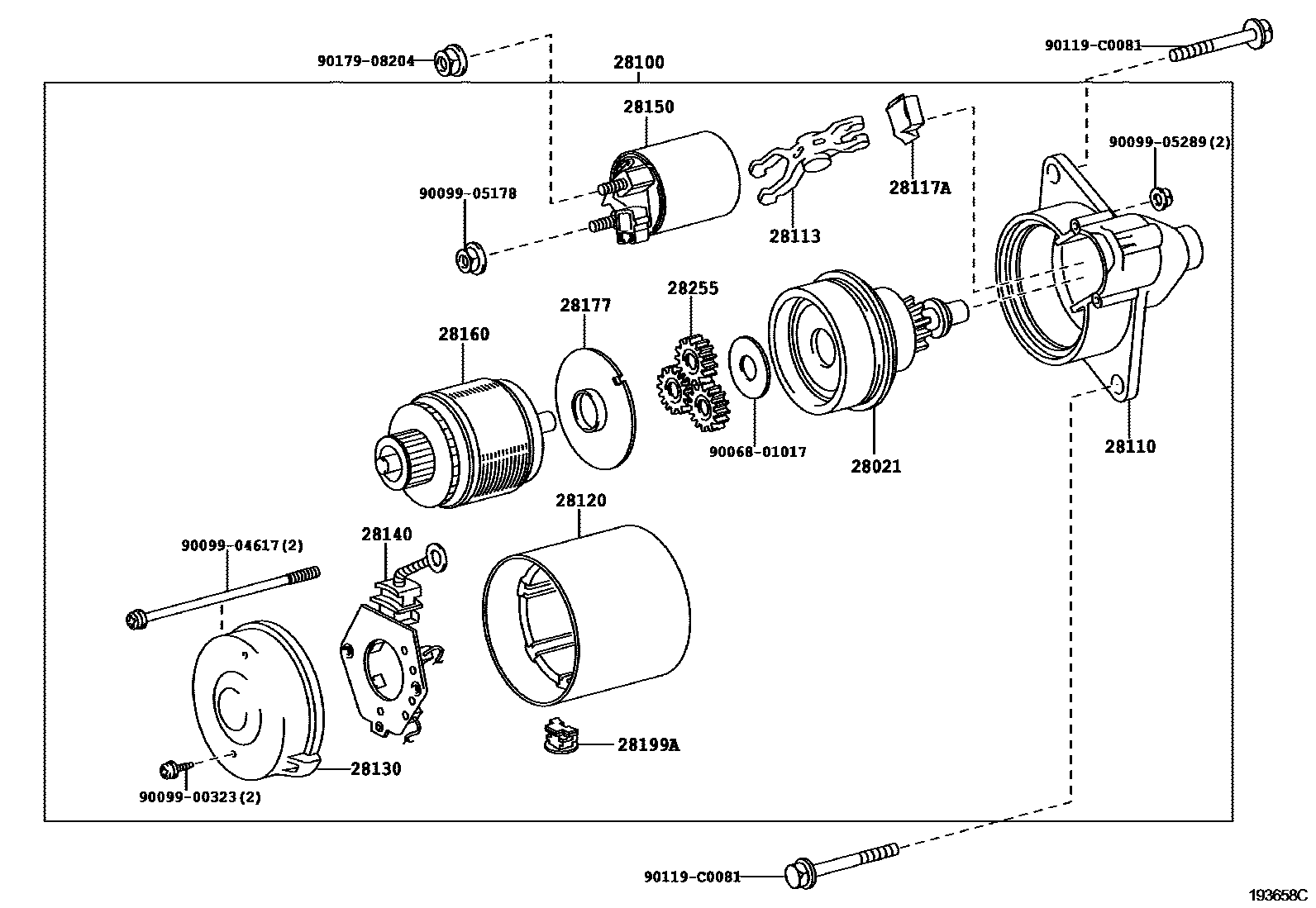

Toyota E'Z — STARTER
28100STARTER ASSY
12V 1.6KW
12V 1.6KW
28110HOUSING ASSY, STARTER DRIVE
28113LEVER, STARTER PINION DRIVE
28117ASEAL, RUBBER
28130FRAME ASSY, STARTER COMMUTATOR END
28177PLATE(FOR STARTER ARMATURE)
28199APROTECTOR, DUST STARTER
28255GEAR, PLANET
9006801017
main90068-01017
9009900323
main90099-00323
9009904617
main90099-04617
9009905178
main90099-05178
90119C0081
main90119-C0081
9017908204
main90179-08204
14 parts on this diagram · 3 diagrams in section
STARTER for Toyota E'Z
This section contains 25 genuine Toyota parts for the STARTER system of the Toyota E'Z. Key components include: CLUTCH SUB-ASSY, STARTER CENTER BEARING, STARTER ASSY, HOUSING ASSY, STARTER DRIVE, LEVER, STARTER PINION DRIVE, PIN, STARTER DRIVE LEVER SET.
