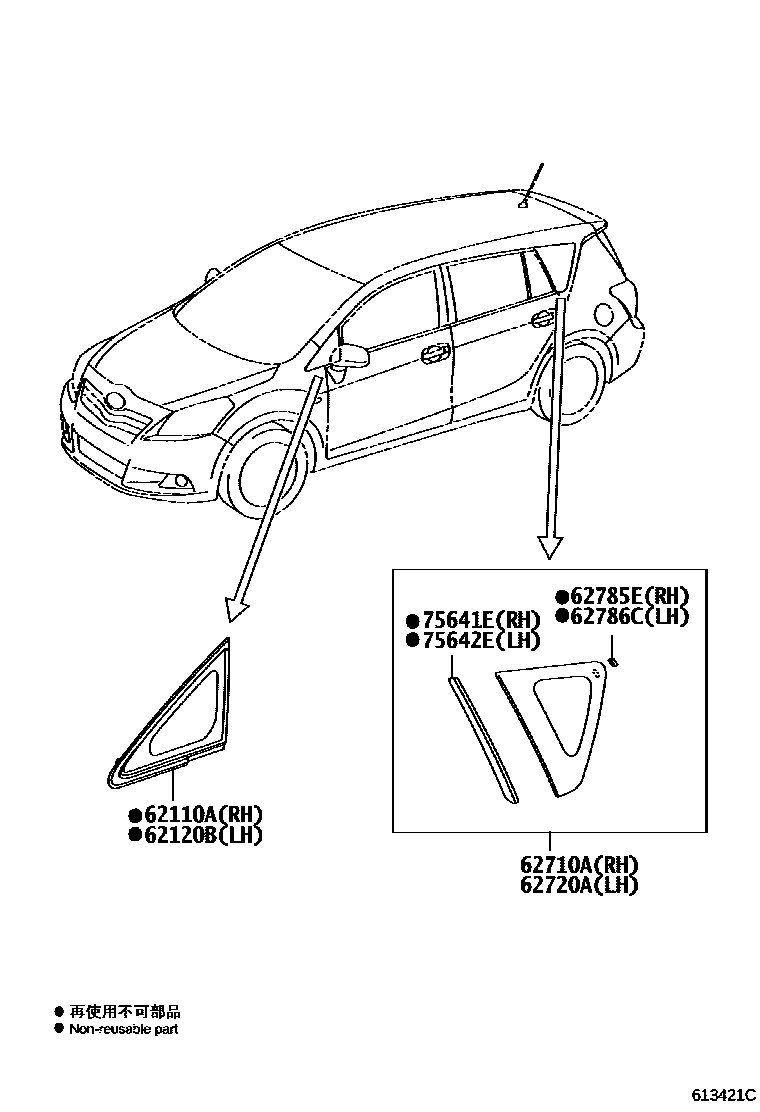

Toyota E'Z — QUARTER WINDOW

62110AWINDOW ASSY, FRONT SIDE FIX, RH

main62110-0F020i201106

62120BWINDOW ASSY, FRONT SIDE FIX, LH

main62120-0F020i201106

62710AWINDOW ASSY, QUARTER, RH

main62710-0F070i201106

*TEM,T=3.1,GREEN

62720AWINDOW ASSY, QUARTER, LH

main62720-0F070i201106

*TEM,T=3.1,GREEN

62785ESPACER, QUARTER WINDOW GLASS, RH

main62785-0F010i201106

62786CSPACER, QUARTER WINDOW GLASS, LH

main62785-0F010i201106

75641EMOULDING, QUARTER WINDOW, RH

main75641-0F020i201106

75642EMOULDING, QUARTER WINDOW, LH

main75642-0F020i201106

8 parts on this diagram · 1 diagram in section

QUARTER WINDOW for Toyota E'Z

This section contains 8 genuine Toyota parts for the QUARTER WINDOW system of the Toyota E'Z. Key components include: WINDOW ASSY, FRONT SIDE FIX, RH, WINDOW ASSY, FRONT SIDE FIX, LH, WINDOW ASSY, QUARTER, RH, WINDOW ASSY, QUARTER, LH, SPACER, QUARTER WINDOW GLASS, RH.
