Toyota E'Z — PARTIAL ENGINE ASSEMBLY

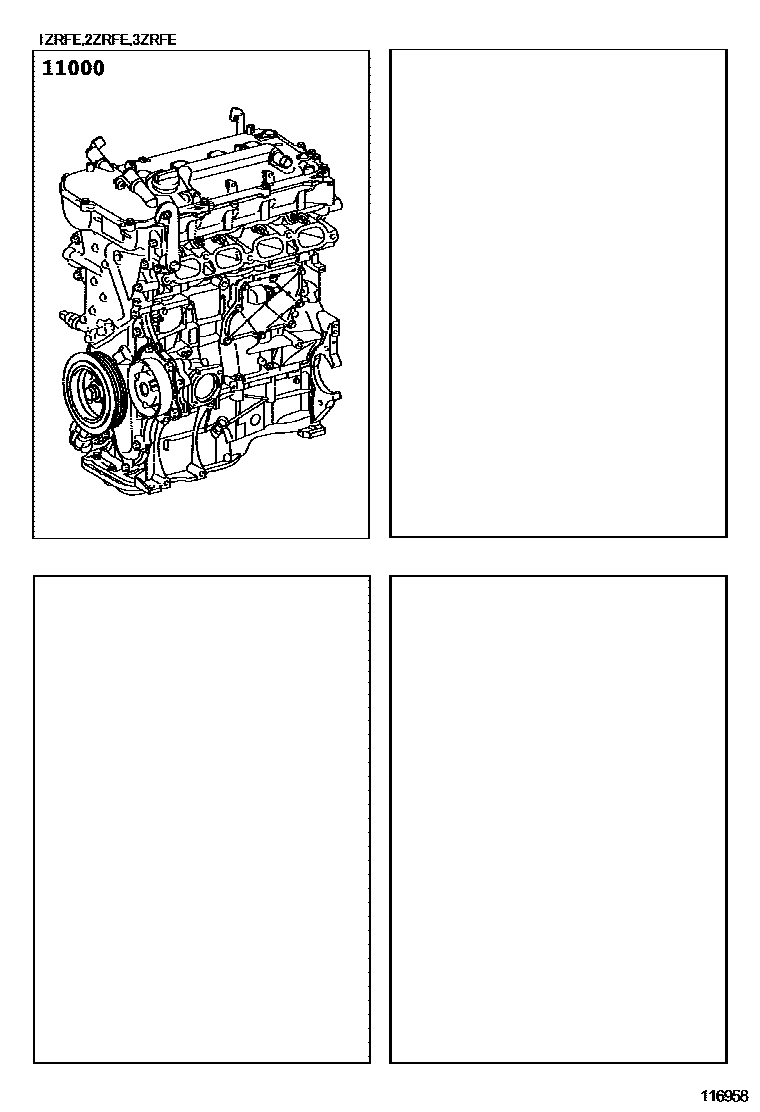

Parts diagram
11000ENGINE ASSY, PARTIAL
main19000-0T030i201106-201505
main19000-0T031i201505
main19000-0T040i201106-201505
main19000-0T041i201505
main19000-37291i201106-201309
sub19000-37293

1 parts on this diagram · 1 diagram in section
