Toyota E'Z — IGNITION COIL & SPARK PLUG / GLOW PLUG

19100PPLUG, SPARK

main90919-01253×4i201106-201309

SC20HR11

main90919-C1010×4i201507

SC20HR11

main90919-T1009×4i201106-201506

SC20HR11,(L)

main90919-T1014×4i201507

SC16HR11

19500COIL ASSY, IGNITION

main90919-02258×4i201106-201309

main90919-C2005×4i201106

(L)

90105C0043

main90105-C0043

9155180625

main91551-80625

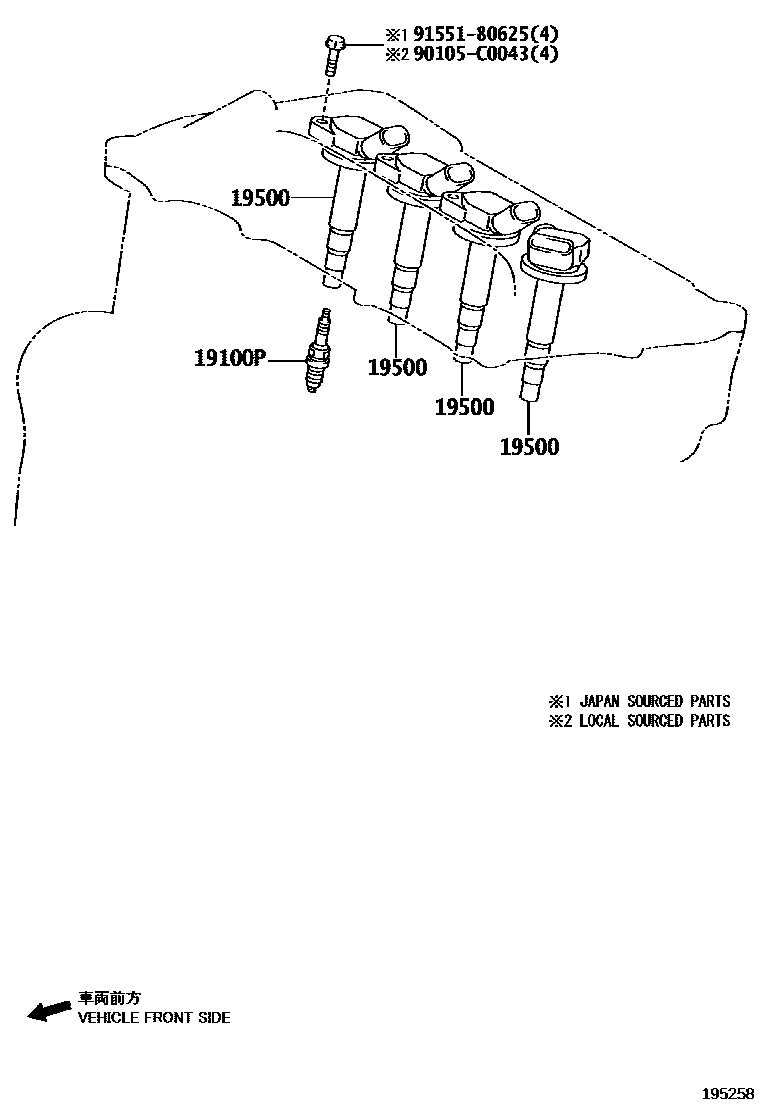

4 parts on this diagram · 1 diagram in section

IGNITION COIL & SPARK PLUG / GLOW PLUG for Toyota E'Z

This section contains 4 genuine Toyota parts for the IGNITION COIL & SPARK PLUG / GLOW PLUG system of the Toyota E'Z. Key components include: PLUG, SPARK, COIL ASSY, IGNITION.
