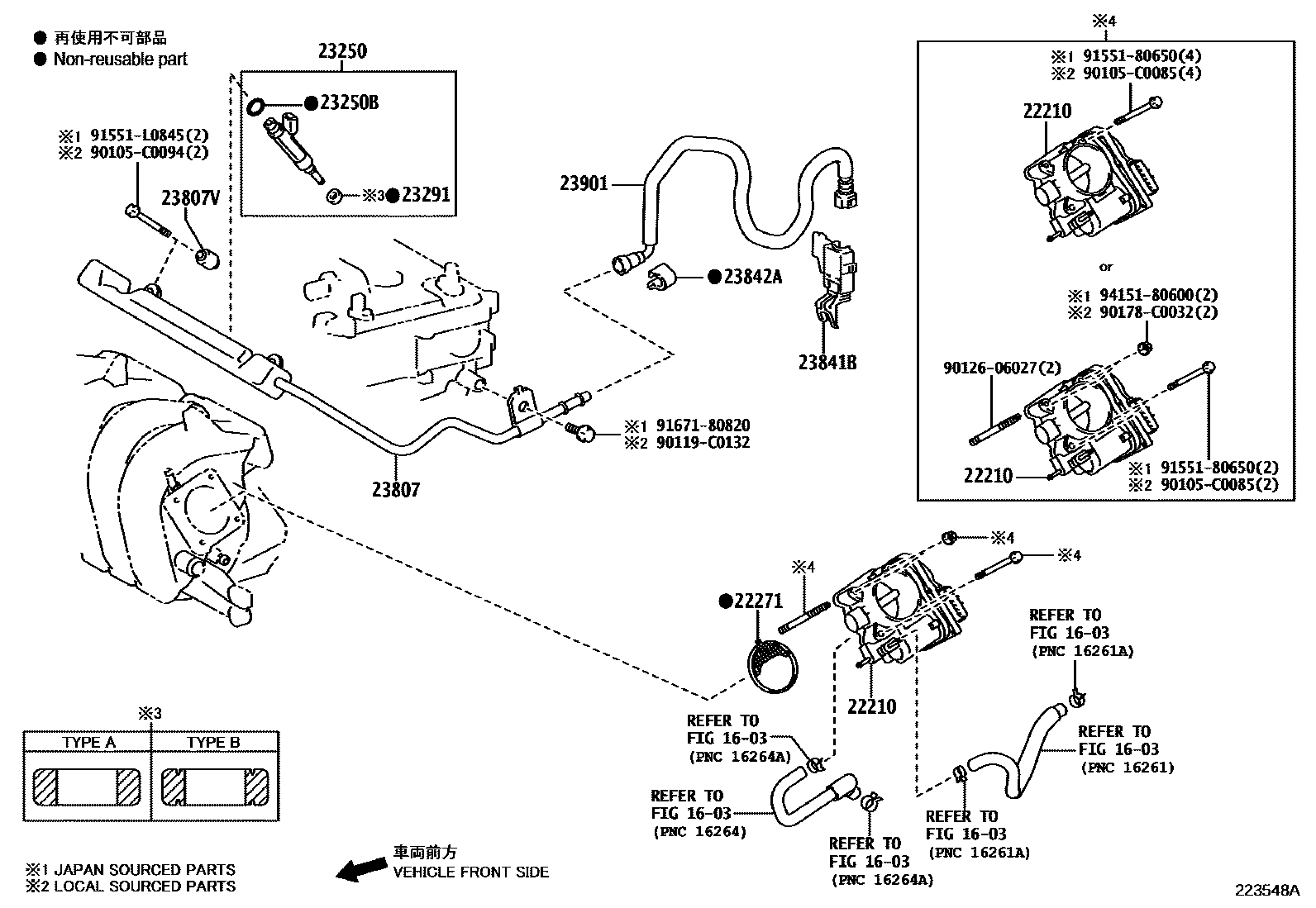

Toyota E'Z — FUEL INJECTION SYSTEM
1603RADIATOR & WATER OUTLET
22210BODY ASSY, THROTTLE
(L)
(J)
22271GASKET, THROTTLE BODY
(L)
(J)
23250INJECTOR ASSY, FUEL
(L)
(J)
23250BRING, O(FOR FUEL INJECTOR)
(L)
23291INSULATOR, INJECTOR VIBRATION
(L),TYPE A
TYPE A:REFER ILLUST.
TYPE B:REFER ILLUST.
23807PIPE SUB-ASSY, FUEL DELIVERY
23807VSPACER, NO.1(FOR DELIVERY PIPE)
23841BCLAMP, FUEL PIPE, NO.1(FOR EFI)
23842ACLAMP, FUEL PIPE, NO.2(FOR EFI)
23901TUBE SUB-ASSY, FUEL
90105C0085
main90105-C0085
90105C0094
main90105-C0094
90119C0132
main90119-C0132
9012606027
main90126-06027
90178C0032
main90178-C0032
9155180650
main91551-80650
91551L0845
main91551-L0845
9167180820
main91671-80820
9415180600
main94151-80600
20 parts on this diagram · 1 diagram in section
FUEL INJECTION SYSTEM for Toyota E'Z
This section contains 20 genuine Toyota parts for the FUEL INJECTION SYSTEM system of the Toyota E'Z. Key components include: RADIATOR & WATER OUTLET, BODY ASSY, THROTTLE, GASKET, THROTTLE BODY, INJECTOR ASSY, FUEL, RING, O(FOR FUEL INJECTOR).
