Toyota E'Z — FRONT SPRING & SHOCK ABSORBER

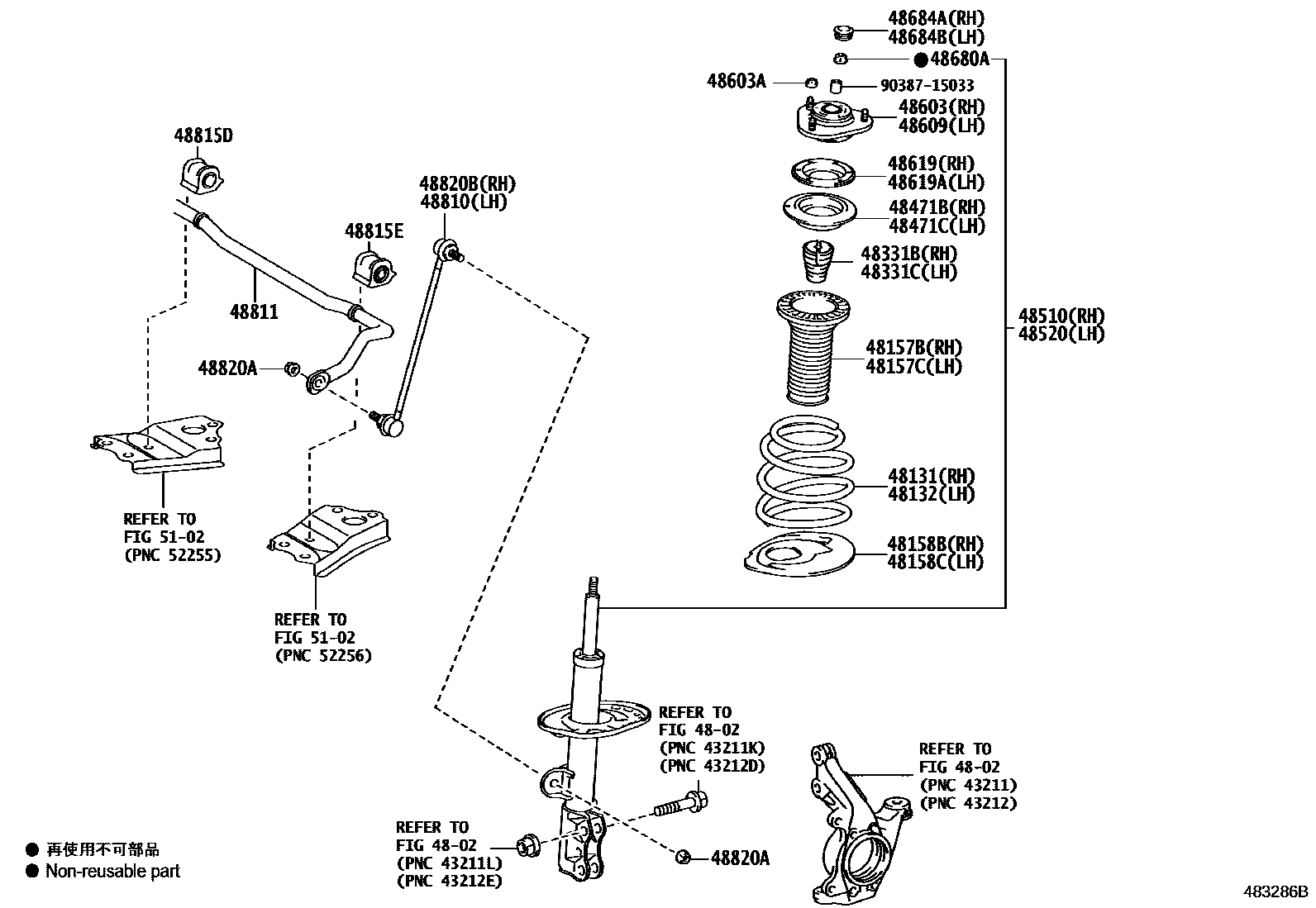

Parts diagram
4802FRONT AXLE ARM & STEERING KNUCKLE
→ Go to FIG 48-02
48131SPRING, FRONT COIL, RH
main48131-0F100i201106-201208
main48131-0F110i201106-201208
main48131-0F140i201208
main48131-0F150i201208-201309
48132SPRING, FRONT COIL, LH
main48131-0F100i201106-201208
main48131-0F110i201106-201208
main48131-0F140i201208
main48131-0F150i201208-201309
48157BINSULATOR, FRONT COIL SPRING, UPPER RH
main48157-0F010i201106-201202
main48157-0F011i201203
48157CINSULATOR, FRONT COIL SPRING, UPPER LH
main48157-0F010i201106-201202
main48157-0F011i201203
48158BINSULATOR, FRONT COIL SPRING, LOWER RH
main48158-0R020i201106
48158CINSULATOR, FRONT COIL SPRING, LOWER LH
main48158-0R020i201106
48331BBUMPER, FRONT SPRING, RH
main48331-0F020i201106
48331CBUMPER, FRONT SPRING, LH
main48331-0F020i201106
48471BSEAT, FRONT COIL SPRING, UPPER RH
main48471-0F010i201106
48471CSEAT, FRONT COIL SPRING, UPPER LH
main48471-0F010i201106
48510ABSORBER ASSY, SHOCK, FRONT RH
main48510-8Z025i201106-201203
MARK 48510-0F090
main48510-8Z026i201106-201203
MARK 48510-0F100
main48510-8Z027i201106-201203
MARK 48510-0F110
main48510-8Z058i201203-201208
MARK 48510-0F091
main48510-8Z059i201203-201208
MARK 48510-0F101
main48510-8Z060i201203-201208
MARK 48510-0F111
main48510-8Z067i201208
MARK 48510-0F080
main48510-8Z068i201208
MARK 48510-0F120
main48510-8Z069i201208-201309
MARK 48510-0F130
48520ABSORBER ASSY, SHOCK, FRONT LH
main48520-09V10i201106-201203
MARK 48520-0F090
main48520-09V11i201203-201208
MARK 48520-0F091
main48520-09V20i201106-201203
MARK 48520-0F100
main48520-09V21i201203-201208
MARK 48520-0F101
main48520-09V30i201106-201203
MARK 48520-0F110
main48520-09V31i201203-201208
MARK 48520-0F111
main48520-09Y40i201208
MARK 48520-0F080
main48520-09Y50i201208
MARK 48520-0F120
main48520-09Y60i201208-201309
MARK 48520-0F130
48603SUPPORT SUB-ASSY, FRONT SUSPENSION, RH
main48609-0F030i201106
48603ANUT(FOR FRONT SUSPENSION SUPPORT)
main90178-C0061×6i201106
48609SUPPORT SUB-ASSY, FRONT SUSPENSION, LH
main48609-0F030i201106
48619BEARING, STRUT MOUNTING, RH
main48619-28010i201106
48619ABEARING, STRUT MOUNTING, LH
main48619-28010i201106
48680ANUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER)
main90177-14005×2i201106
48684ACOVER, FRONT SUSPENSION SUPPORT DUST, RH
main48684-0F010i201106
48684BCOVER, FRONT SUSPENSION SUPPORT DUST, LH
main48684-0F010i201106
48810LINK ASSY, FRONT STABILIZER, LH
main48820-02080i201106
48811BAR, STABILIZER, FRONT
main48811-0F040i201106
48815DBUSH, FRONT STABILIZER BAR, RH
main48815-0F050i201106
48815EBUSH, FRONT STABILIZER BAR, LH
main48815-0F060i201106
48820ANUT(FOR FRONT STABILIZER LINK)
main90178-C0018×4i201106
48820BLINK ASSY, FRONT STABILIZER, RH
main48820-02080i201106
5102SUSPENSION CROSSMEMBER & UNDER COVER
→ Go to FIG 51-02
9038715033
main90387-15033

29 parts on this diagram · 1 diagram in section

FRONT SPRING & SHOCK ABSORBER for Toyota E'Z

This section contains 29 genuine Toyota parts for the FRONT SPRING & SHOCK ABSORBER system of the Toyota E'Z. Key components include: FRONT AXLE ARM & STEERING KNUCKLE, SPRING, FRONT COIL, RH, SPRING, FRONT COIL, LH, INSULATOR, FRONT COIL SPRING, UPPER RH, INSULATOR, FRONT COIL SPRING, UPPER LH.
