Toyota E'Z — FRONT FENDER APRON & DASH PANEL

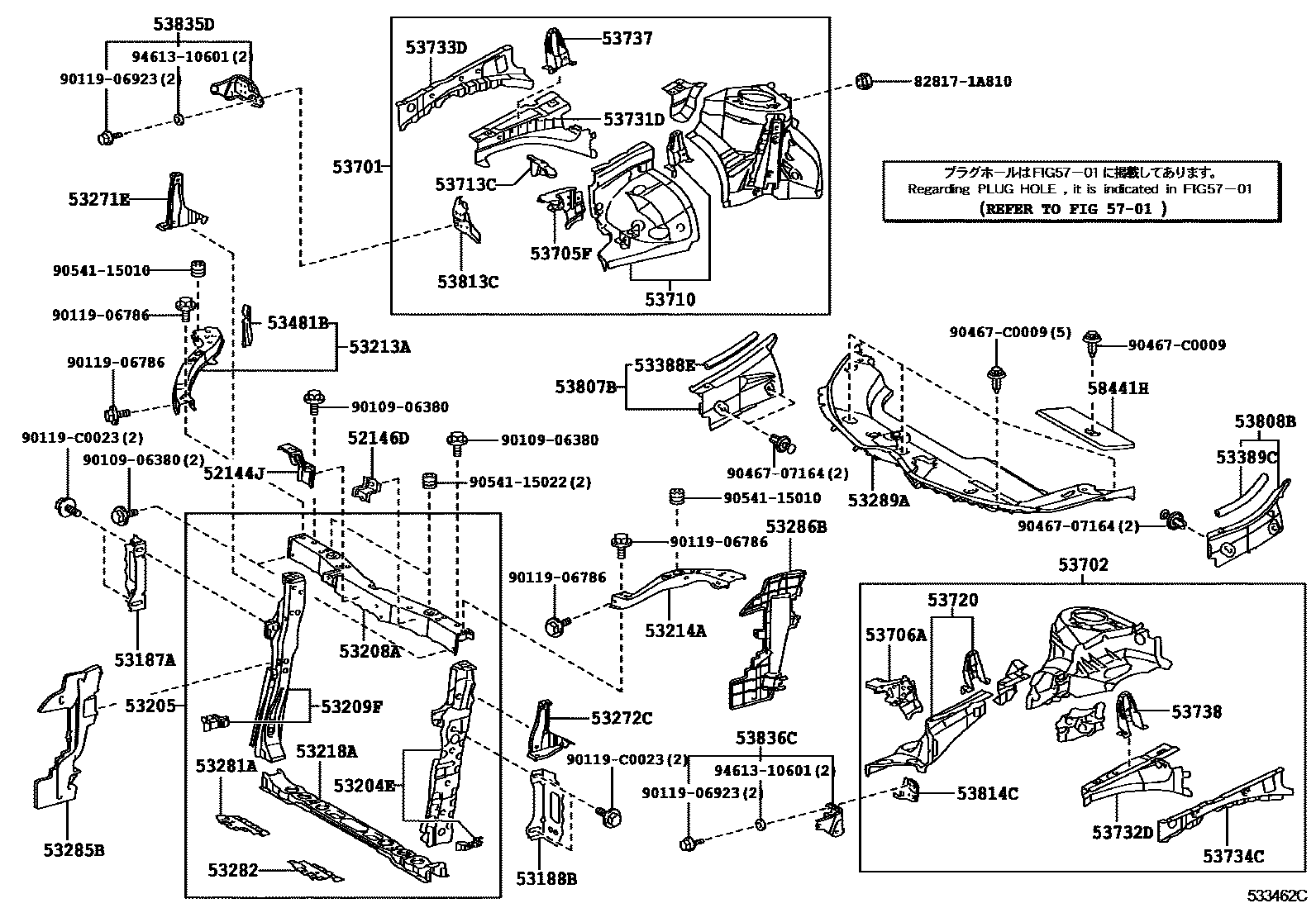

Parts diagram

52144JSTAY, FRONT BUMPER, CENTER

main52085-0F020201106

52146DBRACKET, FRONT BUMPER SIDE MOUNTING, LH

main52146-0F030201106

53187ASTAY, RADIATOR SUPPORT, RH

main53187-02030201106

53188BSTAY, RADIATOR SUPPORT, LH

main53188-02030201106

53204EBRACE SUB-ASSY, RADIATOR SUPPORT TO CROSSMEMBER, LH

main53204-02020201106

53205SUPPORT SUB-ASSY, RADIATOR, UPPER

main53205-02140201106

53208ASUPPORT SUB-ASSY, HOOD LOCK

main53208-02150201106

53209FBRACE SUB-ASSY, RADIATOR SUPPORT TO CROSSMEMBER, RH

main53209-02050201106

53213ASUPPORT, RADIATOR, UPPER RH

main53202-0F040201106

53214ASUPPORT, RADIATOR, UPPER LH

main53214-0F040201106

53218ASUPPORT, RADIATOR, LOWER

main53218-02030201106

53271EBRACKET, HEADLAMP MOUNTING, RH

main53271-0F020201106

53272CBRACKET, HEADLAMP MOUNTING, LH

main53272-0F060201106

53281AREINFORCEMENT, FRONT BODY MOUNTING, RH

main53281-02030201106

53282REINFORCEMENT, FRONT BODY MOUNTING, LH

main53282-02030201106

53285BSEAL, RADIATOR SIDE AIR, NO.1

main53285-0F060201106

53286BSEAL, RADIATOR SIDE AIR, NO.2

main53286-0F060201106

53289ACOVER, RADIATOR SUPPORT OPENING

main53289-0F040201106

53388ESEAL, HOOD TO FRONT FENDER, RH

main53388-0F020201106

53389CSEAL, HOOD TO FRONT FENDER, LH

main53388-0F020201106

53481BBRACKET, HOOD SUPPORT, RH

main53481-0F020201106

53701APRON SUB-ASSY, FRONT FENDER, RH

main53701-0F040201106-201612

53702APRON SUB-ASSY, FRONT FENDER, LH

main53702-0F030201106-201612

53705FBRACE SUB-ASSY, FENDER APRON, RH

main53705-0F040201106

53706ABRACE SUB-ASSY, FENDER APRON, LH

main53706-0F030201106

53710APRON ASSY, W/FRONT SIDE MEMBER, RH

main53710-0F902201106

53713CEXTENSION, FRONT FENDER APRON, FRONT RH

main53713-02050201106

53720APRON ASSY, W/FRONT SIDE MEMBER, LH

main53720-0F020201106

53731DMEMBER, FRONT APRON TO COWL SIDE, UPPER RH

main53731-02070201106

53732DMEMBER, FRONT APRON TO COWL SIDE, UPPER LH

main53732-02080201106

53733DMEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT RH

main53733-02030201106

53734CMEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT LH

main53734-02030201106

53737PLATE, FRONT APRON TO COWL SIDE MEMBER, RH

main53737-0F040201106

53738PLATE, FRONT APRON TO COWL SIDE MEMBER, LH

main53738-0F030201106

53807BREINFORCEMENT SUB-ASSY, FRONT FENDER, TOP RH

main53807-0F020201106

53808BREINFORCEMENT SUB-ASSY, FRONT FENDER, TOP LH

main53808-0F020201106

53813CEXTENSION, FRONT FENDER, RH

main53813-0F020201106

53814CEXTENSION, FRONT FENDER, LH

main53814-0F020201106

53835DBRACKET, FRONT SIDE PANEL, RH

main53803-0F020201106

53836CBRACKET, FRONT SIDE PANEL, LH

main53804-0F020201106

5701HOLE PLUG

→ Go to FIG 57-01

58441HCOVER, BATTERY SERVICE HOLE

main58441-0F010201106

828171A810PROTECTOR, WIRING HARNESS, NO.1

main82817-1A810

9010906380

main90109-06380

9011906786

main90119-06786

9011906923

main90119-06923

90119C0023

main90119-C0023

9046707164

main90467-07164

90467C0009

main90467-C0009

9054115010

main90541-15010

9054115022

main90541-15022

9461310601

main94613-10601

52 parts on this diagram · 4 diagrams in section

FRONT FENDER APRON & DASH PANEL for Toyota E'Z

This section contains 68 genuine Toyota parts for the FRONT FENDER APRON & DASH PANEL system of the Toyota E'Z. Key components include: STAY, FRONT BUMPER, CENTER, BRACKET, FRONT BUMPER SIDE MOUNTING, LH, STAY, RADIATOR SUPPORT, RH, STAY, RADIATOR SUPPORT, LH, BRACE SUB-ASSY, RADIATOR SUPPORT TO CROSSMEMBER, LH.
