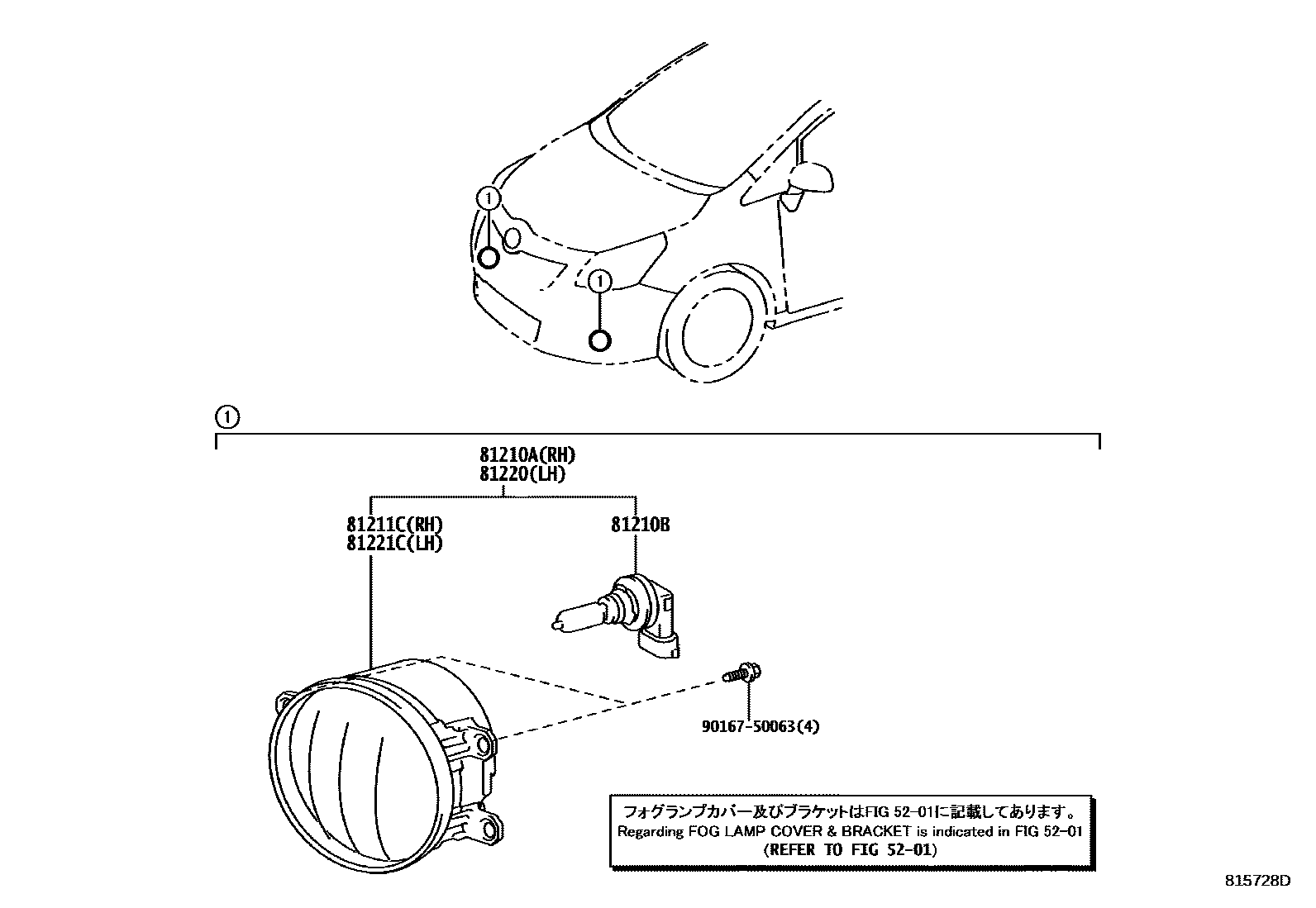

Toyota E'Z — FOG LAMP

5201FRONT BUMPER & BUMPER STAY

→ Go to FIG 52-01

81210ALAMP ASSY, FOG, RH

main81210-06052i201106-201309

main81210-0D100i201309-201612

JIALI

main81210-12230i201309-201612

KOITO

81210BBULB, FOG LAMP

main90981-13075×2i201106-201309

12V 55W,HALOGEN,PHILIPS

main90981-13081×2i201106-201309

12V 55W,HALOGEN,OSRAM

main90981-13090×2i201309-201612

12V 19W,KOITO

main90981-CD003×2i201309-201612

12V 19W,OSRAM

81211CLAMP UNIT, FOG LAMP, RH

main81211-12230i201309

81220LAMP ASSY, FOG, LH

main81220-06052i201106-201309

main81220-0D100i201309-201612

JIALI

main81220-12230i201309-201612

KOITO

81221CLAMP UNIT, FOG LAMP, LH

main81221-12230i201309

9016750063

main90167-50063

7 parts on this diagram · 1 diagram in section

FOG LAMP for Toyota E'Z

This section contains 7 genuine Toyota parts for the FOG LAMP system of the Toyota E'Z. Key components include: FRONT BUMPER & BUMPER STAY, LAMP ASSY, FOG, RH, BULB, FOG LAMP, LAMP UNIT, FOG LAMP, RH, LAMP ASSY, FOG, LH.
