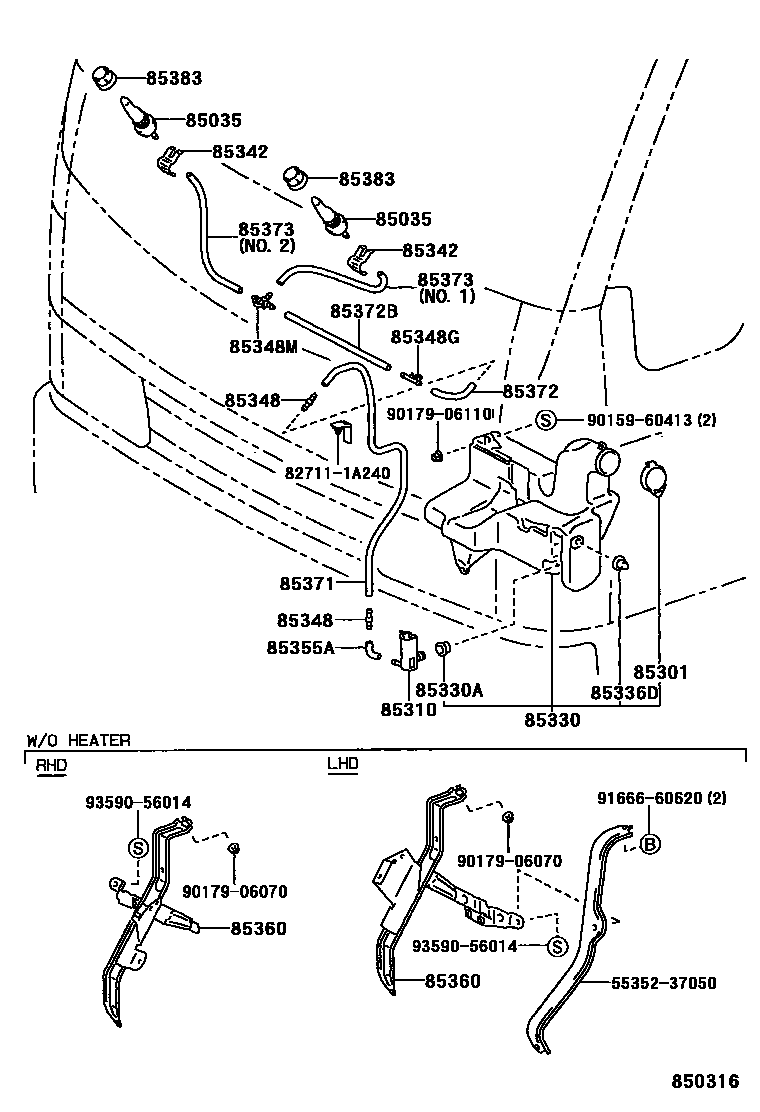

Toyota DYNA200 — WINDSHIELD WASHER

0001 1 0002 1

85035NOZZLE SUB-ASSY, WASHER

main85381-37020×2iBU10#,11#,14#,RZU100199505

85301INLET SUB-ASSY, WASHER

main85301-17010iBU10#,11#,14#,21#,22#,RZU100,YU210199505-200008

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85310-22080iRZU100;BU212..CBU;BU142..20T,25T;BU212..LHD..40T..TD;BU102,212,222..ARL,EUR,SA,TAIW;BU100,101,11#,140,141,211,221,YU210..(DM1,T1,T2,T3,TW1,TW2)..(CBU,IV3)199505-200008

main85310-90B00iBU212..RHD..GEN..IV3;BU212..30T..GEN..IV3;BU102,111,112,222..GEN..IV3199505-199708

24V

85330JAR ASSY, WINDSHIELD WASHER

main85315-37030iBU10#,110,111,14#,RZU100..RHD199505

main85315-37040iBU10#,111,112,14#,21#,22#,RZU100..LHD199505

main85315-37070iBU211,212,221,222,YU210..RHD199505-200008

85330ABUSH, WINDSHIELD WASHER JAR

main90099-32089iBU10#,11#,14#,21#,22#,RZU100,YU210199505-200008

85336DPACKING, WINDSHIELD WASHER JAR

main85336-20340iBU10#,11#,14#,21#,22#,RZU100,YU210199505-200008

85342HOLDER, WASHER NOZZLE

main85342-95J01×3iBU21#,22#,YU210199505-200008

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85349-89122×2iBU10#,11#,14#,21#,22#,RZU100,YU210199505-200008

85348GJOINT, WINDSHIELD WASHER HOSE, NO.2

main85375-20800×2iBU21#,22#,YU210199505-200008

85348MJOINT, WINDSHIELD WASHER HOSE, NO.3

main85378-33030×2iBU21#,22#,YU210199505-200008

85355AJOINT, WINDSHIELD WASHER ELBOW

main85355-14481iBU10#,11#,14#,21#,22#,RZU100,YU210199505-200008

85360BRACKET ASSY, WINDSHIELD WASHER

main85360-37010iBU101,102,111,14#..RHD..GEN199505

main85360-37020iBU100,101,111,14#..LHD..(DM1,T3,TW2)..GEN199505

main85360-37030iBU212..RHD..GEN..IV3;BU211,221..RHD..GEN..(CBU,IV3)199808

main85360-37040iBU211,221..LHD;BU212..LHD..40T..TD199505

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90446-07001iBU10#,11#,14#,21#,22#,RZU100,YU210199505-200008

L=1800(*H,L=760)

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90099-59135iBU10#,11#,14#,RZU100199505-199909

L=130

main90099-59137iBU21#,22#,YU210200008

L=50

main90446-06013iBU10#,111,14#,RZU100199909

L=130

85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2

main90446-07001iBU21#,22#,YU210199505-200008

L=1800(*H,L=410)

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90099-33080iBU100,101,110,111,14#,RZU100..RHD199505-199909

L=1450(*H,L=340),NO.1

main90099-33299iBU10#,111,112,14#..LHD199505-199703

L=1000(*H,L=340),NO.1

main90099-59139iBU21#,22#,YU210200008

L=170

85383HOLDER, FRONT WASHER NOZZLE

main85383-37010×2iBU10#,11#,14#,RZU100199505

5535237050ORNAMENT, VENTILATOR LOUVER, CENTER

main55352-37050

827111A240WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1A240

9015960413

main90159-60413

9017906070

main90179-06070

9017906110

main90179-06110

9166660620

main91666-60620

9359056014

main93590-56014

24 parts on this diagram · 2 diagrams in section
