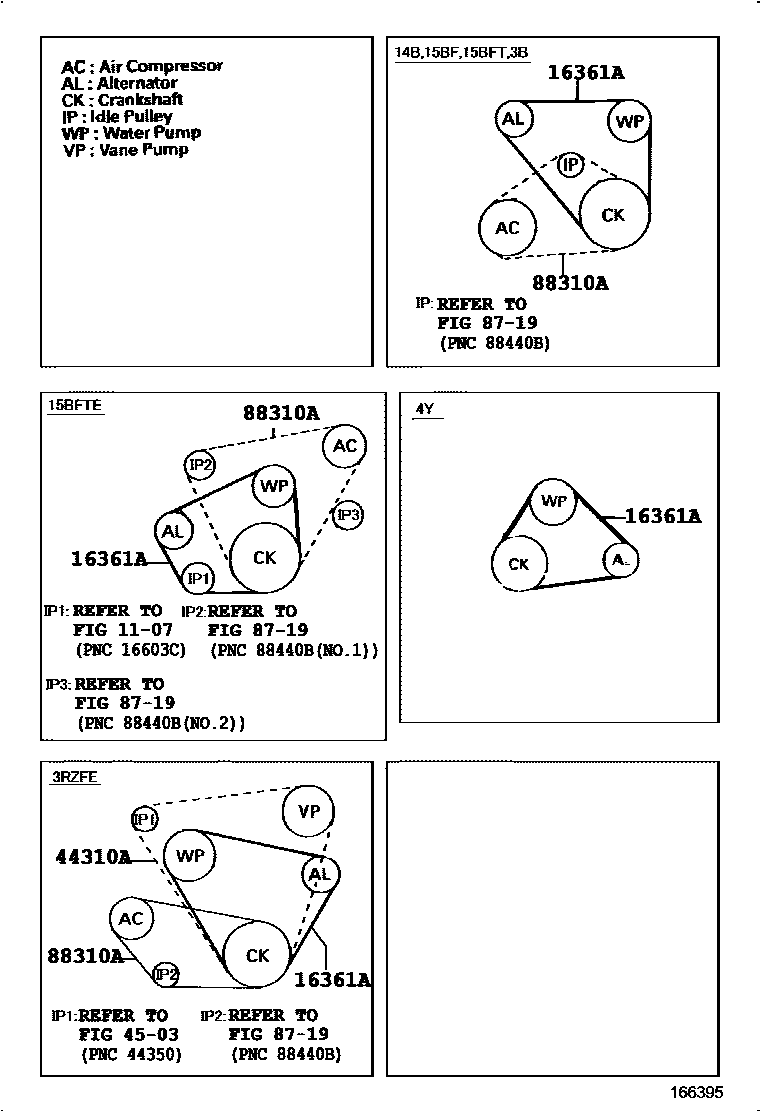

Toyota DYNA200 — V-BELT

1107MOUNTING

→ Go to FIG 11-07

16361ABELT, V(FOR FAN & ALTERNATOR)

44310ABELT, V(FOR VANE PUMP)

4503POWER STEERING TUBE

→ Go to FIG 45-03

8719HEATING & AIR CONDITIONING - COMPRESSOR

→ Go to FIG 87-19

88310ABELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1

6 parts on this diagram · 1 diagram in section

V-BELT for Toyota DYNA200

This section contains 6 genuine Toyota parts for the V-BELT system of the Toyota DYNA200. Key components include: MOUNTING, BELT, V(FOR FAN & ALTERNATOR), BELT, V(FOR VANE PUMP), POWER STEERING TUBE, HEATING & AIR CONDITIONING - COMPRESSOR.
