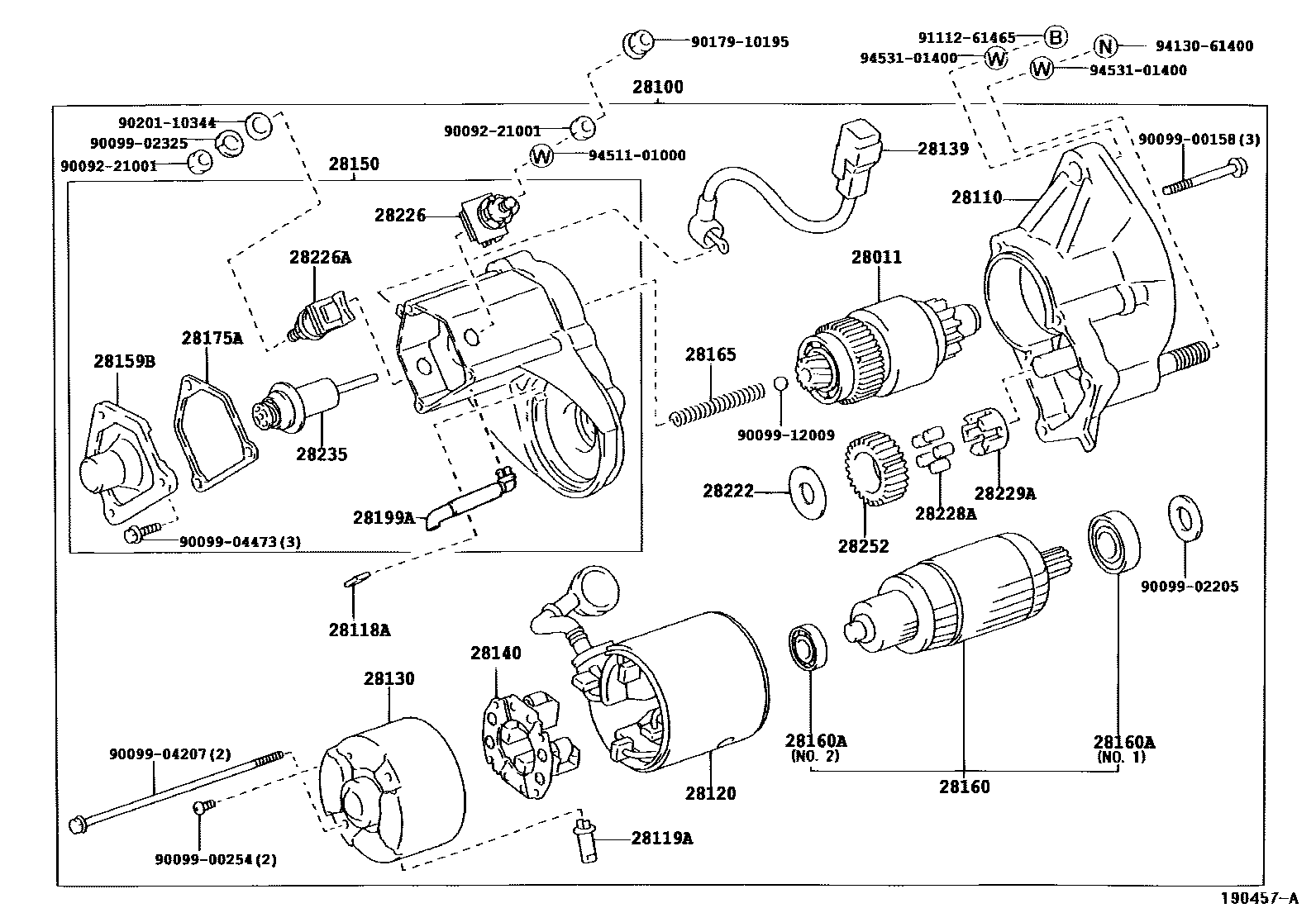

Toyota DYNA200 — STARTER
28011CLUTCH SUB-ASSY, STARTER
main28011-54010i15BFT..BU212..RHD..IV3;14B..BU211..LHD..30T..IV3;15BFT,15BFTE..BU102,142,213,223..20T,30T,40T199505-200211
28100STARTER ASSY
main28100-56310i15BF..BU212..RHD;15BFT..BU212..LHD..40T;14B,15BF..BU142,212,222..ARL,TAIW;14B,15BFT,3B..BU10#,11#,14#,211,221..(DM1,T1,T2,T3,TW1,TW2)..(CBU,IV3)199505-199808
12V 2.5KW
12V 2.5KW
24V 4.5KW,CHINA SPEC OR ALGERIA SPEC
main28100-56320i15BFT..BU212..RHD;15BFT..BU212..30T;14B,15B#..BU102,111,112,222..GEN..IV3199505-199808
24V 4.5KW
main28100-56320i15BFT..BU212..RHD;15BFT..BU212..30T;14B,15B#..BU102,111,112,222..GEN..IV3199505-199808
24V 4.5KW,CHINA SPEC
24V 4.5KW,HONG KONG SPEC
main28100-56321i15BFT..BU212..RHD..IV3;14B..BU211..LHD..T3..30T;14B..BU211..LHD..40T..CBU;14B..BU211..40T..(IV2,IV3);14B..BU101..LHD..WT..IV3..TS;14B..BU101,141,221..LHD..(175T,25T199808-200211
24V 4.5KW
12V 1.0KW
12V 1.2KW
12V 1.2KW
28110HOUSING ASSY, STARTER DRIVE
28118APLATE(FOR STARTER YOKE)
main28118-77090i15BFT..BU212..RHD..IV3;14B..BU211..LHD..30T..IV3;15BFT,15BFTE..BU102,142,213,223..20T,30T,40T199505-200211
28119ACOVER, STARTER END FRAME
28120YOKE ASSY, STARTER
CHINA SPEC OR ALGERIA SPEC
main28120-56221i14B..BU211..IV2;15BF..BU212..GEN..IV3;15BFT..BU212..RHD..IV3;15BFT..BU212..30T..IV3;14B,15B#..BU102,111,112,142,213,222,223..(15T,20T,30T,40T)..GEN..IV3199505-200211
YAMATO SPEC
ALGERIA OR CHINA SPEC
RUSSIA SPEC & COLD SPEC
HONG KONG SPEC
CHINA SPEC
ALGERIA SPEC
main28120-56231i15BFT..BU212..CBU;15BFT..BU222..EUR,SA;15BF..BU212,222..RHD;15BFT..BU212..LHD..40T;15BF,15BFT..BU142..20T,25T;14B,3B..BU10#,11#,140,141,211,212,221,222..(DM1,T1,T2,199505-200211
28130FRAME ASSY, STARTER COMMUTATOR END
main28130-56260i15BFT..BU212..RHD..IV3;14B..BU211..LHD..30T..IV3;15BFT,15BFTE..BU102,142,213,223..20T,30T,40T199505-200211
28139WIRE, LEAD, NO.1(FOR STARTER)
28140HOLDER ASSY, STARTER BRUSH
28150SWITCH ASSY, MAGNET STARTER
main28150-56310i15BFT..BU212..CBU;15BFT..BU222..EUR,SA;15BFT..BU142,212..LHD;14B,15BF..BU101,111,14#,211,212,221,222..(DM1,T1,T2,T3,TW1,TW2)..(CBU,IV3)199505-200211
main28150-56320i14B..BU211..IV2;15BF..BU212..GEN..IV3;15BFT..BU212..RHD..IV3;15BFT..BU212..30T..IV3;14B,15B#..BU102,111,112,142,213,222,223..(15T,20T,30T,40T)..GEN..IV3199505-200211
CHINA SPEC
CHINA SPEC OR ALGERIA SPEC
main28150-56320i14B..BU211..40T..GEN..IV3;14B,3B..BU100,211..LHD..(175T,40T)..CBU;14B,3B..BU100,140,141,211..LHD..T3..WT..(20T,25T,30T)199708-200211
ALGERIA OR CHINA SPEC
RUSSIA SPEC & COLD SPEC
ALGERIA SPEC
HONG KONG SPEC
28159BCOVER, MAGNET SWITCH
28160ARMATURE ASSY, STARTER
main28160-47040i15BFT..BU212..CBU;15BFT..BU222..EUR,SA;15BF..BU212,222..RHD;15BFT..BU212..LHD..40T;15BF,15BFT..BU142..20T,25T;14B,3B..BU10#,11#,140,141,211,212,221,222..(DM1,T1,T2,199505-200303
CHINA SPEC
HONG KONG SPEC
CHINA SPEC OR ALGERIA SPEC
main28160-77090i14B..BU211..IV2;15BF..BU212..GEN..IV3;15BFT..BU212..RHD..IV3;15BFT..BU212..30T..IV3;14B,15B#..BU102,111,112,142,213,222,223..(15T,20T,30T,40T)..GEN..IV3199505-200310
main28160-77090i14B..BU211..40T..GEN..IV3;14B,3B..BU100,211..LHD..(175T,40T)..CBU;14B,3B..BU100,140,141,211..LHD..T3..WT..(20T,25T,30T)199708-200211
ALGERIA OR CHINA SPEC
RUSSIA SPEC & COLD SPEC
ALGERIA SPEC
28160ABEARING, STARTER ARMATURE
NO.2
NO.2
NO.1
main90099-10119i15BFT..BU212..RHD..IV3;14B..BU211..LHD..30T..IV3;15BFT,15BFTE..BU102,142,213,223..20T,30T,40T199505-200211
NO.1
NO.1
NO.2
28165SPRING, STARTER MAGNET SWITCH RETURN
main28165-77090i15BFT..BU212..RHD..IV3;14B..BU211..LHD..30T..IV3;15BFT,15BFTE..BU102,142,213,223..20T,30T,40T199505-200211
28175AGASKET, MAGNET SWITCH COVER
28199APROTECTOR, DUST STARTER
28222WASHER, STARTER IDLE GEAR CLUTCH
main28222-77090i15BFT..BU212..RHD..IV3;14B..BU211..LHD..30T..IV3;15BFT,15BFTE..BU102,142,213,223..20T,30T,40T199505-200211
28226STARTER KIT, BATTERY TERMINAL
main28226-54320i15BFT..BU212..RHD..IV3;14B..BU211..LHD..30T..IV3;15BFT,15BFTE..BU102,142,213,223..20T,30T,40T199505-200211
28226ASTARTER KIT, MOTOR TERMINAL
main28226-54220i15BFT..BU212..RHD..IV3;14B..BU211..LHD..30T..IV3;15BFT,15BFTE..BU102,142,213,223..20T,30T,40T199505-200211
28228AROLLER, STARTER CLUTCH
28229ARETAINER, STARTER IDLE GEAR
28235PLUNGER, MAGNET SWITCH
28252GEAR, STARTER IDLE
main28254-77090i15BFT..BU212..RHD..IV3;14B..BU211..LHD..30T..IV3;15BFT,15BFTE..BU102,142,213,223..20T,30T,40T199505-200211
9009221001
main90092-21001
9009900158
main90099-00158
9009900254
main90099-00254
9009902205
main90099-02205
9009902325
main90099-02325
9009904207
main90099-04207
9009904473
main90099-04473
9009912009
main90099-12009
9017910195
main90179-10195
9020110344
main90201-10344
9111261465
main91112-61465
9413061400
main94130-61400
9451101000
main94511-01000
9453101400
main94531-01400
37 parts on this diagram · 2 diagrams in section
STARTER for Toyota DYNA200
This section contains 49 genuine Toyota parts for the STARTER system of the Toyota DYNA200. Key components include: CLUTCH SUB-ASSY, STARTER, STARTER ASSY, HOUSING ASSY, STARTER DRIVE, PLATE(FOR STARTER YOKE), COVER, STARTER END FRAME.
