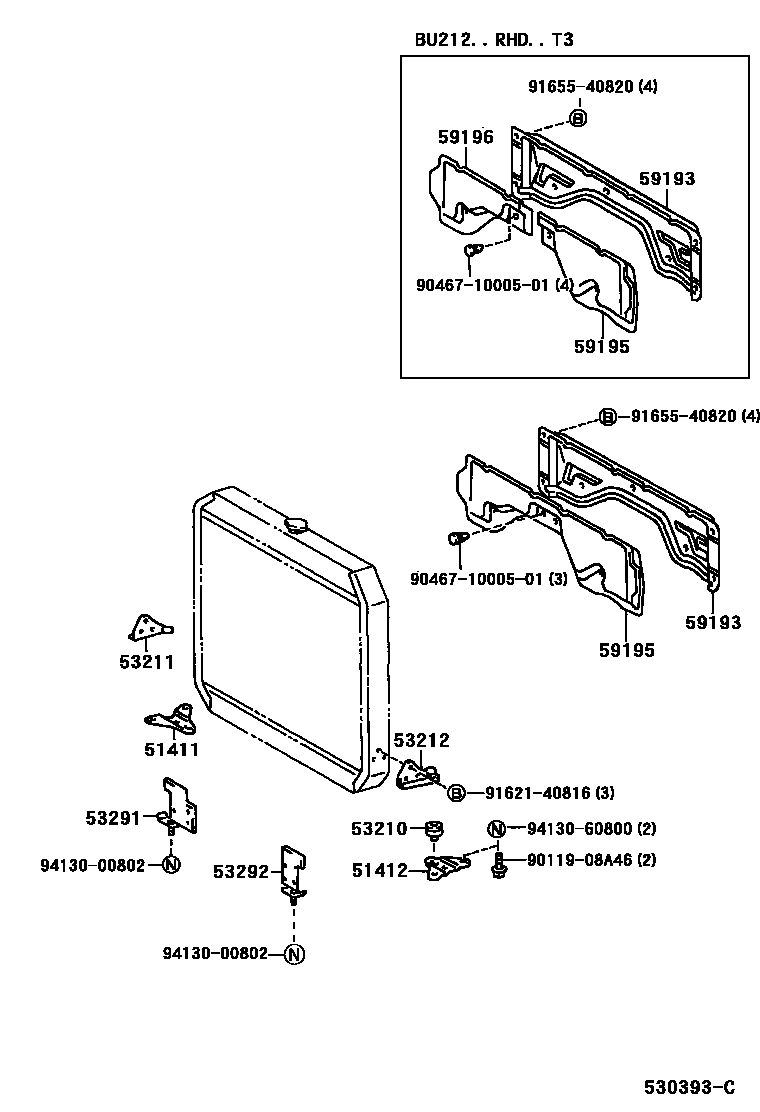

Toyota DYNA200 — RADIATOR SUPPORT & WIND GUIDE

51411BRACKET, RADIATOR SUPPORT, RH

main51411-36080iBU11#..DM1,DM7199505

main51411-36090iBU10#,14#,RZU100199505

main51411-36100iYU210200008

main51411-37020iBU211,221..GEN;BU211..30T..SA;BU212,213,222,223199505

51412BRACKET, RADIATOR SUPPORT, LH

main51412-36080iBU11#..DM1,DM7199505

main51412-36090iBU10#,14#,RZU100199505

main51412-36100iYU210200008

main51412-37020iBU211,221..GEN;BU211..30T..SA;BU212,213,222,223199505

53210SUPPORT ASSY, RADIATOR

main53210-36010×2iBU10#,11#,14#,21#,22#,RZU100,YU210199505-200008

53211SUPPORT, RADIATOR, RH

main53211-36020iYU210200008

53212SUPPORT, RADIATOR, LH

main53212-36020iBU211..40T..SA;BU221,YU210..SA199505-200008

53291SEAL, RADIATOR SUPPORT TO FRAME, RH

main53291-36040iBU212,213,222,223199708

main53291-36050iBU10#,14#199505

53292SEAL, RADIATOR SUPPORT TO FRAME, LH

main53292-36060iBU211,221..LHD199608-199610

SAUDI ARABIA & GULF SPEC

main53292-36061iBU10#,14#;BU212,222..RHD;BU212..LHD..40T199610-199708

main53292-36070iBU212..ARL,GEN199505-199608

SAUDI ARABIA & GULF SPEC

59193GUARD, NOISE SHUTTER

main59193-37040iBU100,140..(ARL,EUR)..IV3;BU102,110,112,142..ARL,GEN199505-199704

main59193-37041iBU100,101..ARL..IV3;BU102,110,112,142..DSL199704

main59193-37050iBU212..RHD..T3..DSL199505-199704

main59193-37051iBU212,222..T3..DSL..(ARL,GEN)199704

59195INSULATOR, NOISE SHUTTER

main59195-37030iBU100,140..(ARL,EUR)..IV3;BU102,110,112,142..ARL,GEN199505-199704

main59195-37031iBU100,101..ARL..IV3;BU102,110,112,142..DSL199704

main59195-37040iBU212,222..T3..DSL..(ARL,GEN)199505

59196SEAL, NOISE SHUTTER, UPPER NO.1

main59196-37030iBU212..RHD..T3..DSL199505-199704

main59196-37031iBU212,222..T3..DSL..(ARL,GEN)199704

9011908A46

main90119-08A46

904671000501

main90467-1000501

9162140816

main91621-40816

9165540820

main91655-40820

9413000802

main94130-00802

9413060800

main94130-60800

16 parts on this diagram · 1 diagram in section
