Toyota DYNA200 — MIRROR
87093STAY SUB-ASSY, OUTER REAR VIEW MIRROR, UPPER RH
main87093-37130iBU100..175T..GEN;BU100,111,140,141,211..LHD..(DM1,T3)..WT..GEN; BU211..TW1;BU221..LHD;BU100..ST..20T199505-199708
CHINA SPEC OR SAUDI ARABIA & GULF SPEC; SAUDI ARABIA & GULF SPEC
main87093-37180iBU140..LHD..CBU;BU212..LHD..40T;BU100,101,141,211,221..LHD..WT; BU212..LHD..30T;BU102,222..LHD..WT199505-199712
W(UNDER MIRROR)
87094STAY SUB-ASSY, OUTER REAR VIEW MIRROR, UPPER LH
W(UNDER MIRROR)
W(UNDER MIRROR)
SAUDI ARABIA & GULF SPEC
87810MIRROR ASSY, INNER REAR VIEW
BLACK,TRIM1#
main87810-25020-C0iRZU100;BU102..TAIW;BU142..(20T,25T)..(ARL,GEN);BU100,101,11#,140,141..(DM1,T1,T2,T3,TW2)..(ARL,GEN,TAIW)199505-200212
BLACK,TRIM1#
CHINA SPEC,BLACK,TRIM1#
main87810-37030-C0iBU212..CBU;BU212..ARL,TAIW;BU212..LHD..40T..TD;BU211,221,222..DSL..(ARL,GEN,TAIW)..(CBU,IV3)199505
BLACK,TRIM1#
KENYA SPEC,BLACK,TRIM1#
87810BBULB, INNER REAR VIEW MIRROR LAMP
main90981-11027iRZU100;BU212..CBU;BU142..20T,25T;BU212..LHD..40T..TD;BU102,212,222..ARL,EUR,SA,TAIW;BU100,101,11#,140,141,211,221,YU210..(DM1,T1,T2,T3,TW1,TW2)..(CBU,IV3)199505-200008
12V 10W
main90981-16019iBU211..40T..GEN..IV3;BU211..LHD..40T..CBU;BU100,111,222..WT..GEN;BU101,221..RHD..WT..GEN..IV3;BU100,140,141,21#..LHD..(T3,TW2)..(175T,25T,30T)..GEN199505-199703
87827ABSORBER, INNER REAR VIEW MIRROR
L=38.5
L=43.5
L=46.5
87834COVER, INNER REAR VIEW MIRROR STAY HOLDER
87901BMIRROR SUB-ASSY, OUTER REAR VIEW, RH
SAUDI ARABIA & GULF SPEC
CHINA SPEC OR SAUDI ARABIA & GULF SPEC
87906BMIRROR SUB-ASSY, OUTER REAR VIEW, LH
SAUDI ARABIA & GULF SPEC
RUSSIA SPEC OR SAUDI ARABIA & GULF SPEC
87907MIRROR SUB-ASSY, OUTER UNDER VIEW
main87907-37050iRZU100;BU140..RHD;BU140..LHD..CBU;BU10#,111,112,141,142,21#,22#..(DM1,DM7,T1,T2,T3,T4,TW1,TW2)..(GEN,TAIW)199505-200110
9014860054
main90148-60054
9015260015
main90152-60015

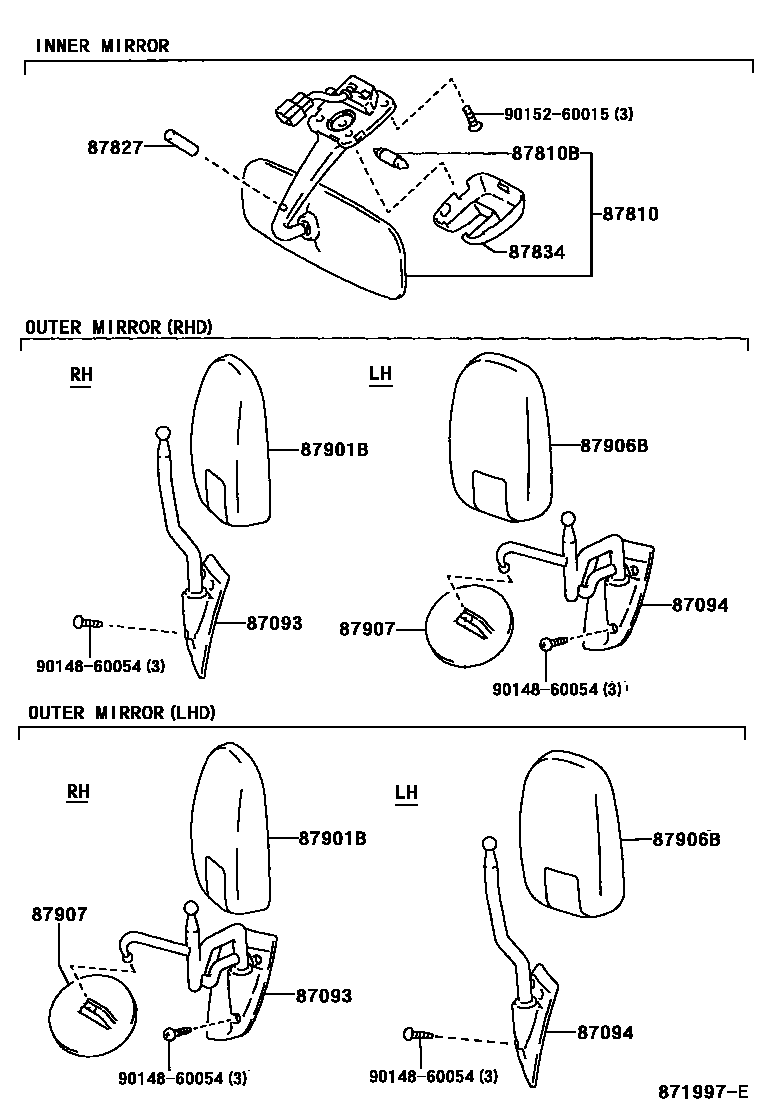

11 parts on this diagram · 1 diagram in section
MIRROR for Toyota DYNA200
This section contains 11 genuine Toyota parts for the MIRROR system of the Toyota DYNA200. Key components include: STAY SUB-ASSY, OUTER REAR VIEW MIRROR, UPPER RH, STAY SUB-ASSY, OUTER REAR VIEW MIRROR, UPPER LH, MIRROR ASSY, INNER REAR VIEW, BULB, INNER REAR VIEW MIRROR LAMP, ABSORBER, INNER REAR VIEW MIRROR.
