Toyota DYNA200 — METER
83100BBULB, COMBINATION METER, NO.1
main83109-24030×3iBU212..LHD;BU142,222..ARL,EUR;BU211,YU210..CBU,IV3;BU101,111,141,212,221..(DM1,T1,T2,T3,TW1,TW2)..DSL..(ARL,GEN)200008
12V3.4W W(GREEN CAP),TYPE B:REFER TO ILLUSTRATION
main83119-60060×3iBU211..40T..GEN..IV3;BU211..LHD..40T..CBU;BU100,111,222..WT..GEN;BU101,221..RHD..WT..GEN..IV3;BU100,140,141,21#..LHD..(T3,TW2)..(175T,25T,30T)..GEN199505-199703
24V 3.0W,GREEN CAP,TYPE B:REFER TO ILLUSTRATION
24V 1.4W,W(SOCKET),TYPE A:REFER TO ILLUSTRATION
12V 1.4W,W(SOCKET),TYPE A:REFER TO ILLUSTRATION
main90010-06006×3iRZU100;BU101,141..SA;BU222..TD..SA;BU212..TD..CBU;BU142,212..LHD..(25T,40T)..TD..GEN199808-200212
12V3.4W,W(GREEN CAP),TYPE B:REFER TO ILLUSTRATION
main90010-06022×3iBU212..DSL..GEN..IV3;BU212,222..RHD..GEN..IV3;BU102,112,142,213,223..(15T,20T,30T,40T)..GEN199703
24V 3W,W(GREEN CAP),TYPE B:REFER TO ILLUSTRATION
12V 1.2W W/O SOCKET,TYPE A:REFER TO ILLUSTRATION, SAUDI ARABIA SPEC OR GULF SPEC
24V 1.4W,ALGERIA SPEC;TYPE A:REFER TO ILLUSTRATION
83101SOCKET SUB-ASSY, COMBINATION METER BULB
TYPE A:REFER TO ILLUSTRATION, SAUDI ARABIA SPEC OR GULF SPEC,BULB;12V 1.4W
main83101-20070×3iBU142,222..ARL,EUR;BU212..LHD..40T..TD;BU211,221,YU210..CBU,IV3;BU212..RHD..DSL..(ARL,GEN);BU100,101,110,111,140,141..(DM1,T1,T2,T3,TW2)..(ARL,GEN)199808-200008
TYPE B:REFER TO ILLUSTRATION,BULB;12V 3.4W
main83101-89101×3iBU100,212..LHD..(175T,30T);BU100,111,140,141,211,222..LHD..(DM1,DM6,T3)..WT199703-199708
TYPE B:REFER TO ILLUSTRATION,BULB;24V 3.0W
ALGERIA SPEC;TYPE A:REFER TO ILLUSTRATION,BULB;24V 1.4W
83110SPEEDOMETER ASSY
CHINA SPEC & W(TACHOMETER)
W(SPEED METER,MPH & KM)
SAUDI ARABIA,GULF SPEC
main83110-37120iBU101..LHD..WT;BU101..20T..GEN..TB;BU100,111,140,141,211,221..LHD..(DM1,T3,TW1,TW2)..GEN199505-200212
WATER GAGE;WIDE ANGLE
83131BDROPER, METER
main83131-37020iBU101..175T..GEN;BU102,142..RHD..GEN;BU111,141..LHD..(DM6,T3);BU211..RHD..40T..GEN..(IV2,IV3)199901-200111
W(TACHOMETER)
83132CASE, COMBINATION METER
83134COVER, COMBINATION METER, NO.1
83138GLASS, SPEEDOMETER
83145LENS, METER, NO.1
THAILAND SPEC
main83831-37060iBU112,222..GEN;BU212..30T..TD..IV3;BU212..RHD..GEN..IV3;BU102,212..DSL..GEN..IV3199610-200112
83145ALENS, METER, NO.2
83145BLENS, METER, NO.3
83149PLATE, METER CIRCUIT
HONG KONG SPEC & W(TACHOMETER)
main83149-37420iBU212..CBU;BU100,101,111,140,141,211,221..(DM1,T1,T3,TW1,TW2)..GEN..(CBU,IV3)199505-199808
SAUDI ARABIA & GULF SPEC(WATER GAGE;WIDE ANGLE)
CHILE SEPC & W(TACHOMETER)
83149APLATE, METER CIRCUIT, NO.2
CHILE SPEC & W(TACHOMETER) OR SAUDI ARABIA & GULF SPEC(WATER GAGE;WIDE ANGLE)
CHILE SPEC
CHINA SPEC
83243BGAUGE ASSY, COMBINATION
ALGERIA SPEC
main83243-37080iBU211,221,YU210..CBU,IV3;BU100,101,111,14#..(DM1,T1,T3,TW1,TW2)..(EUR,GEN)199505-199808
main83243-37100iBU101..LHD..WT;BU101..20T..GEN..TB;BU100,111,140,141,211,221..LHD..(DM1,T3,TW1,TW2)..GEN199505-200212
WATER GAGE;WIDE ANGLE
83248CHIME, SPEED WARNING
main86640-95701iBU101..LHD..ST..TS;BU100,111,140,141,211,221..LHD..(DM1,T3,TW1,TW2)..GEN199505-199911
86650GBUZZER ASSY
main83248-20010iBU100,141..LHD..WT;BU211..LHD..40T..IV3;BU100,140,211..LHD..(T3,TW2)..(175T,25T,30T,40T)..CBU199708-200212
SAUDI ARABIA & GULF SPEC,(WATER GAGE;WIDE ANGLE)
8316120240CASE, COMBINATION METER MIRROR, NO.1
main83161-20240
8316120440CASE, COMBINATION METER MIRROR, NO.1
main83161-20440
8316120720CASE, COMBINATION METER MIRROR, NO.1
main83161-20720
8316120820CASE, COMBINATION METER MIRROR, NO.1
main83161-20820
8316165020CASE, COMBINATION METER MIRROR, NO.1
main83161-65020
8316220100CASE, COMBINATION METER MIRROR, NO.2
main83162-20100
9356755016
main93567-55016

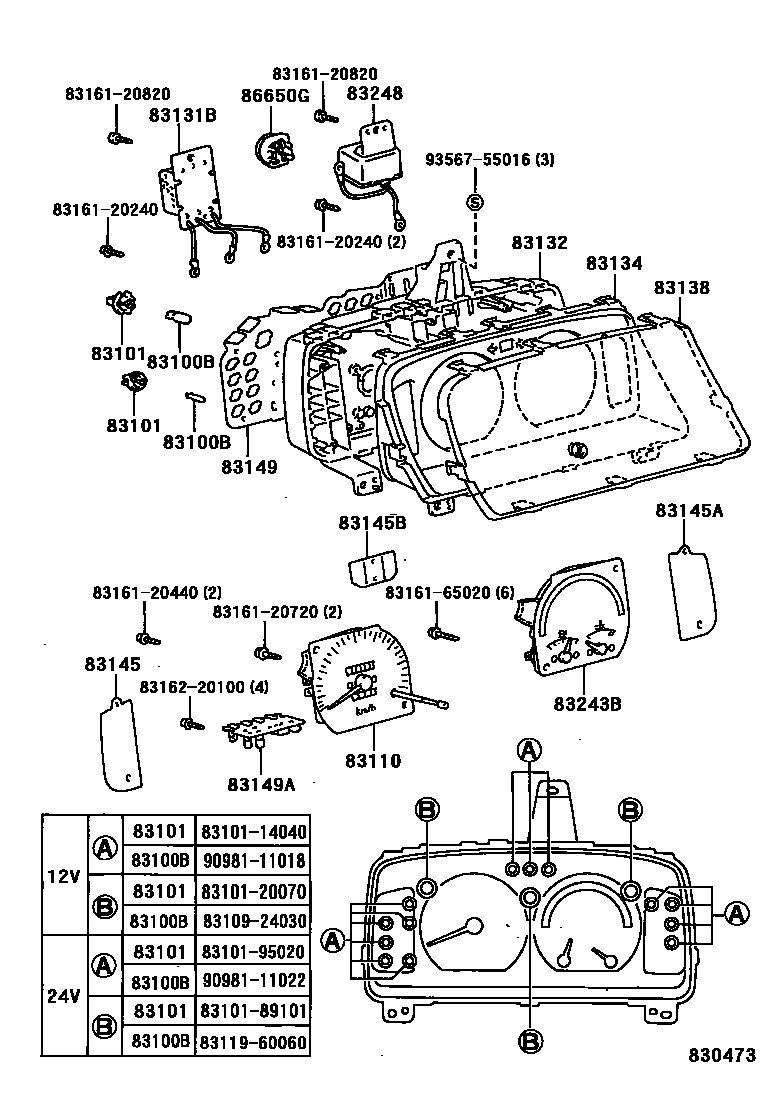

22 parts on this diagram · 8 diagrams in section
