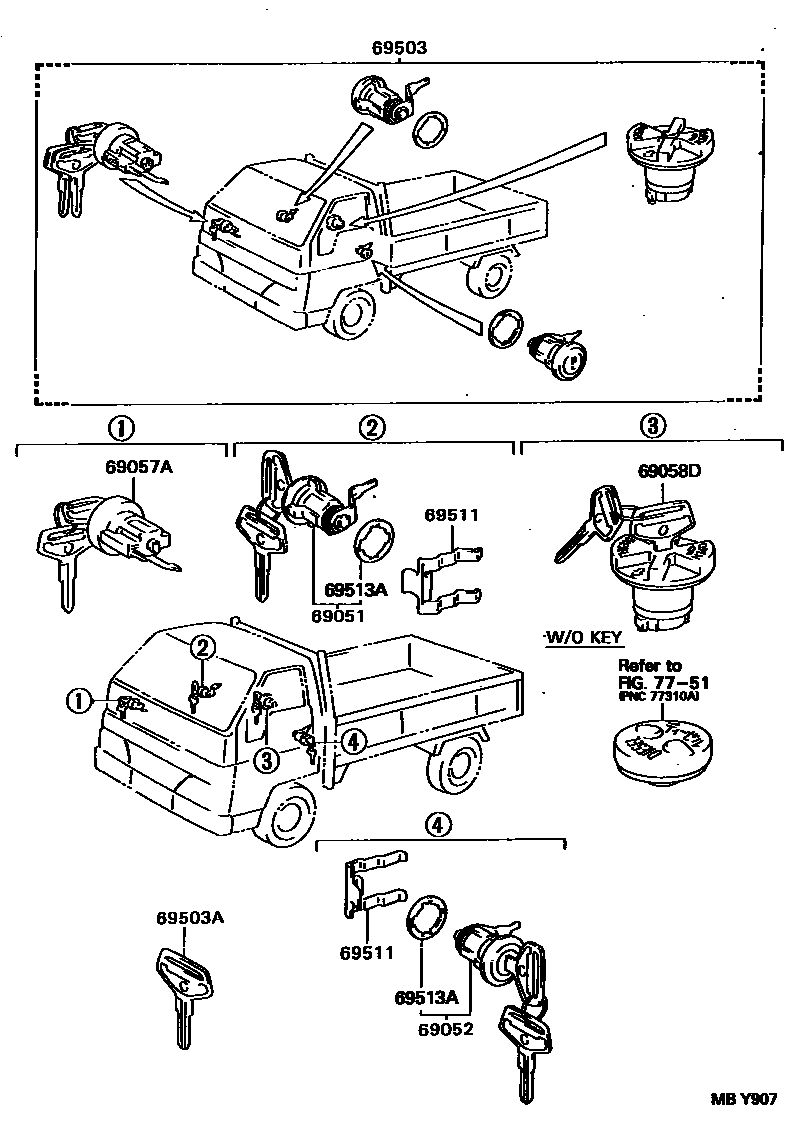

Toyota DYNA200 — LOCK CYLINDER SET

69051CYLINDER & KEY SET, DOOR LOCK, RH

main69051-37040i199505-200008

69052CYLINDER & KEY SET, DOOR LOCK, LH

main69052-37070i200008

69057ACYLINDER & KEY SET, IGNITION SWITCH LOCK

main69057-37040i199505-199908

main69057-37050i199505-200008

69058DCYLINDER & KEY SET, FUEL TANK FILLER

main69058-37050i200005

main69058-37060i199505

69503CYLINDER SET, LOCK

main69503-37090i199505-199905

main69503-37100i199505-199905

W(FUEL TANK CAP W/KEY)

main69503-37110i199505-199905

W(FUEL TANK CAP W/KEY & FUEL SUB-TANK)

main69503-37120i199505

main69503-37130i200008

W(FUEL TANK CAP W/KEY)

main69503-37140i199505-199908

W(FUEL SUB-TANK)

main69503-37150i199703

W(FUEL TANK CAP W/KEY)

69503AKEY, BLANK

main90999-00185i200008

MASTER KEY,W(*68)

main90999-00186×2i200008

MASTER KEY

69511RETAINER, FRONT DOOR LOCK CYLINDER

main69511-95400×2i199505-200008

69513APAD, DOOR CYLINDER

main69513-32010×2i199505-200008

7751FUEL TANK & TUBE

→ Go to FIG 77-51

9 parts on this diagram · 1 diagram in section

LOCK CYLINDER SET for Toyota DYNA200

This section contains 9 genuine Toyota parts for the LOCK CYLINDER SET system of the Toyota DYNA200. Key components include: CYLINDER & KEY SET, DOOR LOCK, RH, CYLINDER & KEY SET, DOOR LOCK, LH, CYLINDER & KEY SET, IGNITION SWITCH LOCK, CYLINDER & KEY SET, FUEL TANK FILLER, CYLINDER SET, LOCK.
