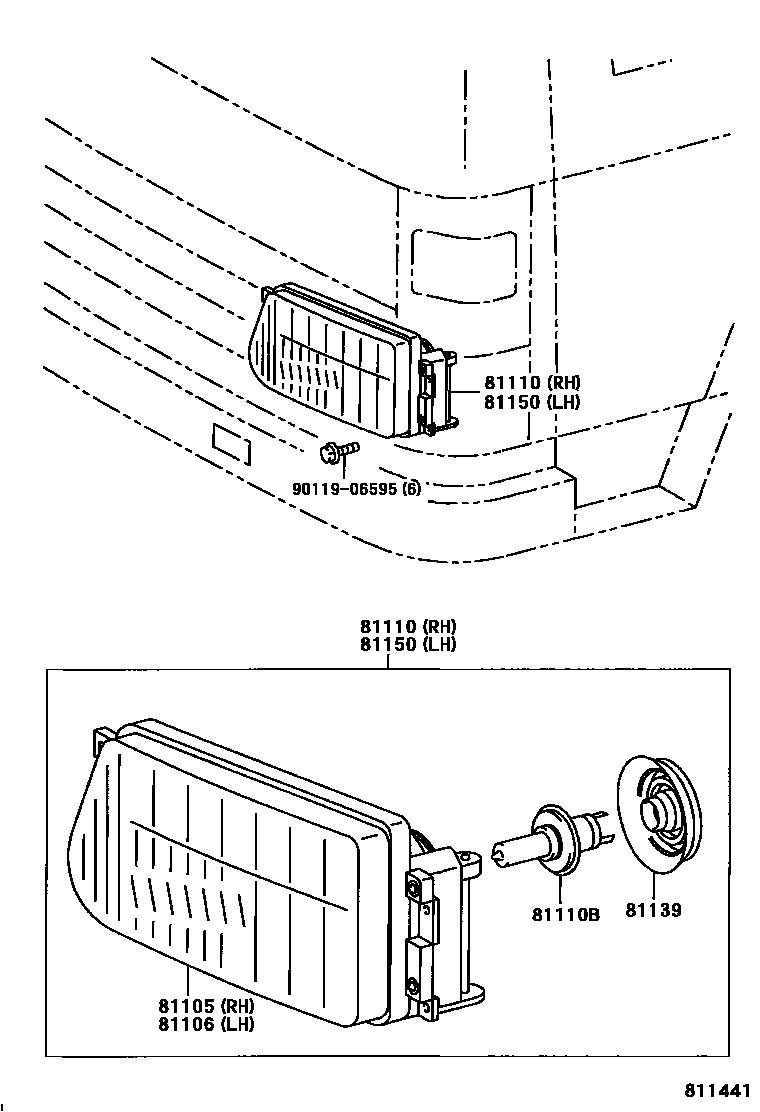

Toyota DYNA200 — HEADLAMP
81105HOUSING SUB-ASSY, HEADLAMP, RH
HONG KONG SPEC
main81105-37081iBU222..LHD..GEN;BU212..30T..TD..IV3;BU102,112,212,213,223..(DSL,TDEFI)..GEN..IV3199708
81106HOUSING SUB-ASSY, HEADLAMP, LH
main81106-37081iBU222..LHD..GEN;BU212..30T..TD..IV3;BU102,112,212,213,223..(DSL,TDEFI)..GEN..IV3199708
81110HEADLAMP ASSY, RH
main81110-37081iBU222..LHD..GEN;BU212..30T..TD..IV3;BU102,112,212,213,223..(DSL,TDEFI)..GEN..IV3199708
81110BBULB(FOR HEADLAMP, NO.1)
main90981-13013×2iBU101..IV3;BU211,221..SA;BU101..ST..CBU;BU212,221..LHD..40T;BU211..40T..GEN..IV3;BU140,141,211..LHD..(25T,30T)..GEN;BU101,111,211..LHD..(20T,40T)..CBU;BU100,141,YU210..(175T,20T,30T)..(GEN,SA)199505-199708
12V 45/40W,WHITE
12V 45/40W,YELLOW
24V 55/50W,WHITE
main90981-17019×2iBU222..GEN;BU212..30T..GEN;BU111,221..RHD..GEN;BU101,211..RHD..WT..(20T,40T)..GEN..IV3199505-199703
24V 75/70W,*HAL *WH
12V 60/55W,*HAL *WH
81139COVER, HEADLAMP SOCKET
main81139-87641×2iBU142..ARL,EUR;BU142,212..RHD..TD;BU101..RHD..ST..CBU;BU212..30T..TD..IV3;BU212..DSL..(ARL,GEN);BU100,110,141..RHD..(175T,20T,30T);BU101,211..RHD..(20T,40T)..(ARL,GEN)..IV3;BU102,112,213,222,223,RZU100..ARL,EUR,GEN199708-200008
81150HEADLAMP ASSY, LH
main81150-37081iBU222..LHD..GEN;BU212..30T..TD..IV3;BU102,112,212,213,223..(DSL,TDEFI)..GEN..IV3199708
9011906595
main90119-06595
7 parts on this diagram · 3 diagrams in section
HEADLAMP for Toyota DYNA200
This section contains 31 genuine Toyota parts for the HEADLAMP system of the Toyota DYNA200. Key components include: HEADLAMP SUB-ASSY, NO.1, HEADLAMP SUB-ASSY, NO.2, HEADLAMP SUB-ASSY, TYPE 1, LH, HEADLAMP SUB-ASSY, TYPE 2, LH, HOUSING SUB-ASSY, HEADLAMP, RH.
