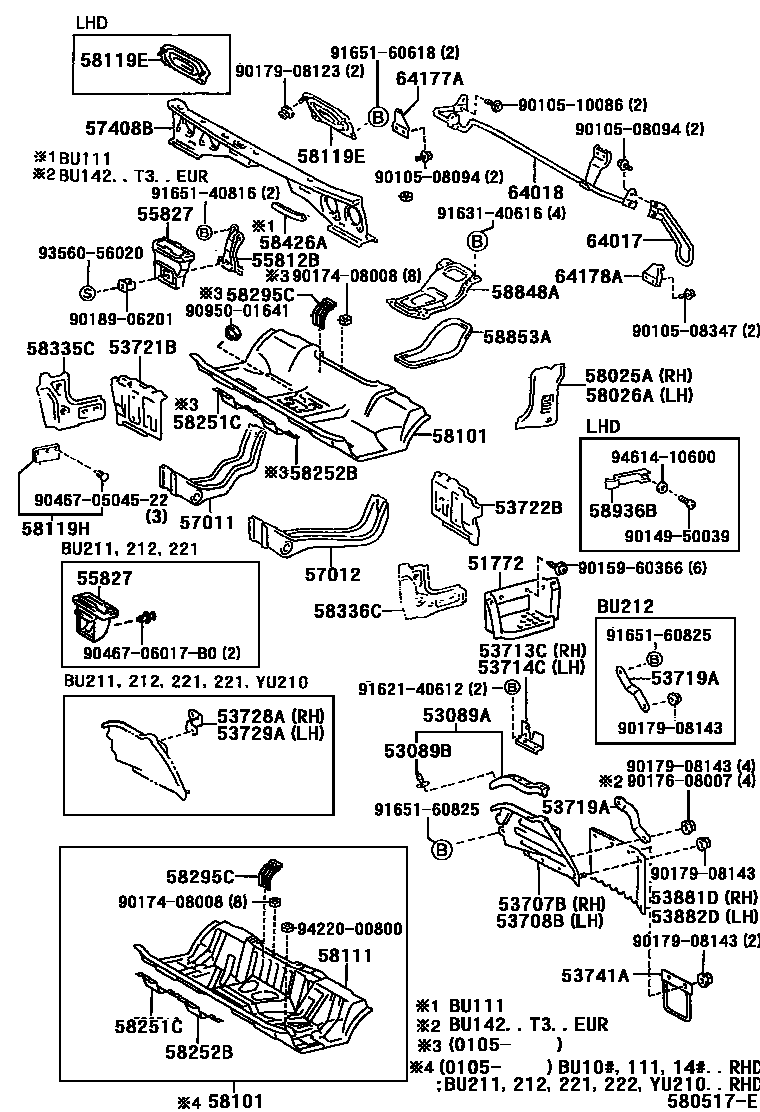

Toyota DYNA200 — FRONT FLOOR PANEL & FRONT FLOOR MEMBER

0001 1 0002 1 0003 1 0004 1

51772PLATE, STEP

main51771-37020iBU10#,11#,14#,RZU100..ARL,GEN,SA,TAIW199505

RH

main51771-37030iBU21#,22#,YU210..ARL,GEN,SA,TAIW199505-200008

RH

main51771-37040iBU140,142..EUR199505

RH

main51771-37090iBU222..EUR199902

RH

main51772-37010iBU10#,11#,14#,RZU100..ARL,GEN,SA,TAIW199505

LH

main51772-37020iBU21#,22#,YU210..ARL,GEN,SA,TAIW199505-200008

LH

main51772-37030iBU140,142..EUR199505

LH

main51772-37070iBU222..EUR199902

LH

53089AMUDGUARD SUB-ASSY, FRONT

main53089-37010×2iBU102..TAIW;BU142..T3..(20T,25T);BU100,101,11#,140,141,21#,22#,RZU100,YU210..DM1,DM6,T1,T2,T3199505-200008

main53089-37020×2iRZU100..15T;BU102,112,142..(15T,20T,30T)..GEN199703

53089BCLIP, FRONT MUDGUARD

main67868-95401×10iBU10#,11#,14#,21#,22#,RZU100,YU210..DM1,DM6,DM7,T1,T2,T3,T4199505-200008

53707BAPRON SUB-ASSY, FENDER SIDE, RH

main53707-92608iBU211,212..TW1199505

main53715-37010iBU10#,111,14#,21#,22#,RZU100,YU210..(DM1,DM6,T1,T2,T3,T4)..(ARL,GEN,SA)200008

main53715-37020iBU140,142,222..T3..EUR199505

main53715-95405iBU100,101,142..TW1,TW2199505

53708BAPRON SUB-ASSY, FENDER SIDE, LH

main53708-37030iBU100..175T199505-199507

main53708-92608iBU211,212..TW1199505

main53716-37010iBU10#,11#,14#,RZU100..(15T,20T,25T,30T)..(ARL,GEN,SA,TAIW)199505

main53716-37030iBU140,142..T3..EUR199505

main53716-37040iBU21#,22#,YU210..T3..(ARL,GEN,SA,TAIW)199505-200008

main53716-37120iBU222..EUR199902

53713CEXTENSION, FRONT FENDER APRON, FRONT RH

main53713-37010iBU10#,11#,14#,RZU100..DM1,DM6,DM7,T1,T2,T3,T4199505

53714CEXTENSION, FRONT FENDER APRON, FRONT LH

main53714-37010iBU10#,11#,14#,RZU100..DM1,DM6,DM7,T1,T2,T3,T4199505

53719ABRACE, FENDER APRON

main53719-37010iBU10#,11#,14#,RZU100..DM1,DM6,DM7,T1,T2,T3,T4199505

main53719-37020iBU100,101,142..TW1,TW2199505

RH

main53719-92600iBU100,101,142..TW1,TW2199505

LH

main53719-92603×2iBU211,212..TW1199505

main53719-95403×2iBU211,221..40T..SA199505-200008

53721BAPRON SUB-ASSY, FENDER SIDE, RH

main53721-37010iBU21#,22#;BU10#,110,111,14#,RZU100,YU210..RHD199505-200008

main53721-37030iBU10#,111,112,14#,RZU100..LHD199505

53722BAPRON SUB-ASSY, FENDER SIDE, LH

main53722-37010iBU211,212,221,222,YU210;BU10#,111,112,14#,213,223,RZU100..LHD199505-200008

main53722-37020iBU10#,110,111,14#,RZU100..RHD199505

53728ABRACKET, FENDER APRON, RH

main53728-37010iBU211..30T..SA;BU211,221..T3..GEN;BU212,213,222,223,YU210..T3199505

main53728-95400iBU211,221..40T..SA199505-200008

53729ABRACKET, FENDER APRON, LH

main53729-95400iBU21#,22#,YU210..T3199505-200008

53741APLATE, FENDER APRON REINFORCE, RH

main53741-37010iBU212,222..T3..ARL199505

53881DMUDGUARD, FRONT RH

main53881-37010iBU10#,11#,14#,RZU100..DM1,DM6,DM7,T1,T2,T3,T4199505

main53881-37020iBU21#,22#,YU210..T3199505-200008

main53881-92600iBU211,212..TW1199505

main53881-95401iBU100,101,142..TW1,TW2199505

53882DMUDGUARD, FRONT LH

main53881-37010iBU10#,11#,14#,RZU100..DM1,DM6,DM7,T1,T2,T3,T4199505

main53881-37020iBU21#,22#,YU210..T3199505-200008

main53881-92600iBU211,212..TW1199505

main53881-95401iBU100,101,142..TW1,TW2199505

55812BBRACKET, VENTILATOR DUCT

main55809-37010iBU102,142..RHD..GEN200007-200008

main55812-37010iBU142..25T..GEN;BU100,101,111,140,141..(DM1,T1,T3,TW2)..GEN199505

55827DUCT, VENTILATOR AIR GUIDE

main55827-37010iBU10#,111,14#..(DM1,T1,T3,TW2)..GEN200008

main55827-37020iBU212..RHD..GEN..IV3;BU211,221..RHD..GEN..(CBU,IV3)199808

main55827-37030iBU211,221..LHD;BU212..LHD..40T..TD199505

main55827-37040iBU102,142..RHD..GEN200007-200008

57011MEMBER SUB-ASSY, FLOOR, RH

main57011-37010iBU100..ARL;BU102,110,112,142,RZU100;BU100,111..(DM6,TW2)..GEN199803-199812

main57011-37020iBU142..TW1;BU100..CBU;BU100..GEN..IV3;BU101,111,140,141..(DM1,T1,T3)..GEN199505-199803

main57011-37030iBU21#,22#..T3..(ARL,EUR,GEN)199802

sub57011-37110

main57011-37100iBU10#,11#,14#,RZU100..(DM1,DM6,DM7,T1,T2,T3,T4,TW2)..(ARL,EUR,GEN)199905

main57011-37130iBU101,141..SA199802

57012MENBER SUB-ASSY

main57012-37010iBU142..TW1199907

main57012-37020iBU142..TW1;BU100..CBU;BU100..GEN..IV3;BU101,111,140,141..(DM1,T1,T3)..GEN199505-199803

main57012-37030iBU21#,22#,YU210199505-199610

main57012-37060iBU211,212..TW1199708

W/O(*80)

sub57012-37110

main57012-37100iBU10#,11#,14#,RZU100..(DM1,DM6,DM7,T1,T2,T3,T4,TW2)..(ARL,EUR,GEN)199905

main57012-37130iBU101,141..SA199802

57408BMEMBER SUB-ASSY, FRONT FLOOR CROSS

main57408-37011iBU212..30T..TD..IV3;BU222..LHD..(GEN,TAIW);BU212,213,223..LHD..(DSL,TDEFI)199505

main57408-37021iBU111..RHD;BU101..RHD..WT..IV3199505-199610

HONG KONG SPEC & W(FRONT HEATOR)

main57408-37031iBU211,221..RHD..40T..GEN..IV3199505-199703

HONG KONG SPEC & W(FRONT HEATOR)

main57408-37051iBU211..IV2;BU211,212,221,222,YU210..SA199505

W(FRONT HEATOR OR BOOSTVENTILATOR)

main57408-37070iBU101,111,140,141..RHD199505-199610

W(FRONT HEATOR OR BOOSTVENTILATOR)

sub57408-25090

sub90333-25001

main57408-37080iBU100,101,111,14#..LHD..GEN199505

W(FRONT HEATOR OR BOOSTVENTILATOR)

main57408-37090iBU142..EUR199708

main57408-37100iBU211,221..LHD;BU212..LHD..40T..TD199505

W(FRONT HEATOR OR BOOSTVENTILATOR)

main57408-37110iBU111..RHD;BU101..RHD..WT..IV3199505-199610

HONG KONG SPEC

main57408-37120iBU101,111,140,141..RHD199505-199610

sub57408-25100

sub90333-25001

main57408-37130iBU102,112,RZU100..LHD199708

main57408-37140iBU100,101,111,14#..LHD..(DM1,T3,TW2)..GEN199505

main57408-37150iBU211,221..RHD..40T..GEN..IV3199505-199703

HONG KONG SPEC

main57408-37170iBU211,221..RHD..GEN..(CBU,IV3)199505

main57408-37180iBU211,221..LHD;BU212..LHD..40T..TD199505

main57408-37200iBU101..ST..CBU;BU101,141..RHD..(20T,30T)..GEN..IV3199708-199901

W(FRONT HEATER)

sub91651-40616

main57408-37201iBU101..T1..CBU;BU101..RHD..GEN..IV3;BU100,110,141,142,RZU100..RHD..(175T,20T,30T)..(DSL,EFI)199901

W(FRONT HEATER & POWER STEERING)

main57408-37210iBU101..ST..CBU;BU101,141..RHD..(20T,30T)..GEN..IV3199708-199901

THAILAND SPEC

sub91651-40616

main57408-37211iBU102,142..RHD..GEN200007

main57408-37220iBU101..SA199802-199901

sub91651-40616

main57408-37221iBU101,111,140,141..RHD..(GEN,SA)199901

W(FRONT HEATOR OR BOOSTVENTILATOR)

main57408-37230iBU101,111,140,141..RHD..GEN199610-199901

sub91651-40616

main57408-37231iBU101,111,140,141..RHD..GEN199901

main57408-37250iBU222..EUR199902

58025APANEL SUB-ASSY, FLOOR SIDE RAIL, FR RH

main58025-37011iBU100,101,142,211,212..TW1,TW2199505

main58271-37011iBU10#,111,14#,21#,22#,RZU100,YU210..DM1,DM6,T1,T2,T3,T4200008

58026APANEL SUB-ASSY, FLOOR SIDE RAIL, FR LH

main58026-95400iBU100,211..(TW1,TW2)..GEN199505

SAUDI ARABIA & GULF SPEC

main58026-95401iBU100,101,142,211,212..TW1,TW2199505

main58037-37010iBU212,222..T3..DSL..(ARL,GEN,TAIW)199505

main58272-37010iBU212..LHD..TD;BU222..EUR,GEN,SA;BU212..30T..TD..CBU;BU212..RHD..(25T,40T)..(GEN,SA);BU10#,11#,14#,211,213,221,223,RZU100,YU210..DM1,DM6,DM7,T1,T2,T3,T4199505-200008

main58272-37030iBU101..T3..ST..TS;BU100,111,140,141,211,221..LHD..(DM1,T3)..GEN199505-199911

SAUDI ARABIA & GULF SPEC

58101PAN SUB-ASSY, FRONT FLOOR

main58101-37040iBU100,101,110,111,14#..RHD199505-199610

sub55352-37010

main58101-37041iBU100,101,110,111,14#,RZU100..RHD199610-199708

main58101-37044iBU100,101,110,111,14#,RZU100..RHD..(DSL,EFI)199708

sub58111-37043

sub53724-95010

sub90174-06002

sub90174-08008

main58101-37050iBU10#,111,112,14#..LHD199505-199610

sub55352-37010

main58101-37051iBU10#,111,112,14#..LHD199610-199708

main58101-37054iBU10#,111,112,14#,RZU100..LHD199708

sub58111-37054

sub58295-37030

sub90174-06002

sub90174-08008

main58101-37060iBU21#,22#..LHD..DSL199505-199708

W(FRONT HEATOR OR BOOSTVENTILATOR)

main58101-37061iBU211,221..LHD..T3199708

W(FRONT HEATOR OR BOOSTVENTILATOR)

main58101-37063iBU211,221..LHD199708

W(FRONT HEATOR OR BOOSTVENTILATOR);CHINA SPEC

sub58111-37063

sub53724-95010

sub58126-37010

sub58295-37050

sub90174-06002

sub90174-08008

main58101-37070iBU211,221..LHD199505-199708

W(P.T.O. & BOOSTVENTILATOR);W(P.T.O. & FRONT HEATOR)

main58101-37071iBU211..LHD..T3199703

W(P.T.O. & BOOSTVENTILATOR);W(P.T.O. & FRONT HEATER)

main58101-37073iBU211,221..LHD199708

W(P.T.O. & BOOSTVENTILATOR);W(P.T.O. & FRONT HEATER);CHINA SPEC

sub58111-37073

sub53724-95010

sub58126-37010

sub58295-37050

sub90174-06002

sub90174-08008

main58101-37100iBU212,222..LHD..GEN199505-199708

W(FRONT HEATOR OR BOOSTVENTILATOR)

main58101-37103iBU213,223;BU222..EUR;BU212..40T..DSL..GEN199806

sub58111-37063

sub53724-95010

sub58126-37010

sub58227-37020

sub58295-37050

sub90174-06002

sub90174-08008

main58101-37110iBU21#,22#,YU210..RHD199505-199708

W(FRONT HEATOR OR BOOSTVENTILATOR)

main58101-37111iBU211,221,YU210..SA;BU212,222..RHD..GEN..IV3;BU212..RHD..T3..DSL..(ARL,GEN)199708

W(FRONT HEATOR OR BOOSTVENTILATOR)

main58101-37113iBU222..ARL,GEN;BU211,221,YU210..RHD;BU212..RHD..GEN..IV3;BU212..DSL..(ARL,GEN)200008

W(FRONT HEATOR OR BOOSTVENTILATOR);KENYA SPEC

sub53724-95010

sub90174-06002

sub90174-08008

main58101-37120iBU212..LHD..40T199505-199708

W(P.T.O. & BOOSTVENTILATOR);W(P.T.O. & FRONT HEATOR)

main58101-37123iBU212..LHD..40T..TD199708

W(P.T.O. & BOOSTVENTILATOR);W(P.T.O. & FRONT HEATER)

sub58111-37073

sub53724-95010

sub58126-37010

sub58227-37020

sub58295-37050

sub90174-06002

sub90174-08008

main58101-37140iBU211,221..RHD..GEN199505-199708

main58101-37143iBU212..RHD..GEN..IV3;BU211,221..RHD..GEN..(CBU,IV3)199808

sub58111-37103

sub53724-95010

sub90174-06002

sub90174-08008

main58101-37150iBU211,221..LHD199505-199708

main58101-37153iBU211,221..LHD199708

sub58111-37113

sub53724-95010

sub58126-37010

sub58295-37050

sub90174-06002

sub90174-08008

main58101-37160iBU212..LHD..40T199505-199708

main58101-37163iBU212..LHD..40T..TD199708

sub58111-37113

sub53724-95010

sub58126-37010

sub58227-37020

sub58295-37050

sub90174-06002

sub90174-08008

main58101-37170iBU211,221..LHD199505-199708

W(P.T.O.)

main58101-37173iBU211,221..LHD199708

W(P.T.O.)

sub58111-37123

sub53724-95010

sub58126-37010

sub58295-37050

sub90174-06002

sub90174-08008

main58101-37180iBU212..LHD..40T199505-199708

W(P.T.O.)

main58101-37183iBU212..LHD..40T..TD199708

W(P.T.O.)

sub58111-37123

sub53724-95010

sub58126-37010

sub58227-37020

sub58295-37050

sub90174-06002

sub90174-08008

58111PAN, FRONT FLOOR

main58111-37210iBU10#,111,14#..RHD200105

sub58111-37043

sub90950-01731

main58111-37230iBU211,212,221,222,YU210..RHD200105

58119ECOVER, FRONT FLOOR SIDE, FRONT

main50819-37010iBU101,102,111,14#..RHD..GEN199505

main50819-37020iBU100,101,111,14#..LHD..(DM1,T3,TW2)..GEN199505

58119HCOVER, FRONT FLOOR SIDE, FRONT

main58119-95400×2iBU10#,111,14#,21#,22#,RZU100,YU210200008

58251CBRACE, FLOOR PANEL, FRONT RH

main58251-37011iBU10#,111,14#,RZU100200105

main58251-37021iBU21#,22#,YU210200105

58252BBRACE, FLOOR PANEL, FRONT LH

main58252-37011iBU10#,111,14#,RZU100200105

main58252-37021iBU21#,22#,YU210200105

58295CBRACKET, FLOOR SHIFT LEVER, NO.1

main58295-37020iBU10#,111,14#..RHD200105

main58295-37040iBU211,212,221,222,YU210..RHD200105

58335CPLATE, FLOOR SIDE, FRONT RH

main58335-37010iBU10#,111,14#,21#,22#,RZU100,YU210200008

58336CPLATE, FLOOR SIDE, FRONT LH

main58336-37010iBU10#,111,14#,21#,22#,RZU100,YU210200008

58426APROTECTOR, ENGINE SERVICE HOLE

main58426-28020iBU111..LHD..CBU199505

58848ACOVER, SHIFT LEVER HOLE

main58848-37020iBU101..SA;BU100,141..(ARL,SA)..TB199708-199905

main58848-37030iBU10#,111,112,14#,RZU100..LHD199505

main58848-37040iBU21#,22#,YU210..RHD199505-199708

main58848-37050iBU222..EUR;BU212,213,223..(DSL,TDEFI)..GEN..IV3199708

58853APACKING, SHIFT LEVER HOLE

main58853-37010iBU10#,11#,14#,21#,22#,RZU100,YU210199505-199708

58936BBAND, ENGINE SERVICE HOLE COVER SUPPORT

main58930-95700-B0iBU10#,111,112,14#,21#,22#..LHD199505

GRAY,TRIM1#

main58936-95J02-C0iRZU100;BU10#,110,111,14#,211,212,221,222,YU210..RHD199505

BLACK,TRIM1#

64017REINFORCE SUB-ASSY, REAR MOUNTING BRACKET

main64017-95403iBU101..T3..ST..TS;BU142..T3..(ARL,EUR);BU140,141,211,221..LHD..T3;BU101..RHD..WT..(ARL,GEN)..IV3;BU212,222,RZU100..(EUR,GEN)..IV3;BU100,102,11#,213,223..DM1,DM7,T2,199708-199911

64018BAR SUB-ASSY, BODY

main64018-37020iBU111..RHD;BU101..RHD..WT..IV3199511-199703

W(FRONT SEAT BELT=ELR)

main64018-37030iBU212,222..TAIW199505-199610

main64018-37040iBU100,111,140,141..LHD..(DM1,T3,TW2)..GEN199511

W(FRONT SEAT BELT=ELR)

main64018-37050iBU212,213,222,223..LHD..(EUR,GEN)199505

main64018-37060iBU142..T3..EUR;BU102,112..DSL..GEN199605

main64018-37120iRZU100..15T199908

main64018-95411iBU211,221..RHD..40T..GEN..IV3199505-199703

W(FRONT SEAT BELT=ELR)

64177ASTOPPER, REAR MOUNTING BRACKET, RH

main64177-37020iBU102,112,RZU100..LHD199703

main64177-95402iBU100,111,140,141..LHD..(DM1,T3)..GEN199505-199511

SAUDI ARABIA & GULF SPEC & W(TILT CAB)

main64177-95403iBU212,222..GEN..IV3;BU211,221..RHD..40T..GEN..IV3199703-199708

64178ASTOPPER, REAR MOUNTING BRACKET, LH

main64178-37020iBU102,112,RZU100..LHD199703

main64178-95404iBU101..T3..ST..TS;BU142..T3..(ARL,EUR);BU100,110,111,RZU100..RHD..WT;BU101..RHD..WT..(ARL,GEN)..IV3199703-199911

main64178-95405iBU212,222..LHD199505-199703

W(FRONT SEAT BELT=ELR)

9010508094

main90105-08094

9010508347

main90105-08347

9010510086

main90105-10086

9014950039

main90149-50039

9015960366

main90159-60366

9017408008

main90174-08008

9017608007

main90176-08007

9017908123

main90179-08123

9017908143

main90179-08143

9018906201

main90189-06201

904670504522

main90467-0504522

9046706017B0

main90467-06017B0

9095001641

main90950-01641

9162140612

main91621-40612

9163140616

main91631-40616

9165140816

main91651-40816

9165160618

main91651-60618

9165160825

main91651-60825

9356056020

main93560-56020

9422000800

main94220-00800

9461410600

main94614-10600

60 parts on this diagram · 4 diagrams in section
